Shantui Bulldozer SD13R

Engine Power: 105kW or 108kw/1900rpm
Engine Model: Shangchai SC8D143G2B1 or SC8DK
Blade Capacity: R Blade-6.9M3
Track Shoes Width: 460mm
Overall Weight: 15,200kg (Standard)
Applicable Working Conditions: Bulldozing
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

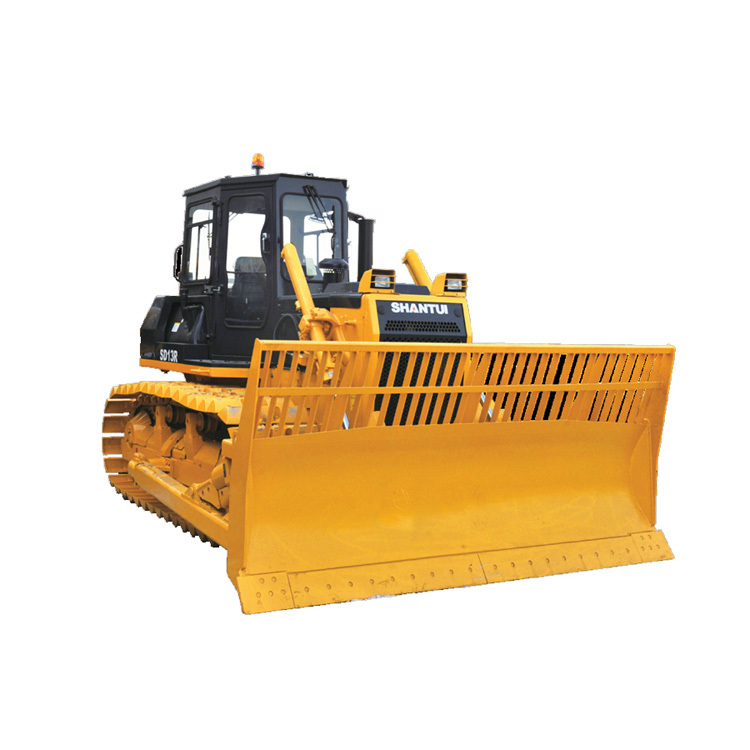

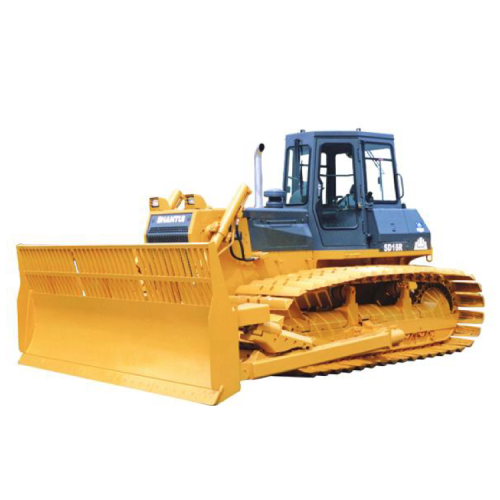

SHANTUI BULLDOZER SD13R

130hp Sanitation Bulldozer



Engine Power: 105kW or 108kw/1900rpm

Engine Model: Shangchai SC8D143G2B1 or SC8DK

Blade Capacity: R Blade-6.9M3

Track Shoes Width: 460mm

Overall Weight: 15,200kg (Standard)

Applicable Working Conditions: Bulldozing





Shantui SD13R sanitation bulldozers are suitable for domestic city sanitation treatment requirements and used for filling, leveling, compacting and piling of the wasteyard, as well as for dragging of the waste troughs and the treatment tanks. Landfill Bulldozer Shantui SD13R Small Crawler Dozer for Sale



Power System

● Strong power, high efficiency and energy-saving, and low maintenance cost.

● The rated power reaches 105kW, featuring high torque reserve coefficient.

● The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.





Hydraulic system for working equipments

The mainstream 14MPa work hydraulic system enjoys the steady work and the overloading protection, greatly reducing the ratio of failures occurring to the hydraulic elements



Structure

The main frame is of steel plates welded into an integral box. In addition, this main frame is welded with the rear axle case and thus enjoys higher impact load, flexure and torsion, with the quality welding seam ensuring the main frame has the life cycle.



Maintenance

● The eye-catching signs say accurately when to maintain the machine. In addition, this battery is maintenance-free. In addition, the open-type hood could have the inside parts exposed as much as possible, easily realizing the inspection and the maintenance.

● This maintenance cost is much lower than others due to the reliability and thus the long Mean Time Between Failures (MTBF).

● Shantui perfect service network, as well as timely, thoughtful and warmhearted service, could give your assurance to use this machine, satisfying the expectancy for Shantui products

PARAMETER

Parameter name

SD13C

(Coal version)

Performance parameters



Operating weight (Kg)

13900

Ground pressure (kPa)

54.6

Engine



Engine model

SC8D143G2B1China-II/SC8DKChina-III

Rated power/rated speed(kW/rpm)

105/1900

Overall dimensions



Overall dimensions of machine (mm)

4492*3700*2950

Driving performance



Forward speed (km/h)

F10-3.2 F2:0-5.9 F3:0-9.8

Reversing speed (km/h)

R1:0-3.9 R2:0-7.1 R3:0-11.9

Chassis System



Center distance of track (mm)

1880

Width of track shoes (mm)

560

Ground lengthmm

2365

Tank capacity



Fuel tank (L)

300

Working device



Blade type

Coal blade

Digging depth (mm)

590

Ripper type

——

Ripping depth (mm)

——
