Shantui Bulldozer SD13S

Engine Power: 105kW/1900rpm
Engine Model: Shangchai SC8D143G2B1 or SC8DK
Blade Capacity: Straight Titling Blade-2.7M3
Track Shoes Width: 460mm
Overall Weight: 14,900kg (Standard)
Applicable Working Conditions: Bulldozing, digging, landfill, and other
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

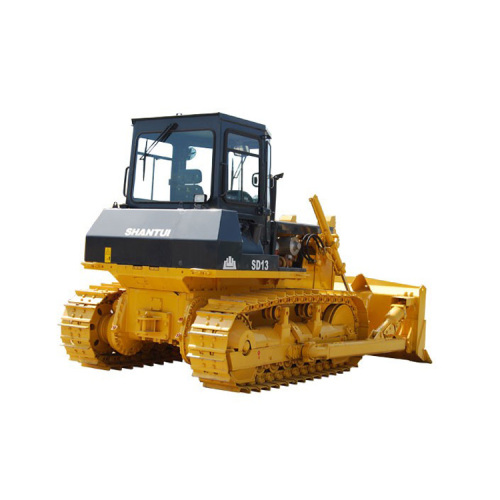

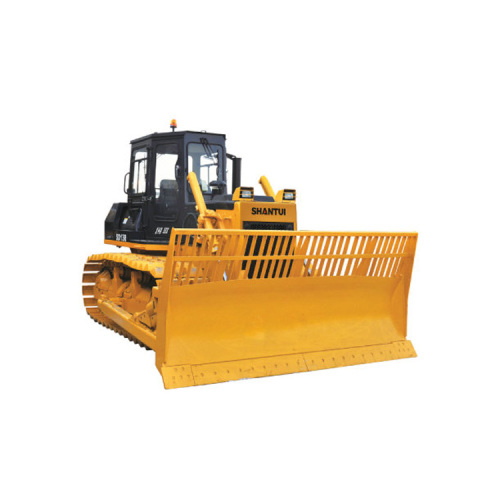

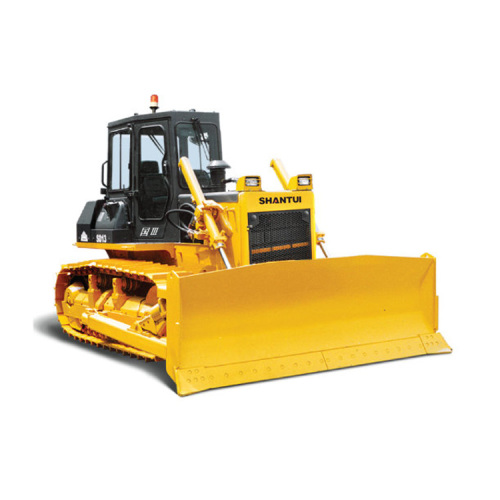

SHANTUI BULLDOZER SD13S

130hp Swamp Wetland Bulldozer



Engine Power: 105kW/1900rpm

Engine Model: Shangchai SC8D143G2B1 or SC8DK

Blade Capacity: Straight Titling Blade-2.7M3

Track Shoes Width: 460mm

Overall Weight: 14,900kg (Standard)

Applicable Working Conditions: Bulldozing, digging, landfill, and other bulk operations.





Shantui SD13S gets mid-range volume jobs done in swampy terrain in record time. A smaller version of our best-selling SD16 line, the SD13 delivers all the durability and reliability of its larger cousin series. With a high power, high efficiency, turbo charged engine featuring a large torque reserve coefficient, the 130hp swampy bulldozer SD13S is ready for work. Its extended track ensures low ground pressure, high reliability and strong traction while the comfortable wide visibility hexahedron cab and integrated dashboard design help keep operator productivity at peak levels.

SD13S wetland bulldozers are developed according to the swamp and the wetland conditions to have the hydraulic drive system with the advanced hydraulic technologies, the reasonable structure, the steady performance, the flexible controls, becoming the ideal for construction in swamp and muddy places. Wet Bulldozer Shantui SD13S Cheap Bulldozer wet dozer for Sale



Power System

● Strong power, high efficiency and energy-saving, and low maintenance cost.

● The rated power reaches 105kW, featuring high torque reserve coefficient.

● The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.



Chassis system

● The suspension system made of the splayed beam and the balance beam and connecting the bulldozer frame and the running system could transfer the work load and the impact load to the main frame, greatly improving the small-scale bulldozer stability under the complex conditions.

● When the construction site is uneven, the frame shall do the luffing or bobbing, relieving the vibration and protecting the machine.



Accessories for working parts

● The standard straight shovels have the excellent durability due to the high cutting force, high-strength structure and high-performance material and thus are available for all tough environments. In addition, the high-capacity shovels are suitable for all kinds of earthworks. Besides, the angle shovels, U-shovels and R-shovels are available to users.

● Three-tooth ripper is used to loosen the soil layers such as the clay and the frozen soil. The work efficiency and the super penetration are guaranteed with the strength beam, the frame and the tempered tooth bar and tip



Working Performance



PARAMETER

Parameter name

SD13L

(Wetland version)

Performance parameters



Operating weight (Kg)

14900

Ground pressure (kPa)

38.4

Engine



Engine model

SC8D143G2B1China-II/SC8DKChina-III

Rated power/rated speed(kW/rpm)

105/1900

Overall dimensions



Overall dimensions of machine (mm)

4492*3510*3000

Driving performance



Forward speed (km/h)

F10-3.2 F2:0-5.9 F3:0-9.8

Reversing speed (km/h)

R1:0-3.9 R2:0-7.1 R3:0-11.9

Chassis System



Center distance of track (mm)

1880

Width of track shoes (mm)

700

Ground lengthmm

2365

Tank capacity



Fuel tank (L)

300

Working device



Blade type

Straight tilting blade

Digging depth (mm)

590

Ripper type

——

Ripping depth (mm)

——
