HBXG Bulldozer SD6

Working weight of the machine: 16500 kg (without soil loosening device)
Net power: 119/1900 kW/ RPM
Bulldozer capacity: 4.5m3
Engine model: Shangchai C6121ZG72B
Power: 119/1900 kW/RPM
Applicable Working Conditions: Bulldozing, digging, landfill, and
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

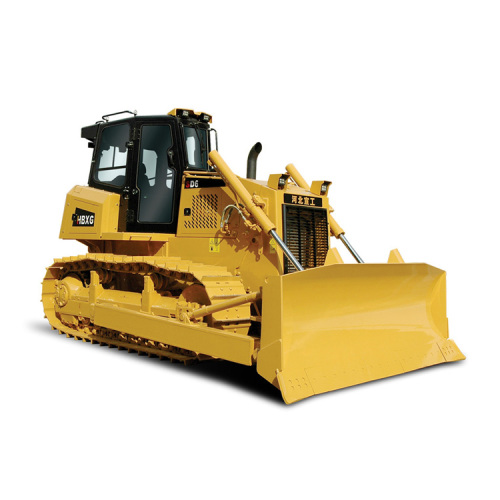

HBXG Bulldozer SD6

HBXG SD6 China 160 hp Dozer Tractor Price for Sale



Working weight of the machine: 16500 kg (without soil loosening device)

Net power: 119/1900 kW/ RPM

Bulldozer capacity: 4.5m3

Engine model: Shangchai C6121ZG72B

Power: 119/1900 kW/RPM

Applicable Working Conditions: Bulldozing, digging, landfill, and other bulk operations.

Models for different condition: SD6, SD6G,SD6GLGP,SD6GHW,SD6N







Shangchai C6121ZG72B engine, torque reserve coefficient, hydraulic machinery torque converter wide efficient area, high efficiency. Steering, braking linkage, braking hydraulic power assistance; The gear of the final transmission system adopts large displacement design, which has high bearing capacity and long service life



Overall dimensions:

Machine length:: (mm)5037

Width of machine: (mm)3297

Machine height: (mm)3077

Minimum Ground Clearance: (mm)445

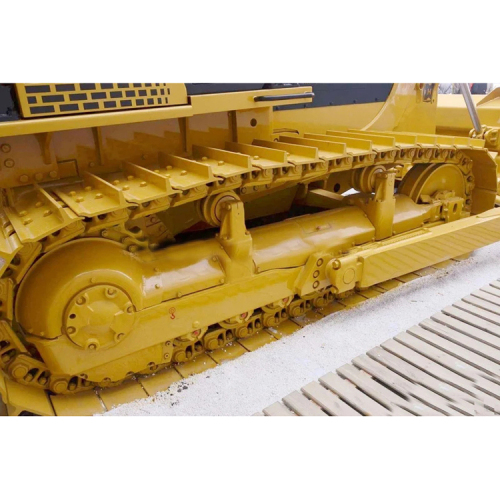

Walking mechanism:

Number of sprockets: (single side) (2)

Number of supporting wheels: (single side) (7)

Track pitch: (mm)203

Width of crawler plate: (mm)560

Track Gauge: (mm)1880

Ground specific voltage: (kPa)55.23



HBXG bulldozer SD6 is a new type of fully hydraulic bulldozer, which adopts double circuit electrically controlled hydrostatic drive system, electrically controlled closed-heart load sensing hydraulic system, PAT power Angle shovel, and automatically controlled independent cooling system. Full power matching, flexible operation, low fuel consumption, with the function of infinitely variable speed, power and in-place steering, electric proportional control of walking and working devices accurate and comfortable operation; Man-machine interactive instrument display, intelligent service system, fully sealed air-conditioned cab, modular design, easy maintenance.HBXG bulldozer SD6is an ideal machine for fine or heavy duty operations such as excavation, back filling, modeling and leveling of earth and stone materials in ports, transportation, golf courts, electric power and towns.







Engine

Model

ShangChai  C6121ZG55

Rated power (kW)

119

Rated speed (r/min)

1900

Engine fuel consumption rate

215g/kW.h

Hydraulic system of work equipment

Maxi working oil pressure

15.5 Mpa

Rated flow (L/min)

178L/min

Track

Track pitch (mm)

216

Track width (mm)

560

No. of track shoes(each side)

Number of supporting sprockets (on each side) :2

Number of supporting heavy wheels(on each side) :7

Length of track on ground (mm)

1880

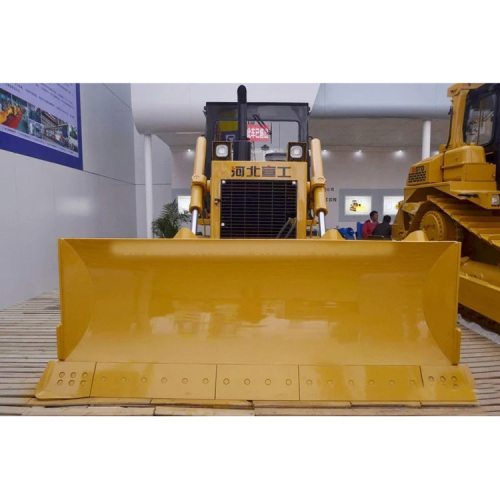

Dozer blade

Bulldozing shovel type

straight shovel

Pushing shovel width(mm)

  3297

Maximum depth of soil cutting (mm)

592

Overall size of the machine(mm)

5037*3297*3077

The use quality of the whole machine(kg)

16500kg
