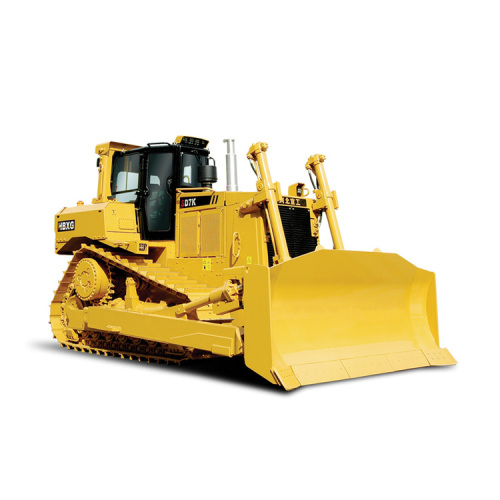

HBXG Bulldozer SD7 SD7N

Engine Power: 185/2100rpm
Engine Model: Cummins NT855 - C280S10
Walking mechanism:
Width of track plate :(mm)910
Track grounding length :(mm)3185
Track gauge :(mm)2235
Ground specific voltage :(kPa)45.5
Overall dimensions:
Machine length :(mm)5982
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

HBXG SD7 SD7N Bulldozer



Engine Power: 185/2100rpm

Engine Model: Cummins NT855 - C280S10

Walking mechanism:

Width of track plate :(mm)910

Track grounding length :(mm)3185

Track gauge :(mm)2235

Ground specific voltage :(kPa)45.5

Overall dimensions:

Machine length :(mm)5982

Width of machine (mm)4382

Machine height :(mm)0.482

Minimum ground clearance :(mm)484

Dozer shovel device:

Width *: Height :(mm)4382

Maximum lifting height :(m)1170

Maximum descent height :(mm)635

Capacity of shovel knife :(m3)5.8



Models for different condition: SD7, SD7N, SD7NHW, SD7LGP





HBXG SD7N bulldozer is a crawler bulldozer with high drive wheel, hydraulic mechanical transmission, elastic suspension and hydraulic control. Power external shunt type hydraulic machinery torque converter, planetary power shift gearbox. Pilot controlled working unit hydraulic system. The modular design of the whole machine is the most prominent structural characteristics, the operation system is light, labor-saving, accurate, and the use of electronic monitoring system. It can be equipped with a variety of working devices and auxiliary devices. It is the ideal machinery for a variety of large earthwork construction.

High Track Bulldozer Manufacture HBXG SD7 SD7N Bulldozer Construction Vehicles for Sale.



Power system

Cummins (Weichai) electronic control engine, emissions meet the national non-road machinery Ⅲ stage emissions requirements, intelligent and efficient, parts versatility is strong, low maintenance costs.



The hydraulic machinery torque converter adopts external shunt-mechanical output and hydraulic output. The hydraulic transmission can automatically adapt to the change of load and the mechanical transmission has good performance, which improves the transmission efficiency.



Power shift gearbox adopts planetary wheel structure, high transmission efficiency. Transmission clutch adopts multi - disc wet, oil - pressure combination, spring separation, pressure oil lubrication and cooling clutch.



Steering and braking clutches are free of charge, wet multi - disc clutches. Brake clutch is often combined, steering clutch is often separated. The design has the lock brake device, when starting the engine, the whole machine keeps the brake state, which enhances the safety of the whole machine.



The final transmission is a two-stage planetary reducer, mounted on the outside of the steering and braking clutch, with combined chain teeth, compact structure. It is not necessary to open the crawler and walking frame when the final transmission is maintained, and it is convenient to disassemble and repair.











model

SD7N standard type

Working weight-traction frame (kg)

24800

Working weight-soil loosening (kg)

28700

Length × width × height-rear traction frame

6043*3552*3402

Length × width × height-scarifier

7651*3552*3402

Minimum turning radius (mm)

4720

Ground clearance (mm)

404

Ground pressure (kPa)

74.9

Forward speed (Ⅰ/Ⅱ/Ⅲ gear) Km/h

0-3.9/0-6.5/0-10.9

Backward speed (Ⅰ/Ⅱ/Ⅲ gear) Km/h

0-4.8/0-8.2/0-13.2
