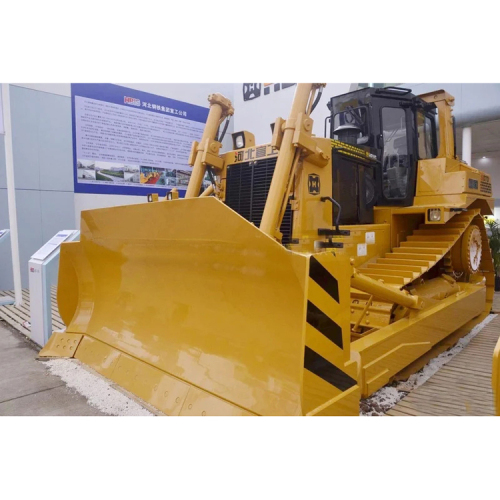

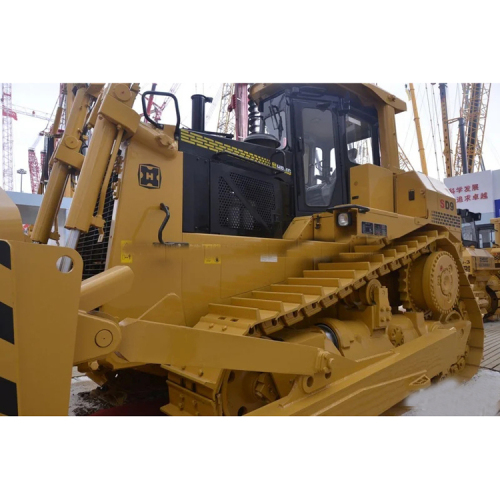

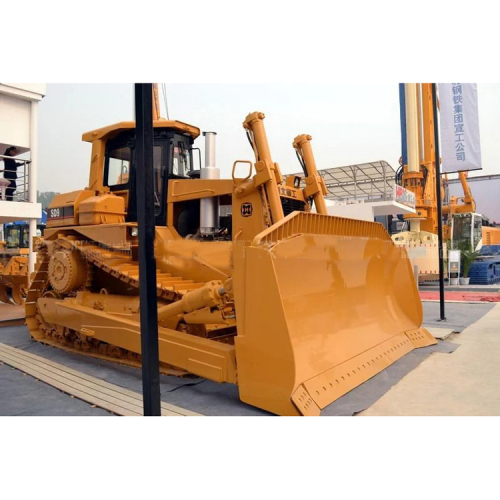

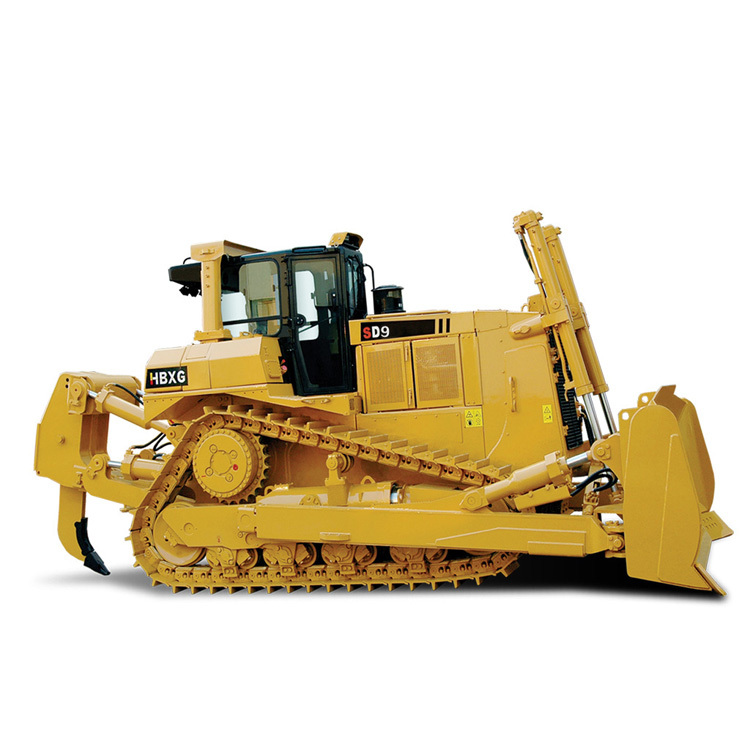

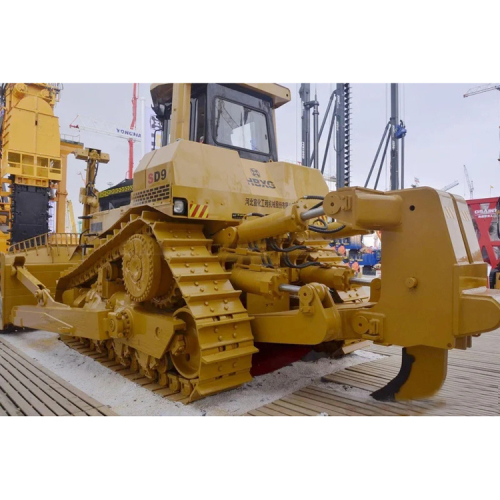

HBXG Bulldozer SD9
HBXG SD9 Big Bulldozer Construction Working for Sale
Working weight of the machine (kg)44580/48880(with soil looser)
Net power (kW/RPM) 316/1800
Bulldozer capacity (m3)13.5
Engine model Cummins KTA19-C525
Power (kw/RPM) 316/1800
Models for different condition: SD9
Adaptability to work
Walking system: eight beam swing type, balance beam suspension structure, triangle section crawler, good passing performance, meet the requirements of landfill operation.
Working device: the bulldozing device of guardrail is added to meet all kinds of bad working conditions of the dump.
Working device hydraulic system: pilot hydraulic system, proportional pilot valve single handle control, can accurately realize the blade lifting, lowering, floating and other actions, small control force, high production efficiency.
Driving environment
The enlarged hexahedral cab is spacious and bright, with wide working field of vision and fully sealed indoor environment, which can greatly reduce the noise. It can be equipped with cold and warm air conditioning to make the working environment more safe and comfortable.
The chassis control and working device control are respectively arranged on both sides of the driver's seat, and the instrument panel is in front of the driver, which meets the requirements of ergonomics, with comfortable and labor-saving operation and high productivity.
Ergonomic hexahedral cab, comfortable driving, good vision.
Suspension type single deceleration pedal, small volume, large movement space, comfortable operation.
Seat adjustment is easy to provide the most comfortable steering position for the driver.
Cab integral sealed shock absorption system, low noise.
model |
SD9 standard type |
Working weight-traction frame (kg) |
48880 |
Overall dimensions (including earth looser)mm |
8478*4314*3970 |
Engine type |
Cummins KTA19 |
Engine rated power kw/ RPM |
257/2100 |
Minimum turning radius (track/shovel tip)mm |
6800 |
Shovel capacity (mm3) |
13.5 |
Ground clearance (mm) |
517 |
Specific grounding pressure (kPa) |
112 |
One step forward (KPH) |
0~3.9 |
Forward second gear (KPH) |
0~6.9 |
Forward third gear (KPH) |
0~12.2 |
Back one step (KPH) |
0~4.8 |
Reverse second gear (KPH) |
0~8.5 |
Back three gears (KPH) |
0~15.1 |
