HBXG Bulldozer TY140-3 TY140-3C

The working weight of the machine: (kg) 17000
Net power :(kW/RPM) 114/1800
Bulldozer blade capacity: (m3)4.05
Climbing ability: (%)30°
Engine:Shangchai 6135AK-3S engine model
Powe:r (kw/RPM) 114/1800
Displacement (L) :Cylinder number - cylinder diam
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

HBXG bulldozer T140-3C

Small Tractor Bulldozer HBXG TY140-3 TY140-3C for Sale



The working weight of the machine: (kg) 17000

Net power :(kW/RPM) 114/1800

Bulldozer blade capacity: (m3)4.05

Climbing ability: (%)30°

Engine:Shangchai 6135AK-3S engine model

Powe:r (kw/RPM) 114/1800

Displacement (L) :Cylinder number - cylinder diameter × stroke (N-mm ×mm)135×150

Models for different condition: T140-1, T140-2, T140-1, T140HW, TG140-2,TS140







Hydrostatic transmission system, stepless speed regulation, power and in situ steering, flexible operation, adapt to a variety of conditions.

Precise control enables bulldozing in fine and narrow Spaces.

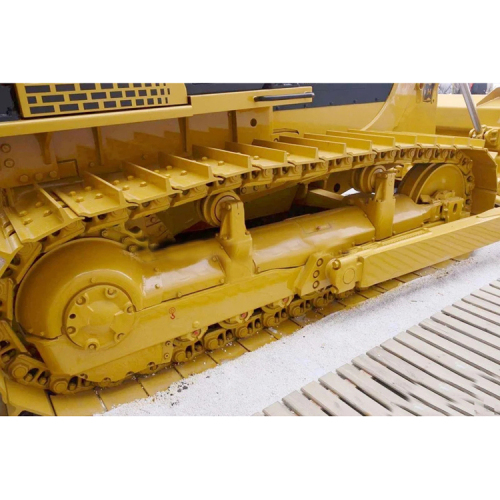

The chassis system has long grounding length, smooth running, good passability and strong operation ability.





Ergonomic hexahedral cab, comfortable driving, good vision.

Suspend type single reduction pedal, small volume, large movement space, comfortable operation.

Seat adjustment is convenient for the driver to provide the most comfortable control position.

Cab integral sealed shock absorption system, low noise.

Vehicle safety channel system to ensure driver safety.

power system

The WP10G156E356 diesel engine produced by Weichai meets the national three-stage emission standard, with strong power, stability and reliability, energy saving and environmental protection.



model

T140-3C  standard type

Working weight-traction frame (kg)

15670

Overall dimensions (including earth looser)mm

3045*3324*5181

Engine type

Weichai WP10G156E356

Engine rated power kw/ RPM

104/1800

Maximum height of descent (mm)(below ground)

400

Bulldozing shovel width

3324

Grade 1 walking speed (km/h)

0-2.52/0-3.53

Grade 2 walking speed (km/h)

0-3.55/0-4.96

Grade 3 walking speed (km/h)

0-5.68/0-7.94

Grade 4 walking speed (km/h)

0-7.53/0-10.53

Grade 5 walking speed (km/h)

0-10.64
