HBXG Bulldozer TY160-3

Model TY160-3 standard model
Working weight (traction after belt) (kg)16500
Working weight (with soil loosening device) (kg) 18209
Length × Width × Height (with rear traction) (mm) 4993×3479×3150
Length × width × height (with soil loosening device) (m
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

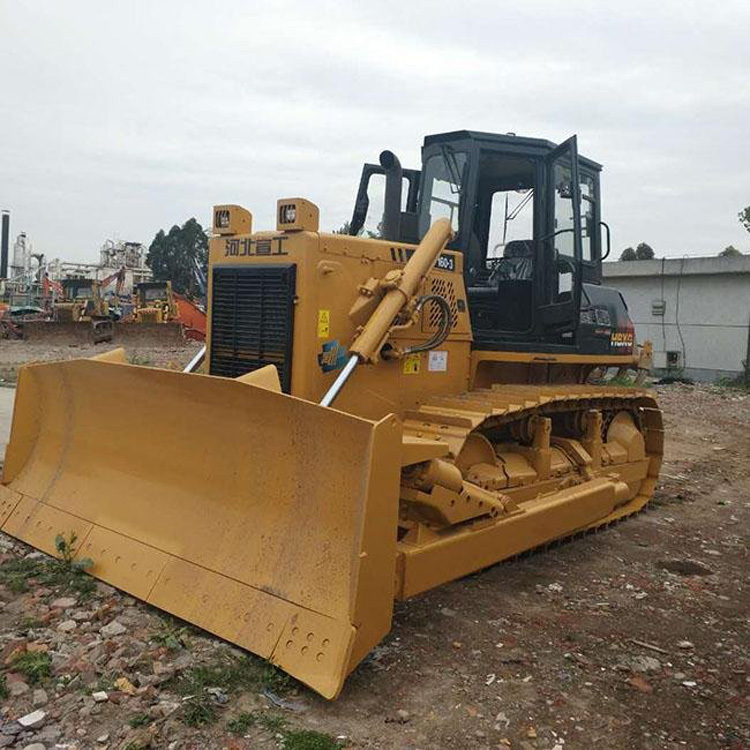

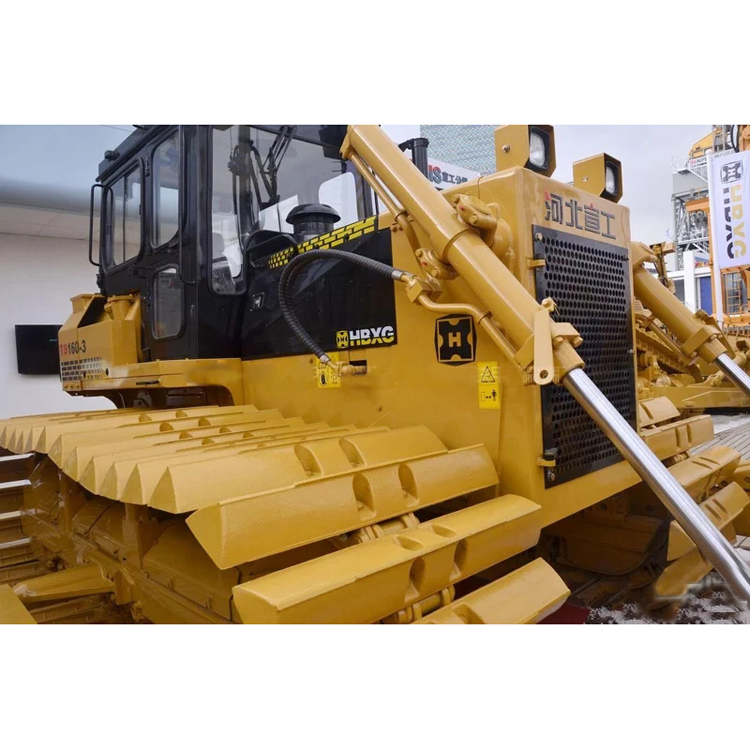

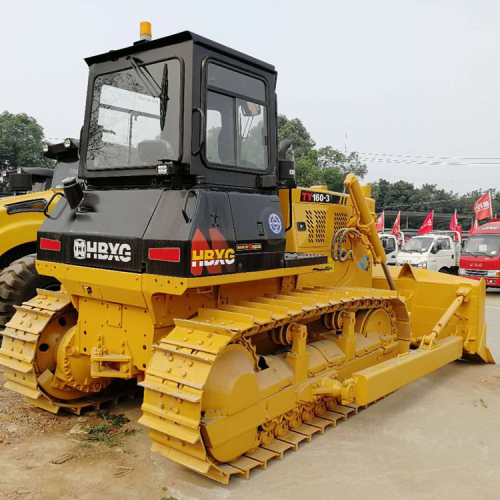

HBXG Bulldozer T160-3

HBXG TY160-3 China New Dozer Company Factory Supplier



Model TY160-3 standard model

Working weight (traction after belt) (kg)16500

Working weight (with soil loosening device) (kg) 18209

Length × Width × Height (with rear traction) (mm) 4993×3479×3150

Length × width × height (with soil loosening device) (mm) 6216×3479×3150

Engine model WP10G178E355

Flywheel power/rated speed (kW/ RPM) 121/1850

Minimum turning radius (mm)4191

Ground clearance (mm)400

Ground specific voltage (kPa)65.6

Forward speed (KPH) 0-9.63 0-11.0 0-12.53

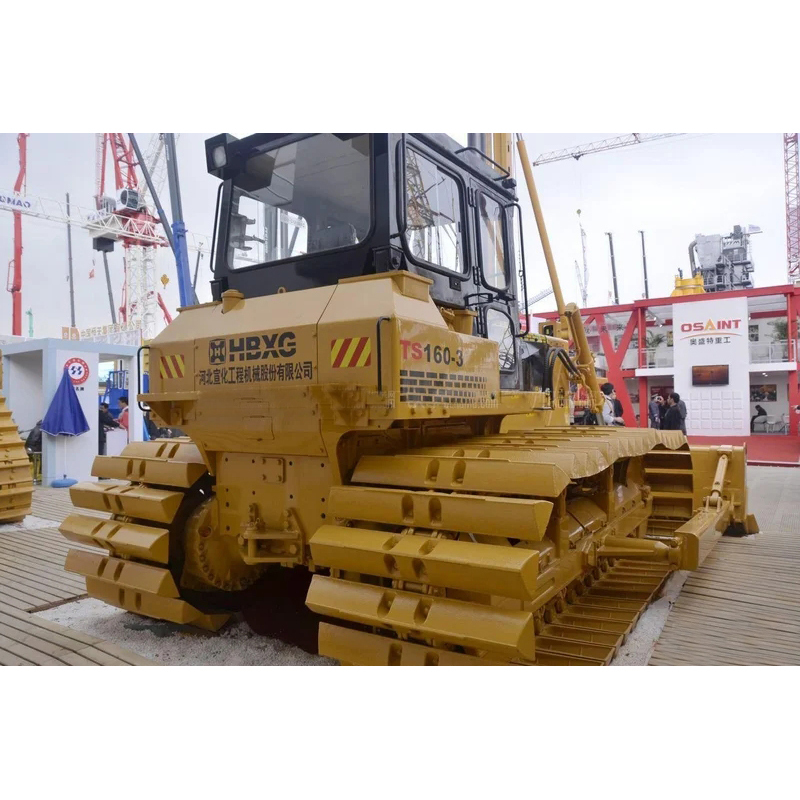

Models for different condition: TY160-3,TYS160-3,TS160-3HW,T160-3,TYS160-3HW

HBXG TY160-3 bulldozer (Ⅲ standard) is a semi-rigid suspension hydraulic drive bulldozer, the engine meets the emission requirements of the state, and the operation of the working device is the pilot operation. The machine is compact in structure, advanced and reasonable in design, comfortable and labor-saving in operation and high in production efficiency. Is the road construction, railway construction, mining, water conservancy construction and other earthwork excavation, push transport, backfill ideal machinery



Power system

Engine: Weichai WP10G178E355 electronic control engine, emissions meet the national non-road machinery Ⅲ stage emissions requirements, strong power, energy saving and environmental protection.

Hydraulic torque converter: single stage single phase three components hydraulic torque converter, simple structure, high transmission efficiency.

Gearbox: planetary gear, multi-disc clutch power shift gearbox, hydraulic combined with forced lubrication, three gears forward, three gears back, easy to operate, smooth and efficient transmission.

Central drive: spiral bevel gear, first step reduction, splash lubrication.

Steering Clutch: wet, multi - plate spring compaction, hydraulic separation, manual - hydraulic power assist.

Steering Brake: wet type, floating belt type, manual - hydraulic power.

Final transmission: double gear reduction, splash lubrication, combined sprocket, easy maintenance and replacement.



Adaptability to work

Working device: strengthening the design of earth pushing device and loose earth, meet all kinds of harsh working conditions of earthwork.

  Working device hydraulic system: pilot hydraulic system, proportional pilot valve single handle control, can accurately achieve the lifting, falling, floating shovel

Such as action, control force is small, high production efficiency.

  Walking system: eight beam swing type, balance beam suspension structure, assembly type single track track assembly.   It can not only meet the stability requirements of operation, but also reduce the impact of uneven ground on machinery.



model

TY160-3  standard type

Working weight (with rear traction) (kg)

16500

Length × Width × height (with rear traction) (mm)

4993×3479×3150

Working weight (with soil extractor) (kg)

18209

Length x Width x Height (with soil extractor) (mm)

6216×3479×3150

Engine type

Weichai  WP10G178E355

Flywheel power/rated speed (kW/ RPM)

121/1850

Minimum turning radius (mm)

4191

Ground clearance (mm)

400

Specific grounding pressure (kPa)

65.6
