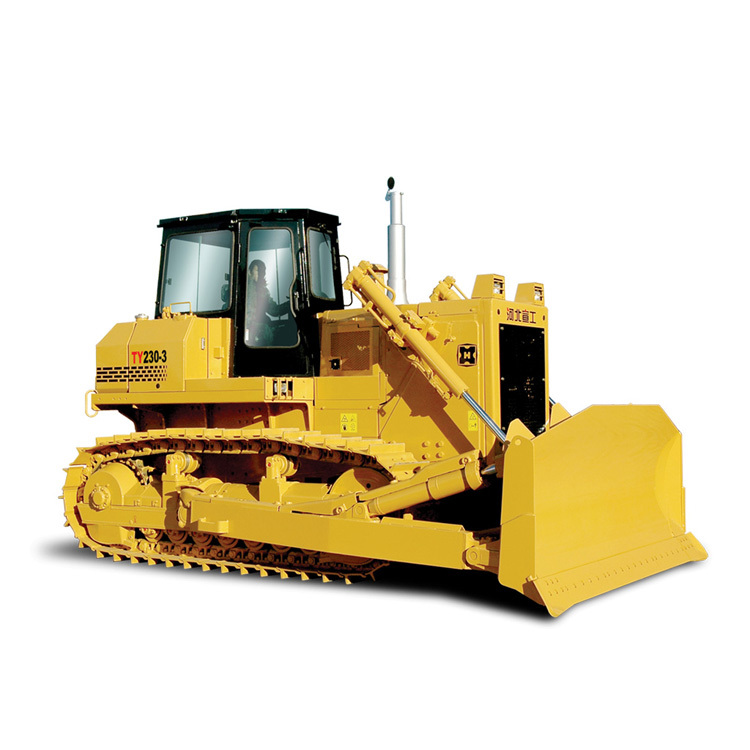

HBXG Bulldozer T230-3
HBXG TY230-3 China Dozer Manufactures Company Factory
Machine length (mm)5733
Width (mm)3666
Machine height (mm)3380
Engine model Cummins QSNT-C240
Working weight of the whole machine (kg)24840
Bulldozer knife capacity (m3)7.8

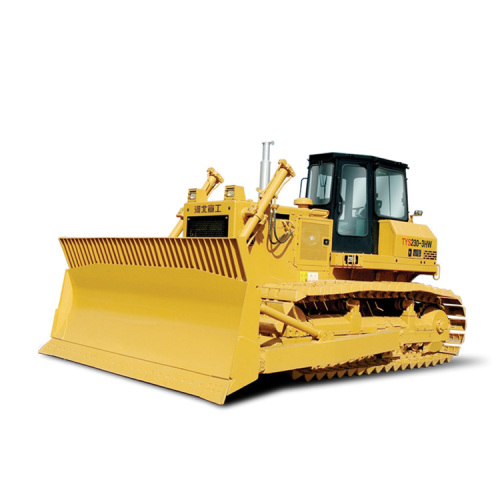

Models for different condition: TY230-3,TYS230-3HW
HBXG TY230-3 bulldozer is a crawler type bulldozer with hydraulic drive, hydraulic control and semi-rigid suspension. It is equipped with advanced technologies such as luxurious hexahedral cab, electronic monitoring, and large capacity bulldozer. The control system designed according to the principle of ergonomics is reasonable in structure, advanced in performance, portable and simple in operation. The machine has the advantages of strong power, excellent performance, high operating rate and wide vision. Is the earth backfill, traffic, desert, power, oil fields, mines and other large earthwork construction ideal machinery.
Equipped with Chongqing Cummins QSNT-C240S30 electronic control engine, it is intelligent and efficient, powerful, low fuel consumption rate, and meets the national emission requirements for non-road machinery Phase III.
Using mature and stable single-stage single-phase hydraulic torque converter, the machine can automatically adapt to variable load and meet the requirements of traction working conditions, and extend the service life of the machine.
High-reliability power shift gearbox, three forward and backward gears, compact structure, small size, large transmission torque, low noise, etc.
The central drive is a one-stage bevel gear reduction, and the final drive is a two-stage spur gear reduction mechanism. The entire transmission system has a compact structure and transmission efficiency.
The hydraulic system of the working device adopts a double pump, and the system adopts a pressure compensation circuit, which reduces the hydraulic power consumption, improves the working stability, and reduces the technical requirements for the driver's cutting operation.
The hydraulic system of the working device adopts a double pump, and the system adopts a pressure compensation circuit, which reduces the hydraulic power consumption, improves the working stability, and reduces the technical requirements for the driver's cutting operation.
The chassis hydraulic system adopts a dual-pump confluence structure, which can give full play to the power of the engine, and better ensure the high reliability and sensitivity of the main engine's shifting, steering, and braking actions. Effectively extend the service life of the gearbox.
The ergonomic hexahedron cab provides comfortable driving and good vision.
The cab and seat box are integrally sealed, and the suspension damping system is low noise.
The seat is easy to adjust, providing the driver with the most comfortable maneuvering posture.
The vehicle safety channel system ensures the safety of the driver.
The integral injection molding instrument box and combination instrument are beautiful in appearance, which can monitor the running status of the whole machine in real time and automatically diagnose faults.
model: |
TY230-3 standard type |
engine model: |
QSNTC240-S30 |
Total power: |
244hP(179kW) |
Calibration speed: |
2000r/min |
Use weight: |
24.6t |
Dimensions (length X width X height): |
5730X3725X3380 ( mm ) |
Track center distance: |
2000mm |
Grounding length: |
2840mm |
Track shoe width: |
560mm |
Track pitch: |
216mm |
Ground pressure: |
0.076MPa |
Blade capacity: |
7.8m 3 |
Theoretical driving speed: |
|
Forward 1 gear |
0~3.8 ( km/h ) |
Forward 2 gear |
0~6.8 ( km/h ) |
Forward 3 gear |
0~11.8 ( km/h ) |
Back 1 gear |
0~4.9 ( km/h ) |
Back 2 gear |
0~8.5 ( km/h ) |
Back 3 gear |
0~14.3 ( km/h ) |
