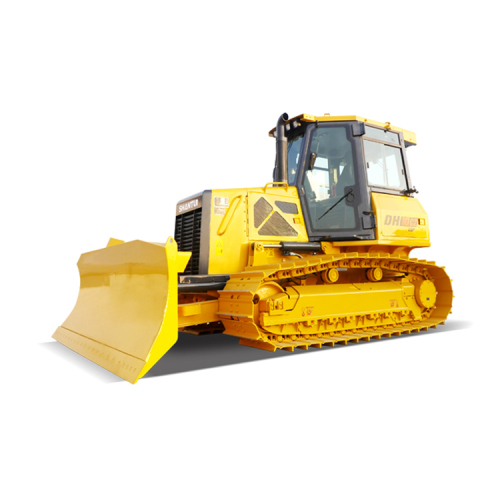

Shantui Bulldozer DH08-B2
Mini Crawler Dozer Best Mini Dozer 80 hp Bulldozer for Sale
Engine Power: 380/1400-1600 (N.m/rpm), 70/2200(kw/rpm)
Engine Model: WP4G95E221
Blade Capacity: * Straight Titling Blade-1.09M3
Bulldozer width*height: 2680*1090(mm)
Track Shoes Width: 460mm
Overall Weight: 8780kg (Standard)
Applicable Working Conditions: Bulldozing, digging, landfill, and other bulk operations.
It meets the requirements of EPA Tier4 Final /EU Stage Ⅳ emission regulations, and provides users with various operating modes, steering modes, slip rate control modes and other functions to meet a variety of different operating conditions, and can be configured with automatic leveling system to meet the requirements of high precision operating conditions.
Power System
● Weichai mechanical engine conforms to the China-II non-road machinery emission regulation, featuring high parts interchangeability and low maintenance cost.
● The intelligent matching technology realizes the highest working efficiency and most reasonable fuel economy.
● Adopt innovative mountain push static pressure drive optimization technology, more efficient and energy saving; Multiple operation modes are available for users to choose according to the actual load requirements of working conditions to achieve reasonable matching of power, efficiency and energy consumption:
Standard mode - can not only provide the operator with strong dynamic performance, but also provide excellent operation control performance;
Power mode - can provide stronger power performance, to meet your greater requirements of heavy load conditions;
Electrical system
● With a variety of steering mode, low temperature control of hydraulic oil, automatic low idle speed, fan reversal, seat safety switch and other functions, the equipment is more intelligent, more efficient, higher safety.
● With fault self-diagnosis function, accurately indicate the fault cause direction, shorten the downtime.
● It can be configured with TRIMBLE, TOPCON, LEICA, MOBA and other GPS automatic leveling systems to meet users' precise leveling working conditions and improve efficiency.
Operation Performance
DH08-B2 is a mini crawler dozer with electric control for travelling, single handle operation, working device operation,flexible, light and comfortable operation.
As a hot sale 80 hp bulldozer, DH08-B2 if the best mini dozer in market.
PARAMETER
|
Parameter name |
DH08 B2 XL(Extended version) |
DH08 B2 LGP(Super-wetland version) |
|
Performance parameters |
|
|
|
Operating weight (Kg) |
8780 |
9092 |
|
Ground pressure (kPa) |
42.5 |
33.1 |
|
Engine |
|
|
|
Engine model |
Weichai WP4G95221 |
Weichai WP4G95221 |
|
Rated power/rated speed (kW/rpm) |
70/2200 |
70/2200 |
|
Overall dimensions |
|
|
|
Overall dimensions of machine (mm) |
4298*2680*2724 |
4298*3150*2724 |
|
Driving performance |
|
|
|
Forward speed (km/h) |
0～9 |
0～9 |
|
Reversing speed (km/h) |
0～9 |
0～9 |
|
Chassis System |
|
|
|
Center distance of track (mm) |
1650 |
1790 |
|
Width of track shoes (mm) |
460 |
610 |
|
Ground length（mm） |
2270 |
2270 |
|
Tank capacity |
|
|
|
Fuel tank (L) |
219 |
219 |
|
Working device |
|
|
|
Blade type |
PAT |
PAT |
|
Digging depth (mm) |
450 |
450 |
|
Ripper type |
3 shank |
3 shank |
|
Ripping depth (mm) |
340 |
340 |
