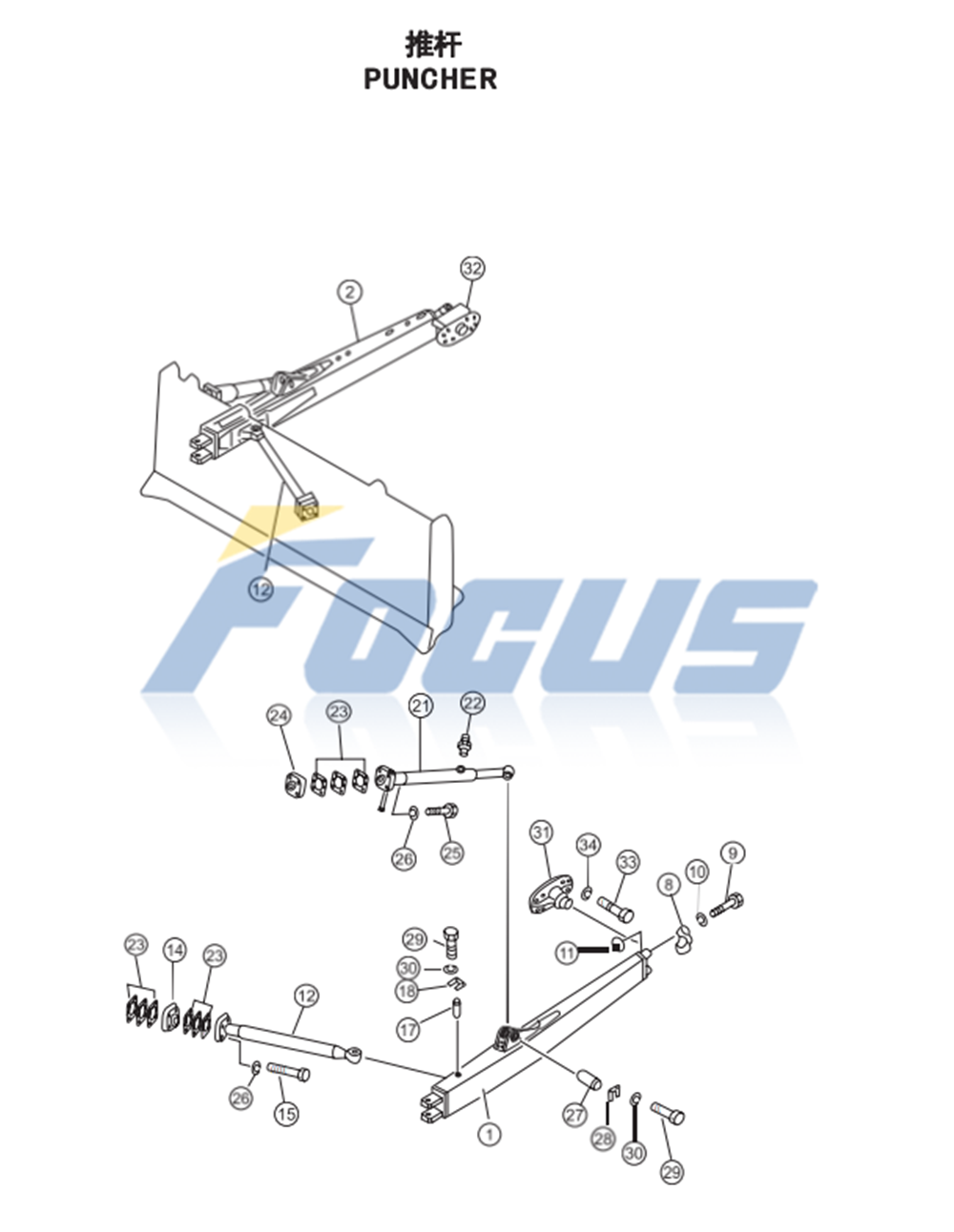

Shantui Parts SD22.SD22D.SD22E Blade Puncher L.H.and R.H.158-71-08000 158-71-02000
Part Name: Puncher (L.H.) Puncher (R.H.)
Part Number: 158-71-08000 158-71-02000
Machine Model:SD22
| NO. | PART NO. | PART NAME | Q'TY | MODEL |
| 1 | 158-71-08000 | Puncher (L.H.) | 1 | |
| 2 | 158-71-02000 | Puncher (R.H.) | 1 | |
| 8 | 150-70-23244 | Blind nut | 2 | |
| 9 | 154-71-31420 | Bolt | 4 | |
| 10 | 01643-32780 | Washer | 4 | |
| 11 | 170-70-13141 | Nut | 4 | |
| 12 | 154-71-31221 | Arm | 2 | |
| 14 | 158-71-00001 | Gland | 2 | |
| 15 | 01010-52490 | Bolt | 8 | |
| 17 | 154-71-22480 | Pin | 2 | |
| 18 | 154-71-22490 | Stop washer | 2 | |
| 21 | 154-71-22371 | Support | 1 | |
| 22 | 07020-00000 | Oil cup | 1 | |
| 23 | 154-71-22390 | Washer | 12 | |
| 23 | 154-71-22410 | Washer | 24 | |
| 23 | 154-71-22420 | Washer | 12 | |
| 24 | 158-71-00002 | Gland | 2 | |
| 25 | 01011-52420 | Bolt | 8 | |
| 26 | 01643-32460 | Washer | 16 | |
| 27 | 154-71-21290 | Pin | 2 | |
| 28 | 175-71-21330 | Stop washer | 2 | |
| 29 | 01010-51435 | Bolt | 8 | |
| 30 | 01643-31445 | Washer | 45 | |
| 31 | 158-71-07000 | Trunnion (L.H.) | 1 | |
| 32 | 158-71-06000 | Trunnion (R.H.) | 1 | |
| 33 | 01010-52250 | Bolt | 16 | |
| 34 | 01643-32260 | Washer | 16 |
