Shantui Parts SD22 Oil cylinder (L.H.) 23Y-89B-01500 Oil cylinder (R.H.)23Y-89B-01400
Part Name:Oil cylinder (L.H.) Oil cylinder (R.H.)
Part Number: 23Y-89B-01500 23Y-89B-01400
Machine Model:SD22

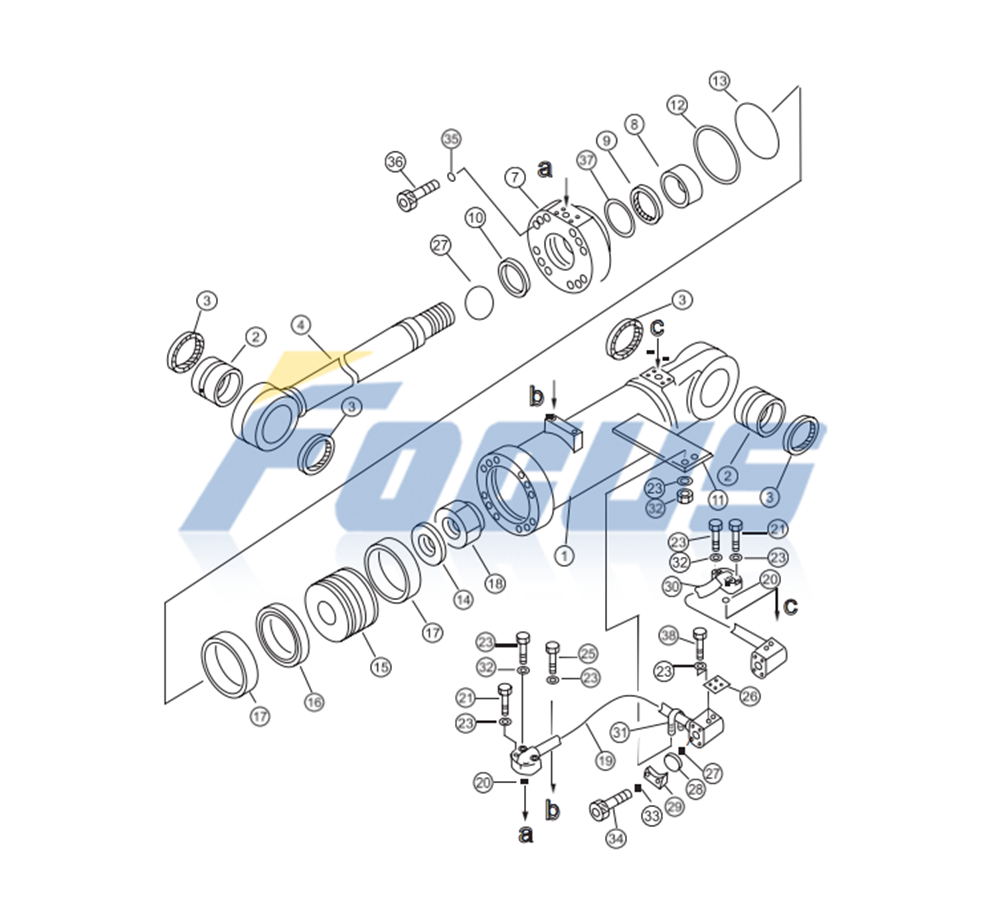

| NO. | PART NO. | PART NAME | Q'TY | |
| SD22,SD22E,SD22D | ||||
| 0 | 23Y-89B-01500 | Oil cylinder (L.H.) | 1 | |
| 0 | 23Y-89B-01600 | Oil cylinder (R.H.) | 1 | |
| 23Y-89B-01500 23Y-89B-01600 | ||||
| 1 | 23Y-89B-01620 | Cylinder body (R.H.) | 1 | |
| 1 | 23Y-89B-01520 | Cylinder body (L.H.) | 1 | |
| 2 | 154-63-42320 | Bush | 2 | 2 |
| 3 | 07145-00075 | Dust ring | 4 | 4 |
| 4 | 23Y-89B-01510 | Piston rod | 1 | 1 |
| 7 | 23Y-64B-01003 | Cylinder head | 1 | 1 |
| 8 | 23Y-62B-01003 | Guide ring | 1 | 1 |
| 9 | 23Y-62B-01100 | Step seal | 1 | 1 |
| 10 | 23Y-62B-01001 | Dust ring | 1 | 1 |
| 11 | 154-63-42770 | Plate | 1 | 1 |
| 12 | 07000-12145 | O-ring | 1 | 1 |
| 13 | 07146-02146 | Guard circle | 1 | 1 |
| 14 | 144-63-42170 | Washer | 1 | 1 |
| 15 | 23Y-64B-01001 | Piston | 1 | 1 |
| 16 | 23Y-64B-01300 | Glyd ring | 1 | 1 |
| 17 | 23Y-64B-01002 | Support ring | 2 | 2 |
| 18 | 144-63-42182 | Nut | 1 | 1 |
| 19 | 23Y-89B-01540 | Hose (L.H.) | 1 | |
| 19 | 23Y-89B-01630 | Hose (R.H.) | 1 | |
| 20 | 07000-13035 | O-ring | 1 | 1 |
| 21 | 01010-51050 | Bolt | 4 | 4 |
| 22 | 01010-51055 | Bolt | 4 | 4 |
| 23 | 01643-31032 | Washer | 14 | 14 |
| 26 | 154-63-41770 | Plate | 1 | 1 |
| 27 | 07000-13025 | O-ring | 3 | 3 |
| 28 | 07378-10600 | Dust cover | 2 | 2 |
| 29 | 07371-30638 | Flange | 4 | 4 |
| 30 | 23Y-89B-01530 | Hose (L.H.) | 1 | |
| 30 | 23Y-89B-01420 | Hose (R.H.) | 1 | |
| 31 | 07283-23450 | Hose clip | 1 | 1 |
| 32 | 01599-01011 | Nut | 2 | 2 |
| 33 | 01643-30823 | Washer | 8 | 8 |
| 34 | 01010-50830 | Bolt | 8 | 8 |
| 35 | 01643-31645 | Washer | 12 | 12 |
| 36 | 01252-61680 | Screw | 12 | 12 |
| 37 | 23Y-62B-01002 | KY-ring | 1 | 1 |
| 38 | 01010-51025 | Bolt | 4 | 4 |
