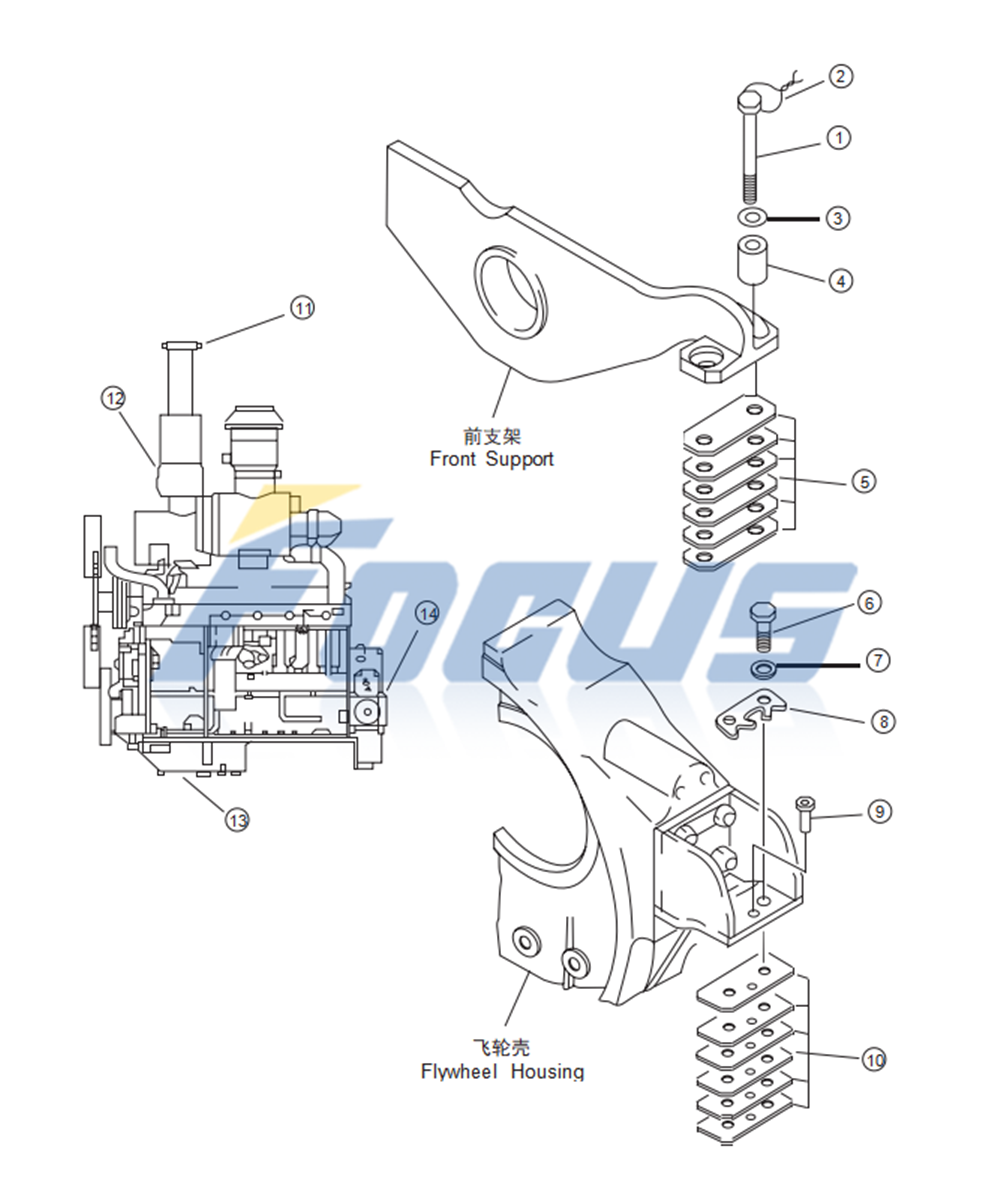

Shantui SD22 Flywheel housing ass’y 6711-21-C010 6710-23-4110
Part Name:Flywheel housing ass’y
Part Number: 6711-21-C010 6710-23-4110
Machine Model:SD22
| NO. | PART NO. | PART NAME | Q'TY | |
| 0 | 6711-21-C010 | Flywheel housing ass’y | 1 | |
| 3 | 6623-31-1371 | Drive pump gear | 1 | |
| 4 | 6623-31-1390 | Positioning pin | 1 | |
| 5 | 01010-51255 | Bolt | 4 | |
| 6 | 6623-31-1380 | Stop washer | 2 | |
| 9 | 6710-23-4110 | Flywheel housing | 1 | |
| 10 | 07046-15520 | Dish-shaped plug | 1 | |
| 11 | 07046-12016 | Dish-shaped plug | 4 | |
| 12 | 04020-01434 | Cylindrical pin | 4 | |
| 13 | 07042-20415 | Plug | 1 | |
| 14 | 6710-23-4120 | Bolt | 2 | |
| 15 | 6710-23-4130 | Bolt | 5 | |
| 16 | 6710-23-4140 | Bolt | 2 | |
| 17 | 6600-01-2740 | Washer | 9 | |
| 18 | 6691-23-4710 | Rear bracket | 2 | |
| 19 | 01010-81845 | Bolt | 8 | |
| 20 | 6643-21-4731 | Plate | 4 | |
| 21 | 6711-21-C010-01 | Cylindrical pin | 2 | |
| 21 | 6711-21-C010-02 | Cylindrical pin | 2 | |
| NO. | PART NO. | Q'TY | ||
| Index No. | PART NO. | DESCRIPTION | Q`TY | |
| 6711-21-C010 | flywheel housing ass’y | 1 | ||
| 111-3 | 6623-31-1371 | gear, pump drive | 1 | |
| 4 | 6623-31-1390 | pin, dowel | 1 | |
| 5 | 01010-31255 | bolt | 4 | |
| 6 | 6623-31-1380 | plate, lock | 2 | |
| 9 | 6710-23-4110 | flywheel housing ass’y | 1 | |
| 10 | 07046-15520 | plug, expansion | 1 | |
| 11 | 07046-12016 | plug, expansion | 4 | |
| 12 | 04020-01434 | pin, dowel | 4 | |
| 13 | 07042-00415 | plug, drian | 1 | |
| 15 | 6710-23-4130 | bolt | 5 | |
| 16 | 6710-23-4120 | bolt | 2 | |
| 6710-23-4140 | bolt | 2 | ||
| 17 | 6600-01-2740 | washer | 9 | |
| 18 | 6691-23-4710 | bracket, rear | 2 | |
