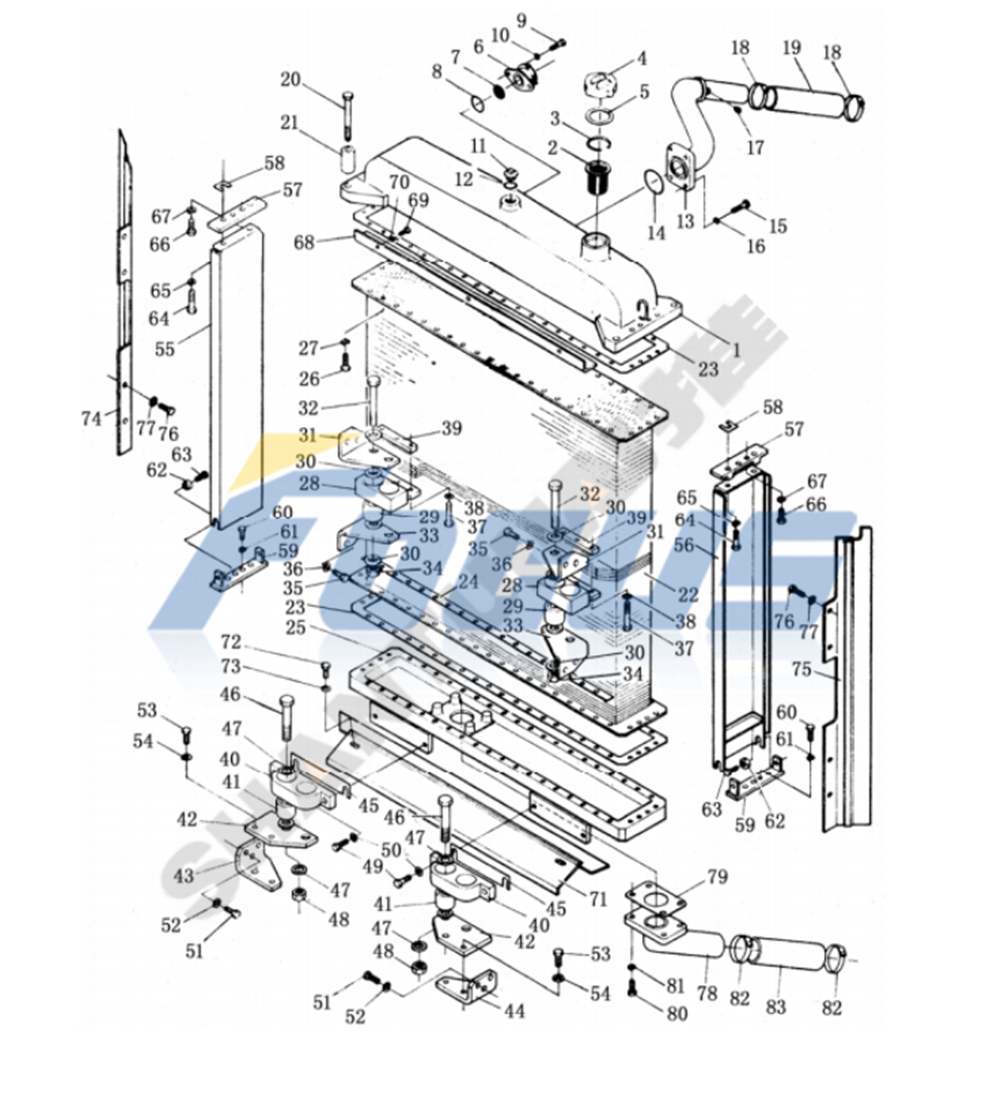

Shantui SD22 Radiator assembly 154-03-C1001 22M-03-00000
Part Name:Radiator assembly
Part Number: 154-03-C1001 22M-03-00000
Machine Model:SD22
| No. | PART NO. | DESCRIPTION | SD22 SD22E | SD22D | SD22S SD22R |
| 154-03-C1001 | radiator ass’y | 1 | |||
| 22M-03-00000 | radiator ass’y | 1 | |||
| 158-03-A0000 | radiator ass’y | 1 | |||
| 154-03-11117 | tank, upper | 1 | 1 | ||
| 106-1 | 22M-03-80700 | tank, upper | 1 | ||
| 07056-00048 | strainer | 1 | 1 | 1 | |
| 2 | 07057-03271 | ring | 1 | 1 | 1 |
| 3 | 07053-10000 | cap | 1 | 1 | 1 |
| 4 | 07053-00002 | gasket | 1 | 1 | 1 |
| 5 | 154-03-11682 | valve, pressure | 1 | 1 | |
| 6 | 22M-03-81000 | valve, pressure | 1 | ||
| 175-03-32570 | screen | 1 | 1 | ||
| 7 | 22M-03-80800 | screen | 1 | ||
| 07000-43045 | o-ring | 1 | 1 | 1 | |
| 8 | 01010-51025 | bolt | 2 | 2 | 2 |
| 9 | 01602-21030 | washer | 2 | 2 | 2 |
| 10 | 07040-13618 | plug | 1 | 1 | 1 |
| 11 | 07002-43634 | o-ring | 1 | 1 | 1 |
| 12 | 154-03-11565 | tube ass’y | 1 | 1 | 1 |
| 13 | 07000-42070. | o-ring | 1 | 1 | 1 |
| 14 | 01010-51240 | bolt | 4 | 4 | 4 |
| 15 | 01602-21236 | washer | 4 | 4 | 4 |
| 16 | 07042-30108 | plug | 1 | 1 | 1 |
| 17 | 07281-00809 | clamp | 2 | 2 | 2 |
| 18 | 154-03-11574 | hose | 1 | 1 | 1 |
| 19 | 01011-51640 | bolt | 4 | 4 | 4 |
| 20 | 154-03-13240 | spacer | 4 | 4 | 4 |
| 21 | 154-03-21132 | core | 1 | 1 | |
| 22 | 22M-03-80500 | core | 1 | ||
| 154-03-11143 | gasket | 2 | 2 | ||
| 23 | 22M-03-80004 | gasket | 2 | ||
| 154-03-11151 | plate | 4 | 4 | ||
| 24 | 22M-03-80005 | plate | 4 |
