Description
Description

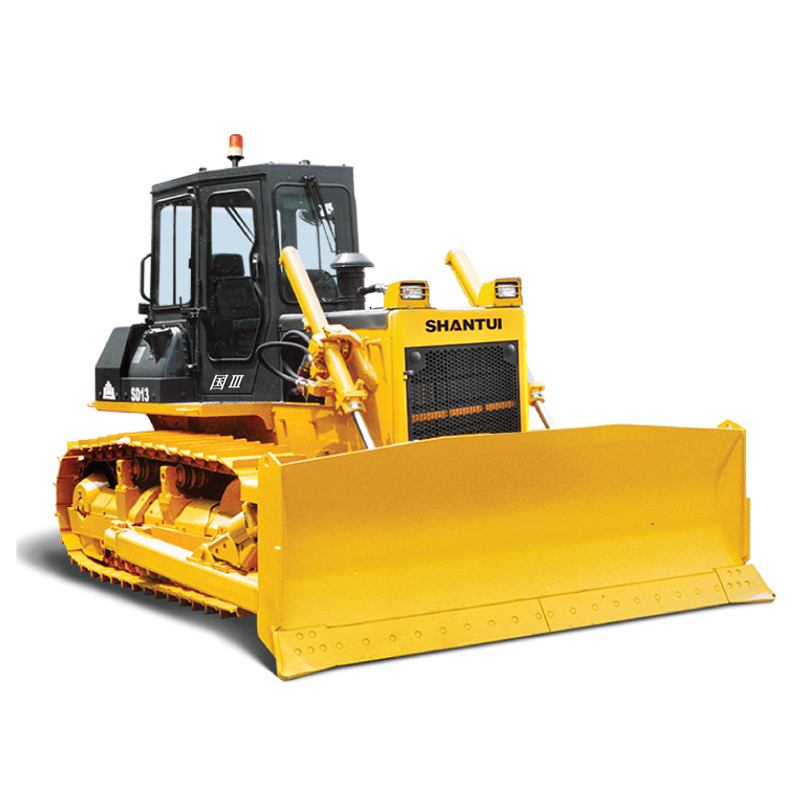

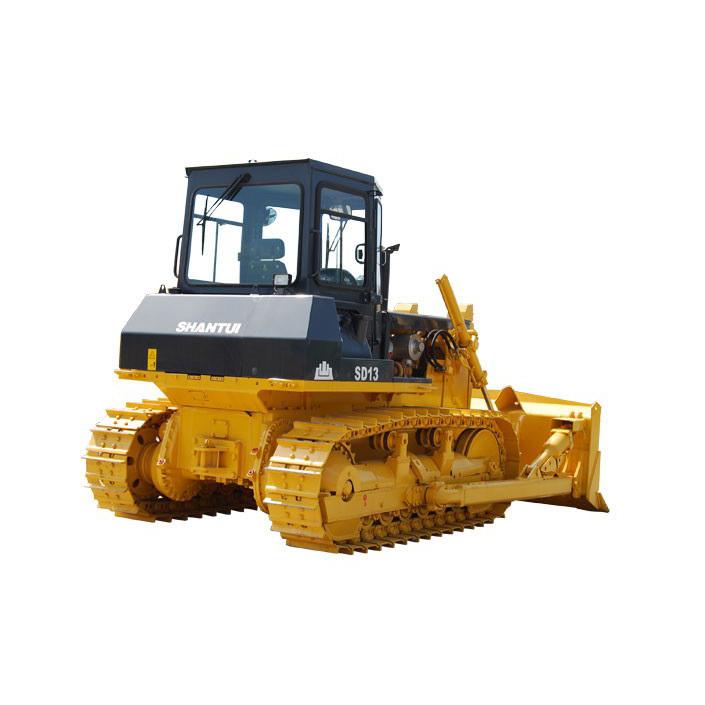

SHANTUI BULLDOZER SD13

130HP Hydraulic Drive Series Bulldozer



Engine Power: 105kW/1900rpm

Engine Model: Shangchai SC8D143G2B1 or SC8DK

Blade Capacity: * Straight Titling Blade-3.0M3 * Angle Blade-2.5M3 * U Blade-4.3M3

Track Shoes Width: 460mm

Overall Weight: 13,700kg (Standard)

Applicable Working Conditions: Bulldozing, digging, landfill, and other bulk operations.

Models for different condition: SD13, SD13C, SD13F, SD13S, SD13R







Shantui SD13 series bulldozer is mainly used for earth and stone pushing, leveling and stacking in road and railway projects. It is a flexible, light, reliable and durable model, widely used in many different types of projects. Shantui SD13 is hot sale as indispensable machinery and equipment in construction projects.

The bulldozers with SD13 hydraulic drive series enjoy the high technology content, advanced and reasonable design, high power, efficiency and convenient maintenance, applicable for the harsh operating environment. It is suitable for the pushing, digging, filling of the earth, stones and other bulk materials at the roads, railways, minerals, airports and so on, indispensable for defense engineering, mineral construction, urban and rural roads, water conservancy construction and others. SD13, SD13C, SD13F, SD13S & SD13R bulldozers are of the hydraulic drive type with power up to 95.5kw (130hp). Shantui SD13 Hot Sale Shantui Products Best Small Bulldozer for Sale



Power System

SHANGCHAI SC8D143G2B1 engines feature the high power, easy maintenance, high combustion efficiency, meeting the China-II emission standards. In addition, SD13 bulldozers have the Cummins 6CTA8.3-C145 engines, meeting the Euro I emission standards.

● High power performance, high efficiency, reliability, economy, low noise and low maintenance cost.

● Fuel systems adopt the mechanical pressure injection technology, featuring the low fuel consumption.

● The 280L fuel tanks could provide the long work duration, reduce the times of fuel filling, saving time and cost and thus creating higher value.

● The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.



Drive system

The convenient operations, the higher power output and the production efficiency are achieved due to the steering system with hydraulic assist and the transmission with both the planetary power shift and the compulsory lubrication

● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

● Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.



Cabin System

 Hexahedral cab, large internal space and wide field of vision, FOPS / ROPS can be configured as required, safe and reliable;

• electronic control of hand and foot throttle for more accurate and comfortable operation;

• equipped with intelligent display and control terminal, cooling and heating air conditioner, etc., to provide richer humanized driving experience, so that you can understand the system status at any time, intelligent and convenient.



Hydraulic system for working equipments
The mainstream 14MPa work hydraulic system enjoys the steady work and the overloading protection, greatly reducing the ratio of failures occurring to the hydraulic elements

Electrical system
The water-proof connectors, new relays and injection instruments could guarantee the electrical system works normally. In addition, the instrument box integrated with the A/C, electrical elements and the instruments makes itself more beautiful with higher grade.

PARAMETER


Parameter name

SD13

(Standard version)

SD13S

(Wetland version)

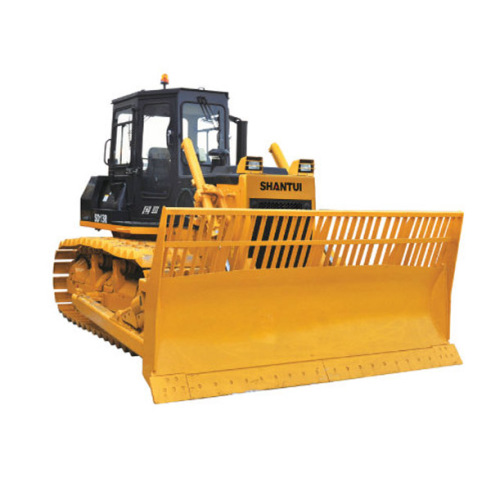

SD13R

(Environmental sanitation version)

SD13C

(Coal version)

Performance parameters









Operating weight (Kg)

13700

14900

15200

13900

Ground pressure (kPa)

53.8

38.4

39.2

54.6

Engine









Engine model

SC8D143G2B1(China-II)/SC8DK(China-III)

SC8D143G2B1(China-II)/SC8DK(China-III)

SC8D143G2B1(China-II)/SC8DK(China-III)

SC8D143G2B1(China-II)/SC8DK(China-III)

Rated power/rated speed(kW/rpm)

105/1900

105/1900

105/1900

105/1900

Overall dimensions









Overall dimensions of machine (mm)

4492*3185*2950

4492*3510*3000

4492*3510*3000

4492*3700*2950

Driving performance









Forward speed (km/h)

F1:0-3.2 F2:0-5.9 F3:0-9.8

F1:0-3.2 F2:0-5.9 F3:0-9.8

F1:0-3.2 F2:0-5.9 F3:0-9.8

F1:0-3.2 F2:0-5.9 F3:0-9.8

Reversing speed (km/h)

R1:0-3.9 R2:0-7.1 R3:0-11.9

R1:0-3.9 R2:0-7.1 R3:0-11.9

R1:0-3.9 R2:0-7.1 R3:0-11.9

R1:0-3.9 R2:0-7.1 R3:0-11.9

Chassis System









Center distance of track (mm)

1880

1880

1880

1880

Width of track shoes (mm)

460

700

700

560

Ground length(mm)

2365

2365

2365

2365
