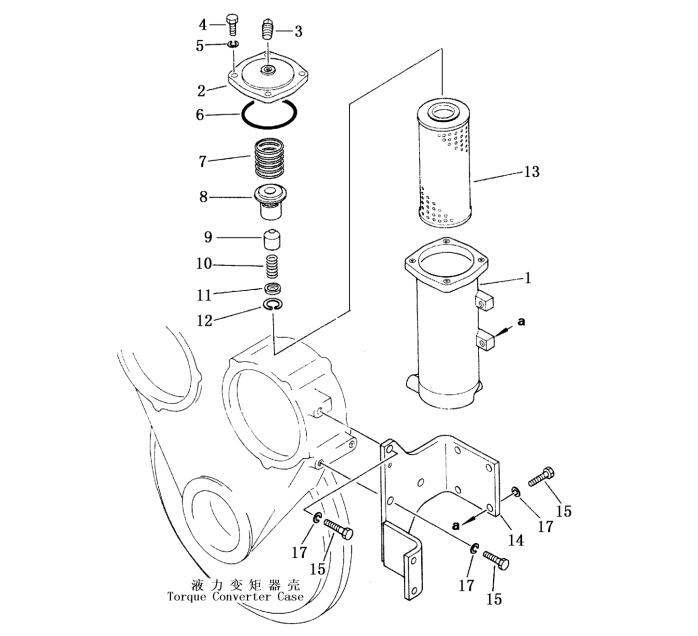

| FIG.616 OIL FILTER | |||
| Index No. | Part No. | Description | Q’ty |
| 10Y-75-03000 | oil filter ass’y | 1 | |
| 1 | 10Y-75-03100 | case | 1 |
| 2 | 10Y-75-03001 | cover | 1 |
| 3 | 07042-20108 | plug | 1 |
| 4 | 01010-31230 | bolt | 4 |
| 5 | 01643-11232 | washer | 4 |
| 6 | 07000-12100 | O-ring | 1 |
| 7 | 16Y-75-23005 | spring | 1 |
| 8 | 16Y-75-23004 | body valve | 1 |
| 9 | 16Y-75-23002 | valve | 1 |
| 10 | 16Y-75-23003 | spring | 1 |
| 11 | 16Y-75-23001 | seat | 1 |
| 12 | 04065-03012 | ring snap | 1 |
| 13 | 16Y-75-23200 | element | 1 |
| 14 | 10Y-75-02000 | bracket，oil filter | 1 |
| 15 | 01010-31230 | bolt | 7 |
| 17 | 01643-31232 | washer | 7 |
