Shantui SD13 Double Flange Track Roller Assembly 10Y-40-11000 10Y-40-11100
Part Name: Double Flange Track Roller
Part Number: 10Y-40-11000 10Y-40-11100
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
| |

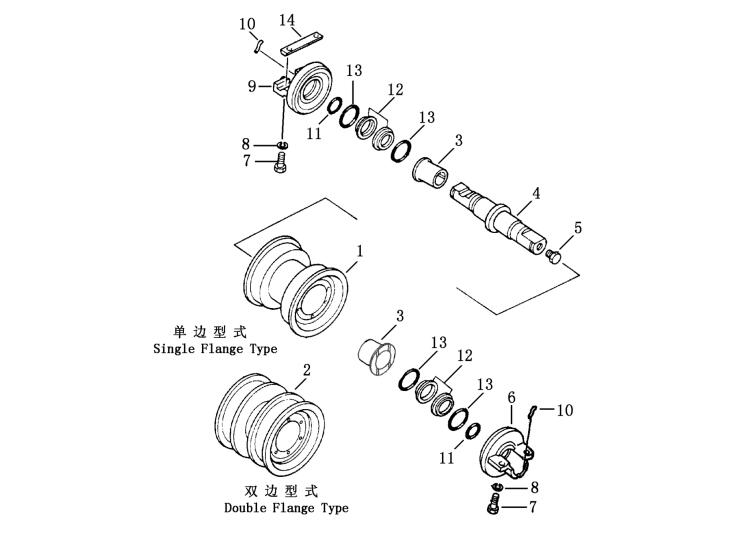

TRACK ROLLER |
|
| Index No. |
Part No. |
Description |
Q’ty |
|
10Y-40-10000 |
single flange track roller |
8 |
|
10Y-40-11000 |
double flange track roller |
4 |
| 1 |
10Y-40-10100 |
housing roller ,single |
8 |
| 2 |
10Y-40-11100 |
housing roller, double |
4 |
| 3 |
10Y-40-10008 |
bushing track |
24 |
| 4 |
10Y-40-10003 |
shaft |
12 |
| 5 |
07052-21217 |
plug |
12 |
| 6 |
10Y-40-10001 |
collar |
12 |
| 7 |
01010-31655 |
bolt |
48 |
| 8 |
01643-51645 |
washer |
48 |
| 9 |
10Y-40-10002 |
collar |
12 |
| 10 |
10Y-40-10005 |
ring |
24 |
| 11 |
07000-02055 |
O-ring |
24 |
| 12 |
10Y-40-10006 |
ring seal, floating |
48 |
| 13 |
10Y-40-10007 |
O-ring |
48 |
| 14 |
10Y-40-10004 |
key |
12 |
