Shantui SD13 Hob Sprocket 10Y-18-00036
Part Name: Hob Sprocket
Part Number: 10Y-18-00036
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
|
|

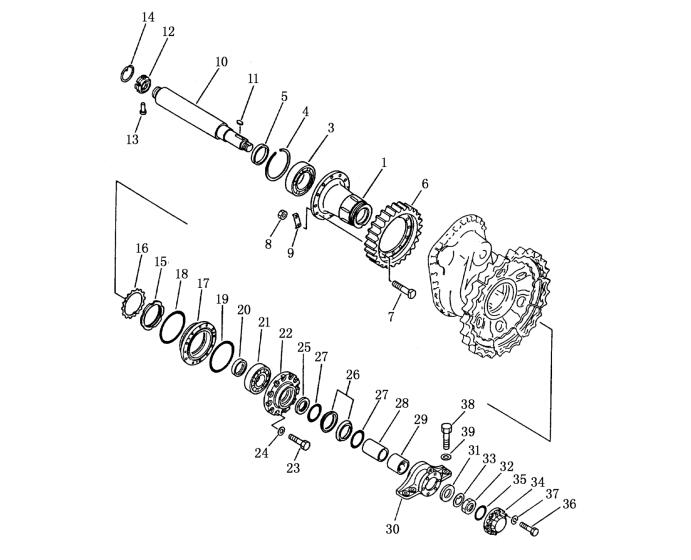

FINAL DRIVE SHAFT |
|
| Index No. |
Part No. |
Description |
Q’ty |
| 1 |
10Y-18-00036 |
hob sprocket |
2 |
| 3 |
GB283-87 |
bearing |
2 |
| 4 |
10Y-18-00031 |
ring, snap |
2 |
| 5 |
10Y-18-00035 |
ring, snap |
2 |
| 6 |
10Y-18-00029 |
gear |
2 |
| 7 |
01084-01860 |
bolt |
24 |
| 8 |
01582-01815 |
nut |
24 |
| 9 |
10Y-18-00030 |
plate lock |
12 |
| 10 |
10Y-18-00004 |
shaft |
2 |
| 11 |
04000-01065 |
key |
2 |
| 12 |
10Y-18-00032 |
nut |
2 |
| 13 |
10Y-18-00034 |
pin |
2 |
| 14 |
10Y-18-00033 |
ring |
2 |
| 15 |
10Y-18-00015 |
nut, lock |
2 |
| 16 |
10Y-18-00016 |
plate, lock |
2 |
| 17 |
10Y-18-00001 |
cage |
2 |
| 18 |
07000-05220 |
O-ring |
2 |
| 19 |
07000-05220 |
O-ring |
2 |
| 20 |
10Y-18-00014 |
ring, snap |
2 |
| 21 |
GB288-87 |
bearing |
2 |
| 22 |
10Y-18-00010 |
cover |
2 |
| 23 |
01010-31670 |
bolt |
24 |
| 24 |
01643-31645 |
washer |
24 |
| 25 |
10Y-18-00009 |
ring, snap |
2 |
| 26 |
10Y-18-00007 |
seal, snap |
4 |
| 27 |
10Y-18-00008 |
O-ring |
4 |
| 28 |
10Y-18-00005 |
spacer |
2 |
| 29 |
10Y-18-10000 |
bushing |
2 |
| 30 |
10Y-18-00006 |
cage |
2 |
| 31 |
10Y-18-00003 |
ring, snap |
2 |
| 32 |
16Y-18-00004 |
nut |
2 |
| 33 |
16Y-18-00003 |
plate, lock |
2 |
| 34 |
10Y-18-00002 |
cover |
2 |
| 35 |
07000-02115 |
O-ring |
2 |
| 36 |
01010-31440 |
bolt |
12 |
| 37 |
01643-31445 |
washer |
12 |
| 38 |
01010-52055 |
bolt |
8 |
| 39 |
01643-32060 |
washer |
8 |
