Shantui SD13 Idler Assembly 10Y-40-03000 10Y-40-03300

Part Name: Idler Assembly
Part Number: 10Y-40-03000 10Y-40-03300
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: [email protected]
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description
Shantui SD13 Idler Assembly 10Y-40-03000 10Y-40-03300
Part Name: Idler Assembly
Part Number: 10Y-40-03000 10Y-40-03300
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: [email protected]

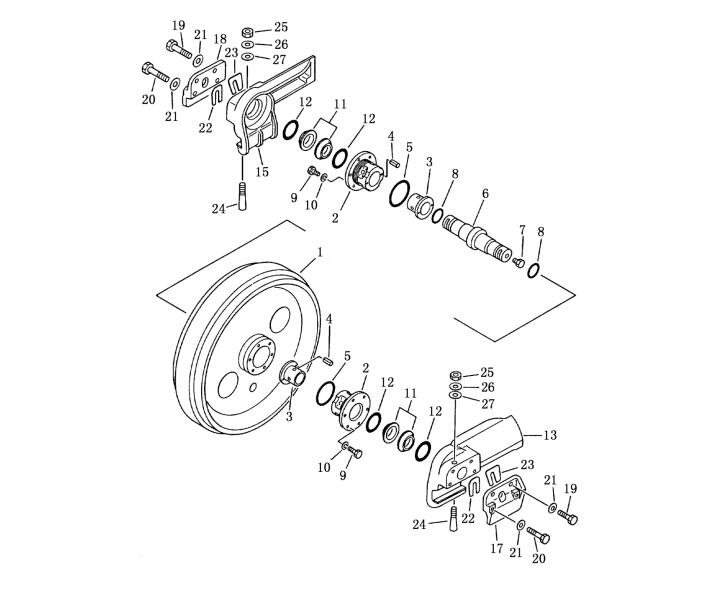

FIG.305      IDLER
Index No. Part No. Description Q’ty
10Y-40-03000  idler 2
1 10Y-40-03300  housing, idler 2
2 10Y-40-03201  bushing 2
3 10Y-40-03202  bushing 2
4 04025-00512  pin 4
5 07000-02095 O-ring 4
6 10Y-40-03004 shaft 2
7 07052-01624  plug 2
8 07000-03048  O-ring 4
9 01010-31025  bolt 24
10 01643-31032  washer 24
11 10Y-40-03003  ring seal, floating 4
12 10Y-40-03002 O-ring 4
13 10Y-40-03100  bracket, L.H 2
15 10Y-40-03400  bracket, R.H 2
17 10Y-40-03001  plate l.h 2
18 10Y-40-03005 plate r.h 2
19 01010-31645  bolt 8
20 01010-31665  bolt 8
21 01643-31645  washer 16
22 10Y-40-03006 shim, adjusting 44
23 10Y-40-03007 shim, adjusting 44
24 16Y-40-03001  pin, dowel 4
25 01582-11613  nut 4
26 01643-31645 washer, spring 4
27 01640-21626 washer 4
