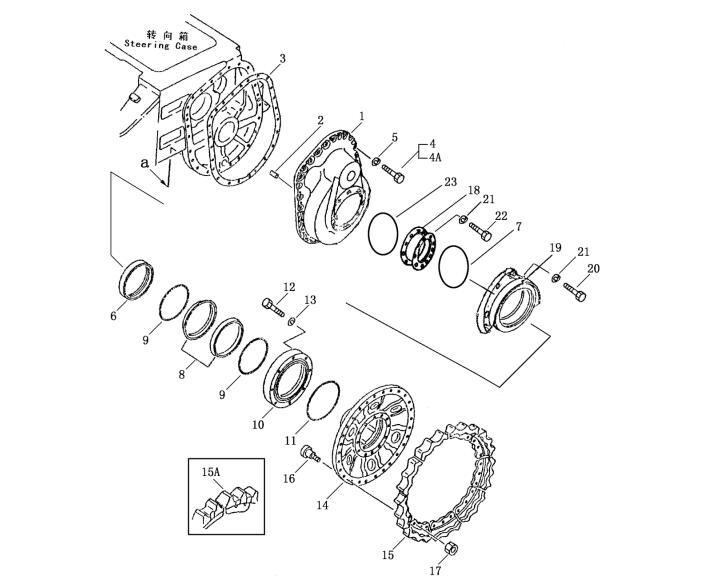

| FINAL DRIVE HOUSING AND SPROCKET | |||
| Index No. | Part No. | Description | Q’ty |
| 1 | 10Y-18-00037 | case final drive L.h | 1 |
| 10Y-18-00038 | case final drive R.h | 1 | |
| 2 | 04020-01638 | pin | 4 |
| 3 | 10Y-18-00039 | gasket | 2 |
| 4 | 01010-31450 | bolt | 30 |
| 4A | 01010-31445 | bolt | 20 |
| 5 | 01643-31445 | washer | 50 |
| 6 | 10Y-18-40000 | cage | 2 |
| 7 | 07000-05260 | O-ring | 2 |
| 8 | 10Y-18-00017 | seal ring | 4 |
| 9 | 10Y-18-00018 | O-ring | 4 |
| 10 | 10Y-18-00040 | guard | 2 |
| 11 | 07000-05260 | O-ring | 2 |
| 12 | 01010-31025 | bolt | 16 |
| 13 | 01643-31032 | washer | 16 |
| 14 | 10Y-18-00013 | hub | 2 |
| 15 | 10Y-18-00011 | teeth | 14 |
| 15A | 10Y-18-00012 | teeth | 4 |
| 16 | 09203-11860 | bolt | 50 |
| 17 | 01803-11824 | nut | 50 |
| 19 | 10Y-18-00041 | cage | 2 |
| 20 | 01010-31230 | bolt | 16 |
| 21 | 01643-31232 | washer | 16 |
| 22 | 01010-31235 | bolt | 16 |
| 23 | 07000-05280 | O-ring | 2 |
