Shantui SD13 Steering Control Valve 10Y-76-29000 144-40-00100 144-40-22211
Part Name: Steering Control Valve
Part Number: 10Y-76-29000 144-40-00100 144-40-22211
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
|

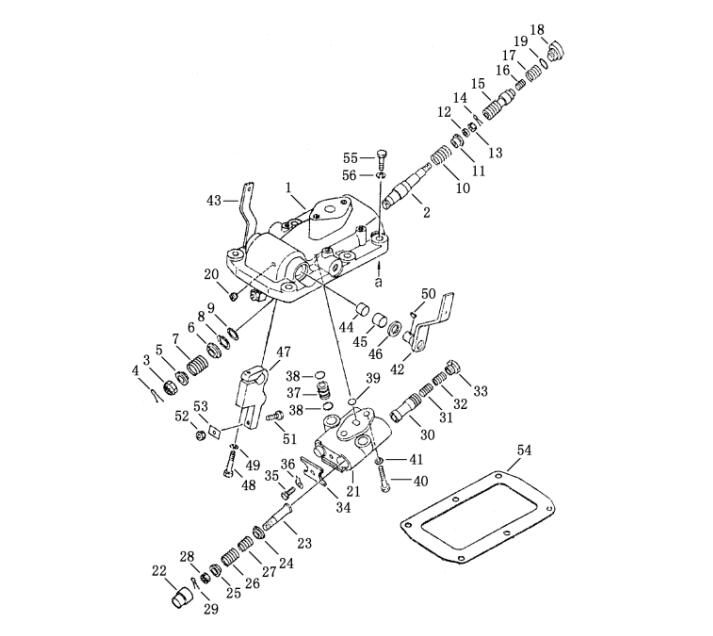

STEERING CONTROL VALVE |
|
| Index No. |
Part No. |
Description |
Q’ty |
|
10Y-76-29000 |
steering control valve |
1 |
|
(144-40-00100) |
|
|
| 1 |
144-40-22211 |
body, valve |
1 |
| 2 |
144-40-22141 |
shaft |
2 |
| 3 |
01593-11613 |
nut |
2 |
| 4 |
04050-14025 |
pin, cotter |
2 |
| 5 |
144-40-22180 |
ring, stopper |
2 |
| 6 |
144-40-22170 |
ring, stopper |
2 |
| 7 |
175-40-31230 |
spring |
2 |
| 8 |
04065-03212 |
ring |
2 |
| 9 |
195-40-13110 |
ring, stopper |
2 |
| 10 |
144-40-22350 |
spring |
2 |
| 11 |
175-40-31140 |
pedestal, guide |
2 |
| 12 |
144-40-22190 |
washer |
2 |
| 13 |
01590-10607 |
nut |
2 |
| 14 |
04050-11212 |
pin, cotter |
2 |
| 15 |
144-40-22151 |
rod, valve |
2 |
| 16 |
702-11-11190 |
piston |
2 |
| 17 |
175-40-31130 |
spring |
2 |
| 18 |
175-40-31530 |
plug |
2 |
| 19 |
07002-03034 |
O-ring |
2 |
| 20 |
07043-00108 |
plug |
1 |
| 21 |
144-40-22230 |
body ,valve |
1 |
| 22 |
144-40-22290 |
pedestal, guide |
2 |
| 23 |
144-40-22260 |
shaft |
2 |
| 24 |
144-40-22270 |
ring, stopper |
2 |
| 25 |
144-40-22280 |
ring, stopper |
2 |
| 26 |
144-40-22340 |
spring |
2 |
| 27 |
175-40-31560 |
spring |
2 |
| 28 |
01590-10607 |
nut |
2 |
| 29 |
04050-11212 |
pin ,cotter |
2 |
| 30 |
144-40-22311 |
rod, valve |
2 |
| 31 |
144-40-22320 |
piston |
2 |
| 32 |
175-40-31410 |
spring |
2 |
| 33 |
144-40-22250 |
plug |
2 |
| 34 |
144-40-22330 |
plate |
1 |
| 35 |
01010-50816 |
bolt |
1 |
| 36 |
01650-00808 |
washer, lock |
1 |
| 37 |
175-40-31510 |
tube |
2 |
| 38 |
07000-02011 |
O-ring |
4 |
| 39 |
07000-02015 |
O-ring |
1 |
| 40 |
01010-51050 |
bolt |
2 |
| 41 |
01602-21030 |
washer, spring |
2 |
| 42 |
10Y-76-29100 |
lever, L.H. |
1 |
| 43 |
144-40-22120 |
lever, R.H. |
1 |
| 44 |
09350-01820 |
bushing |
1 |
| 45 |
09350-02215 |
bushing |
2 |
| 46 |
175-40-31270 |
seal, oil |
2 |
| 47 |
144-40-22240 |
lever |
2 |
| 48 |
01010-50860 |
bolt |
2 |
| 49 |
01602-20825 |
washer, spring |
2 |
| 50 |
04010-00416 |
key |
2 |
| 51 |
144-40-22160 |
bolt |
2 |
| 52 |
01580-10806 |
nut |
2 |
| 53 |
130-21-12330 |
lock |
2 |
| 54 |
144-40-22220 |
gasket |
1 |
| 55 |
01010-51240 |
bolt |
6 |
| 56 |
01602-21236 |
washer, spring |
6 |
