Shantui SD13 Torque Convertor Oil Filter Assembly 10Y-75-03000 10Y-75-03100
Part Name: Torque Convertor Oil Filter Assembly
Part Number: 10Y-75-03000 10Y-75-03100
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
| |

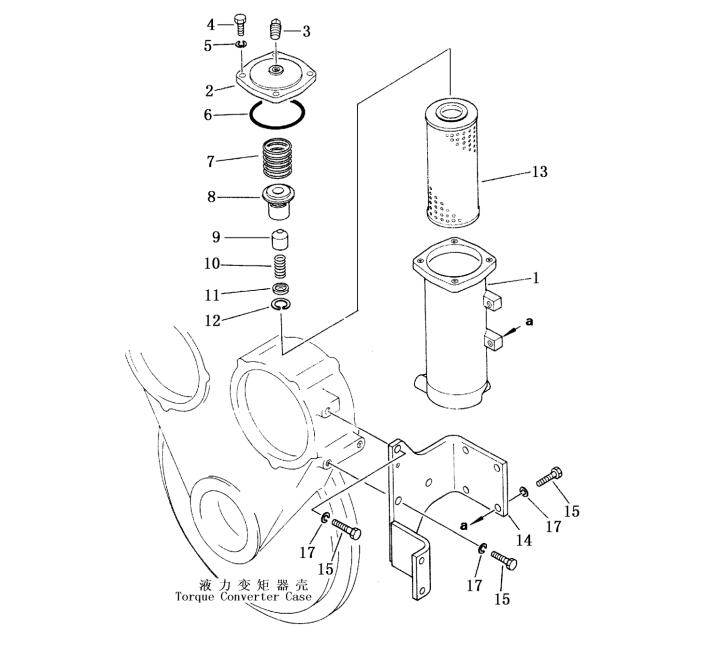

FIG.616 OIL FILTER |
|
| Index No. |
Part No. |
Description |
Q’ty |
|
10Y-75-03000 |
oil filter ass’y |
1 |
| 1 |
10Y-75-03100 |
case |
1 |
| 2 |
10Y-75-03001 |
cover |
1 |
| 3 |
07042-20108 |
plug |
1 |
| 4 |
01010-31230 |
bolt |
4 |
| 5 |
01643-11232 |
washer |
4 |
| 6 |
07000-12100 |
O-ring |
1 |
| 7 |
16Y-75-23005 |
spring |
1 |
| 8 |
16Y-75-23004 |
body valve |
1 |
| 9 |
16Y-75-23002 |
valve |
1 |
| 10 |
16Y-75-23003 |
spring |
1 |
| 11 |
16Y-75-23001 |
seat |
1 |
| 12 |
04065-03012 |
ring snap |
1 |
| 13 |
16Y-75-23200 |
element |
1 |
| 14 |
10Y-75-02000 |
bracket，oil filter |
1 |
| 15 |
01010-31230 |
bolt |
7 |
| 17 |
01643-31232 |
washer |
7 |
