Shantui SD13 Transmission Assembly 10Y-15-00000
Part Name: Transmission Assembly
Part Number: 10Y-15-00000
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com

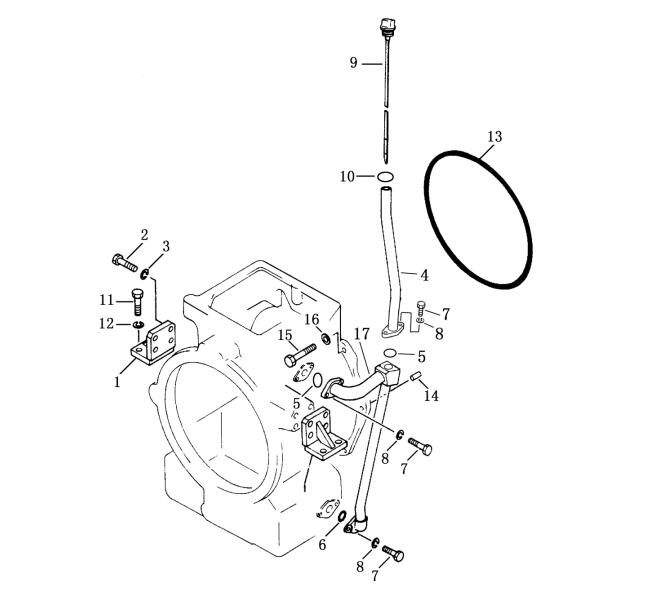

| TORQFLOW TRANSMISSION MOUNTING | |||
| Index No. | Part No. | Description | Q’ty |
| 10Y-15-00000 | transmission ass’y | 1 | |
| 1 | 10Y-15-03000 | bracket | 2 |
| 2 | 01010-31440 | bolt | 8 |
| 3 | 01643-51445 | washer | 8 |
| 4 | 10Y-15-06000 | tube | 1 |
| 5 | 07000-03035 | O-ring | 2 |
| 6 | 07000-03028 | O-ring | 1 |
| 7 | 01010-31030 | bolt | 6 |
| 8 | 01643-51032 | washer | 6 |
| 9 | 10Y-15-04000 | gauge oil | 1 |
| 10 | 07002-02434 | O-ring | 1 |
| 11 | 01010-31440 | bolt | 4 |
| 12 | 01643-51445 | washer | 4 |
| 13 | 07000-05440 | O-ring | 1 |
| 14 | 04020-01638 | pin, dowel | 1 |
| 15 | 01010-31850 | bolt | 8 |
| 16 | 01643-31845 | washer | 8 |
| 17 | 10Y-15-05000 | tube | 1 |

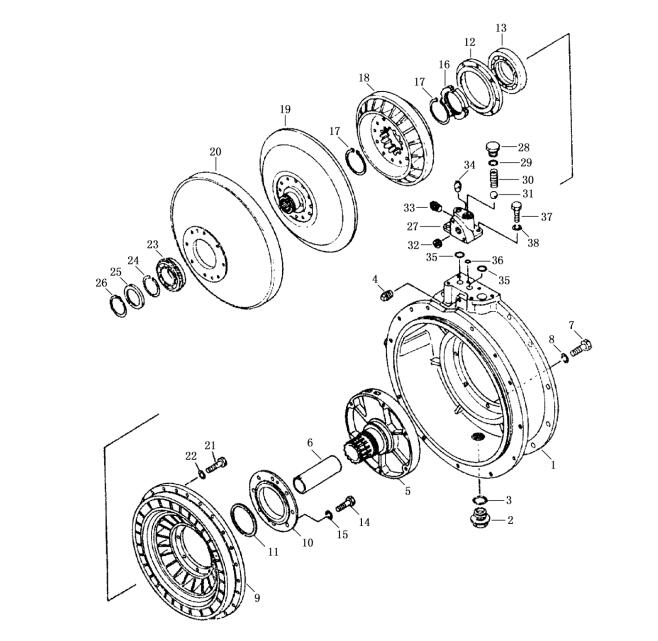

| TORQUE CONVERTOR VALVE | |||
| Index No. | Part No. | Description | Q’ty |
| 10Y-11-00000 | torque convertor ass’y | 1 | |
| 1 | 10Y-11-00003 | housing | 1 |
| 2 | 07044-13620 | plug | 1 |
| 3 | 07000-33032 | O-ring | 1 |
| 4 | 07042-20108 | plug | 1 |
| 5 | 10Y-11-00001 | shaft | 1 |
| 6 | 10Y-11-00002 | sleeve | 1 |
| 7 | 01010-31235 | bolt | 6 |
| 8 | 01643-31232 | washer | 6 |
| 9 | 10Y-11-00007 | pump | 1 |
| 10 | 10Y-11-00004 | cover | 1 |
| 11 | 07108-00954 | ring, seal | 1 |
| 12 | 10Y-11-00005 | retainer | 1 |
| 13 | GB276-82 | bearing | 1 |
| 14 | 01010-31035 | bolt | 8 |
| 15 | 01602-01030 | washer, spring | 8 |
| 16 | 10Y-11-00006 | nut | 1 |
| 17 | GB8941-86 | ring snap | 2 |
| 18 | 10Y-11-00008 | stator | 1 |
| 19 | 10Y-11-02000 | turbine | 1 |
| 20 | 10Y-11-01000 | case | 1 |
| 21 | 01010-61035 | bolt | 24 |
| 22 | 01643-31032 | washer | 24 |
| 23 | GB277-82 | bearing | 1 |
| 24 | GB305-89 | spacer | 2 |
| 25 | 10Y-11-00014 | ring | 1 |
| 26 | 04064-05020 | ring snap | 1 |
| 10Y-11-04000 | valve ass’y | 1 | |
| 27 | 10Y-11-04001 | body | 1 |
| 28 | 10Y-11-04003 | plug | 1 |
| 29 | 07000-32021 | O-ring | 1 |
| 30 | 10Y-11-04002 | spring | 1 |
| 31 | 04260-01587 | ball | 1 |
| 32 | 10Y-11-04004 | plug | 1 |
| 33 | 07042-20108 | plug | 1 |
| 34 | 07043-00108 | plug | 1 |
| 35 | 07000-33025 | O-ring | 2 |
| 36 | 07000-32014 | O-ring | 1 |
| 37 | 01010-31030 | bolt | 3 |
| 38 | 01643-31032 | washer | 3 |
