Shantui SD13 Transmission Case 10Y-15-00023
Part Name: Transmission Case
Part Number: 10Y-15-00023
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
|

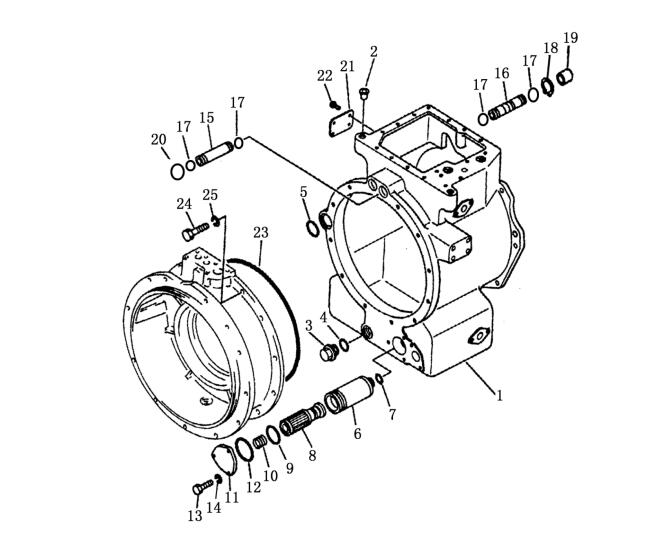

TORQFLOW TRANSMISSION CASE |
|
| Index No. |
Part No. |
Description |
Q’ty |
| 1 |
10Y-15-00023 |
case |
1 |
| 2 |
07048-01815 |
plug |
3 |
| 3 |
07044-13620 |
plug |
1 |
| 4 |
07002-03634 |
O-ring |
1 |
| 5 |
07000-73050 |
O-ring |
1 |
| 6 |
10Y-15-02000 |
case, transmission oil |
1 |
| 7 |
07000-73030 |
O-ring |
1 |
| 8 |
10Y-15-07000 |
magnet ass’y |
1 |
| 9 |
07000-72055 |
O-ring |
1 |
| 10 |
10Y-15-00001 |
spring |
1 |
| 11 |
10Y-15-00002 |
cover |
1 |
| 12 |
07000-72070 |
O-ring |
1 |
| 13 |
01010-31025 |
bolt |
3 |
| 14 |
01643-51032 |
washer |
3 |
| 15 |
10Y-15-00022 |
tube |
2 |
| 16 |
10Y-15-00036 |
tube |
1 |
| 17 |
07000-73022 |
O-ring |
6 |
| 18 |
04064-02815 |
ring, snap |
1 |
| 19 |
10Y-15-00035 |
spacer |
1 |
| 20 |
07000-73035 |
O-ring |
2 |
| 21 |
16Y-15-00074 |
plate, name |
1 |
| 22 |
04418-03060 |
screw |
4 |
| 23 |
07000-05410 |
O-ring |
1 |
| 24 |
01010-31235 |
bolt |
11 |
| 25 |
01643-51232 |
washer |
11 |
