Shantui Bulldozer SD16

Engine Power: 120kw or 131kW/1850rpm
Engine Model: Weichai WD10G178E25 or WP10
Track Shoes Width: 510/ 560/ 610mm
Overall Weight: 17,000kg (Standard)
Models for different condition: SD16, SD16C, SD16E, SD16F, SD16, SD16R
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

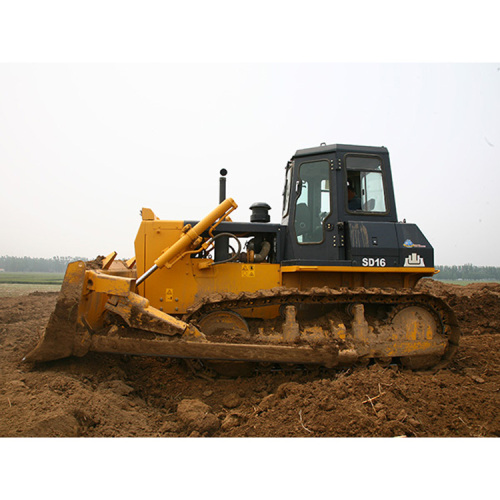

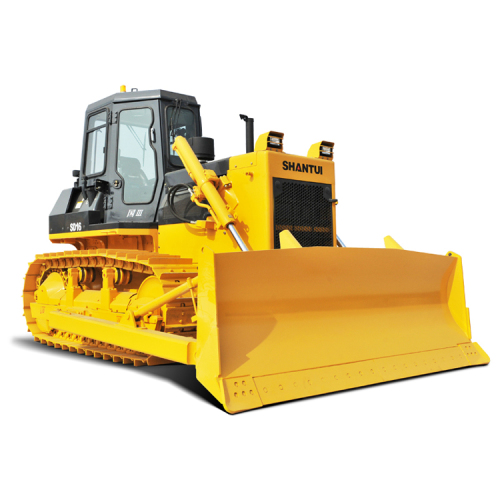

SHANTUI BULLDOZER SD16

160HP Hydraulic Drive Bulldozer



Engine Power: 120kw or 131kW/1850rpm

Engine Model: Weichai WD10G178E25 or WP10

Blade Capacity: * Straight Titling Blade-4.5M3 * ,Angle Blade-4.3M3 ,* U Blade-5.0M3

Track Shoes Width: 510/ 560/ 610mm

Overall Weight: 17,000kg (Standard)

Models for different condition: SD16, SD16C, SD16E, SD16F, SD16, SD16R

SHANTUI SD16 hydraulic bulldozer has the characteristics of high science and technology content, advanced and reasonable design, strong power, high production efficiency, can adapt to the harsh working environment, convenient maintenance, mainly suitable for farmland, water conservancy, highway, railway, minerals, airports and so on, indispensable for defense engineering, mineral construction, urban and rural roads, water conservancy construction and others to push, excavate, backfill earthwork and other bulk material operations.  It is indispensable machinery and equipment for national defense projects, urban and rural road construction and water conservancy construction.

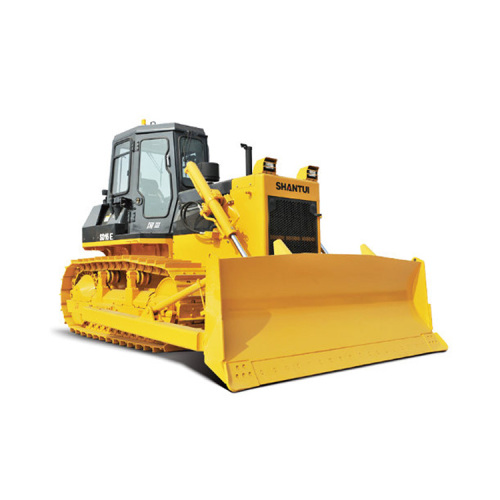

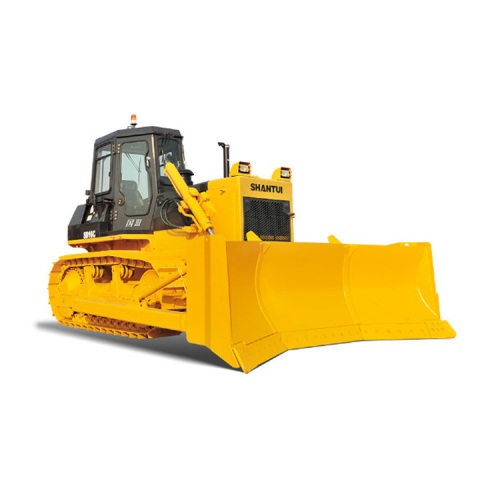

SD16, SD16C, SD16E, SD16F, SD16L & SD16R bulldozers are of the hydraulic drive type with power up to 120kw (160hp). Shantui SD16 Bulldozer Specifications Compact Construction Dozer for Sale



Power System

●The installed WP10 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

●The rated power reaches 131kW, featuring high torque reserve coefficient.

●The radially sealed intake system is applied to effectively prolong the engine life.



Drive system

● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.

● Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.



Driving/Riding Environment

● Hexahedral cab, large internal space and open vision, FOPS/ROPS can be configured according to requirements, safe and reliable;
● Electronic control and foot throttle, more accurate operation and more comfortable;
● Configuration intelligent display control terminal, heating and cooling air conditioning, etc., to provide more humane driving experience, let you know the system status at any time, intelligent and convenient.



PARAMETER

Parameter name SD16 SD16C SD16E SD16L SD16R
(Standard version)  (Coal version)  (Extended version) Super-wetland version (Environmental sanitation version)
Performance parameters
Operating weight (Kg) 17000 17500 17346 18400 18400
Ground pressure (kPa) 58 50 55 25 25
Engine
Engine model WD10(China-II)/WP10(China-III) WD10(China-II)/WP10(China-III) WD10(China-II)/WP10(China-III) WD10(China-II)/WP10(China-III) WD10(China-II)/WP10(China-III)
Rated power/rated speed (kW/rpm) 131/1850 131/1850 131/1850 131/1850 131/1850
Overall dimensions
Overall dimensions of machine (mm) 5140*3388*3032 5427*3900*3032 5345*3388*3032 5262*4150*3074 5262*4150*3074
Driving performance
Forward speed (km/h) F1:0-3.29,F2:0-5.82,F3:0-9.63 F1:0-3.29,F2:0-5.82,F3:0-9.63 F1:0-3.29,F2:0-5.82,F3:0-9.63 F1:0-3.29,F2:0-5.82,F3:0-9.63 F1:0-3.29,F2:0-5.82,F3:0-9.63
Reversing speed (km/h) R1:0-4.28,R2:0-7.59,R3:0-12.53 R1:0-4.28,R2:0-7.59,R3:0-12.53 R1:0-4.28,R2:0-7.59,R3:0-12.53 R1:0-4.28,R2:0-7.59,R3:0-12.53 R1:0-4.28,R2:0-7.59,R3:0-12.53

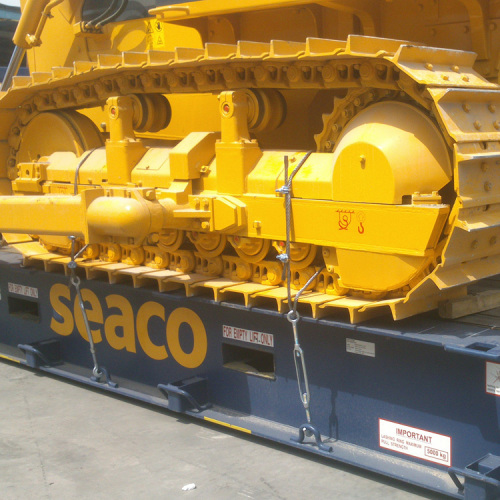

Chassis System
Center distance of track (mm) 1880 1880 1880 2300 2300
Width of track shoes (mm) 510/560/610 610 560/510/610 1100/950 1100/660
Ground lengthmm 2430 2430 2635 2935 2935
Tank capacity
Fuel tank (L) 315 315 315 315 315
Working device
Blade type Angle Blade, Straight tilting blade and U-shaped Blade Coal blade Angle Blade, Straight tilting blade and U-shaped Blade Straight tilting blade Sanitation blade
Digging depth (mm) 540 540 540 485 485
Ripper type Three-tooth ripper —— Three-tooth ripper —— ——
Ripping depth (mm) 570 —— 570 —— ——
