Shantui SD16 Flywheel Housing 16Y-02N-00001
Part Name: Flywheel Housing
Part Number: 16Y-02N-00001
Machine Model: SD16
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
We are 13 years construction machine and parts supplier. We supply bulldozer parts factory price for sale, Shantui brand SD16 bulldozer parts good quality available in store for deliver.

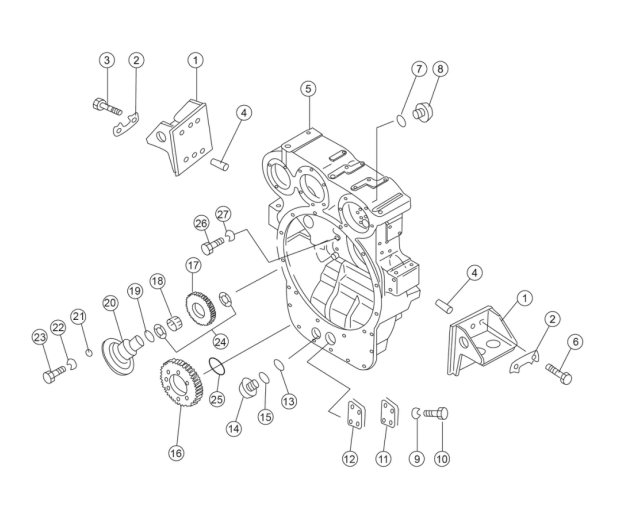

| ITEM |
PART NO. |
PART NAME |
|
| Q'TY |
| 1 |
16Y-02A-70000 |
BRACKET |
2 |
| 2 |
16Y-02A-00043 |
PLATE |
4 |
| 3 |
01010-81845 |
BOLT |
6 |
| 4 |
04020-01434 |
PIN |
4 |
| 5 |
16Y-02N-00001 |
FLYWHEEL HOUSING |
1 |
| 6 |
01010-81840 |
BOLT |
2 |
| 7 |
07000-72010 |
O-RING |
1 |
| 8 |
16Y-02A-00042 |
PLUG |
1 |
| 9 |
01643-30823 |
WASHER |
4 |
| 10 |
01010-80816 |
BOLT |
4 |
| 11 |
16Y-02A-00029 |
COVER |
1 |
| 12 |
16Y-02A-00030 |
WASHER |
1 |
| 13 |
07000-73032 |
O-RING |
1 |
| 14 |
16Y-02A-00001 |
PLUG |
1 |
| 15 |
16Y-02A-00002 |
WASHER |
1 |
| 16 |
114J-02A-00001 |
GEAR |
1 |
| 17 |
16Y-02A-00006 |
GEAR |
1 |
| 18 |
16Y-02A-50000 |
BEARING |
1 |
| 19 |
07000-72015 |
O-RING |
1 |
| 20 |
16Y-02A-00007 |
SHAFT |
1 |
| 21 |
07046-12016 |
PLUG |
3 |
| 22 |
16Y-02A-00009 |
WASHER |
3 |
| 23 |
16Y-02A-00008 |
BOLT |
3 |
| 24 |
16Y-02A-00044 |
WASHER |
2 |
| 25 |
16Y-02N-00009 |
O-RING |
1 |
| 26 |
16Y-02N-00008 |
BOLT |
14 |
| 27 |
16Y-02N-00004 |
WASHER |
14 |
