Shantui Bulldozer Spare Parts SD16 Carrier Roller Ass’y 16Y-40-06000,16Y-40-06004
Part Name:Carrier Roller Ass’y
Part Number: 16Y-40-06000,16Y-40-06004
Machine Model:Shantui SD16,SD16E,SD16L

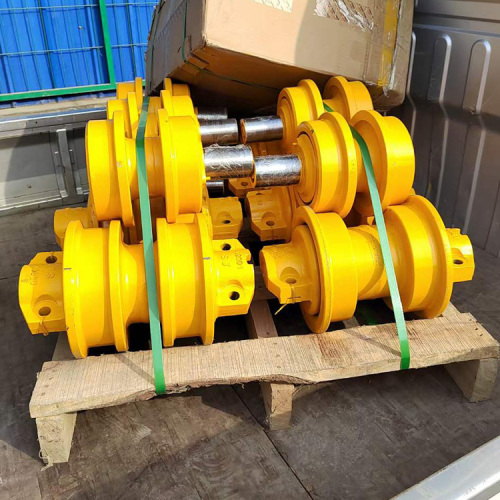

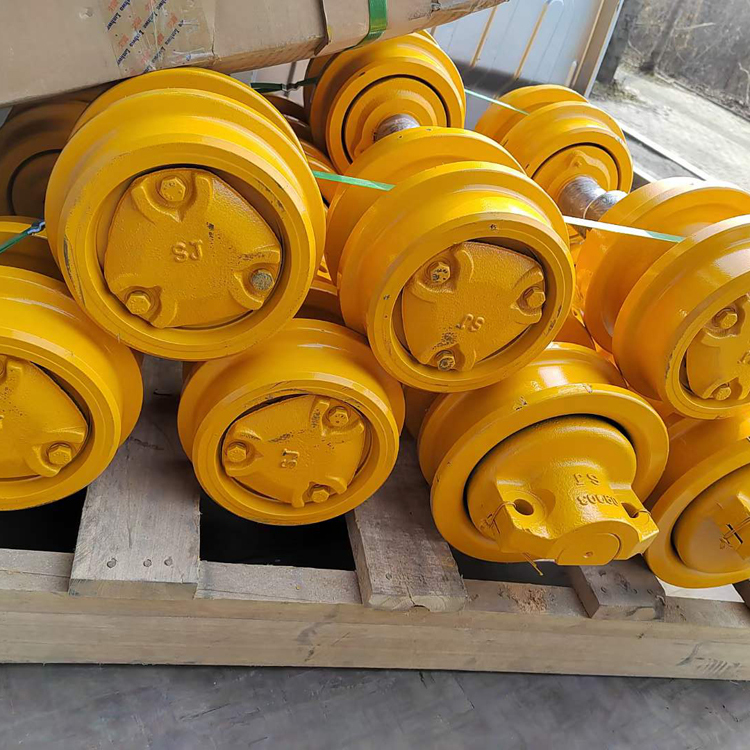

Shantui SD16 Bulldozer Carrier Roller Assembly for Sale 16Y-40-06000,16Y-40-06004.
| ITEM | PART NO. | PART NAME | Q'TY |
| 0 | 16Y-40-06000 | CARRIER ROLLER | 4 |
| 1 | 16Y-40-06004 | CARRIER ROLLER BODY | 4 |
| 2 | 16Y-40-06005 | SHAFT | 4 |
| 3 | GB297-30210 | ROLLER BEARING | 8 |
| 4 | 16Y-40-06006 | LOCK NUT | 4 |
| 5 | 16Y-40-06008 | RING | 4 |
| 6 | 16Y-40-06007 | CARRIER ROLLER COVER | 4 |
| 7 | 07000-12085 | O-RING | 4 |
| 8 | 01010-51025 | BOLT | 12 |
| 9 | 01602-21030 | WASHER | 12 |
| 10 | 16Y-40-03005 | RING,FLOAT SEAL | 8 |
| 11 | 16Y-40-03006 | O-RING | 8 |
| 12 | 16Y-40-06003 | SEAT,FLOAT SEAL | 4 |
| 13 | 16Y-40-06002 | COVER,FLOAT SEAL | 4 |
| 14 | 07000-13120 | O-RING | 4 |
| 15 | 07000-13055 | O-RING | 4 |
| 16 | 04020-00616 | PIN | 12 |
| 17 | 04064-06020 | RETAINER | 4 |
| 18 | 07052-31624 | PLUG | 4 |
| 19 | 16Y-40-06001 | BRACKET | 4 |
