Shantui SD16 Parts Radiator assembly 16Y-03A-03000

Part Name:Radiator assembly
Part Number: 16Y-03A-03000
Machine Model:Shantui Bulldozer SD16
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

Shantui Bulldozer Spare Parts SD16 Radiator assembly 16Y-03A-03000

Part Name:Radiator assembly

Part Number: 16Y-03A-03000
Machine Model:Shantui Bulldozer SD16

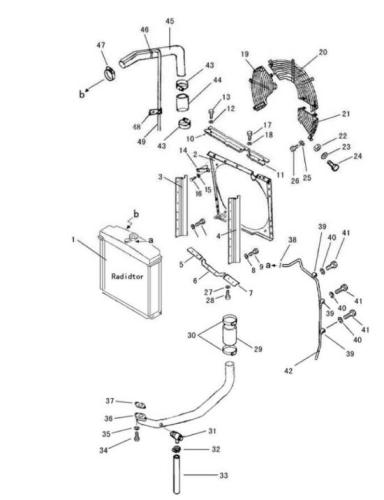

RADIATOR PIPINGANDWIND BREAK

Fig & Index No.

Part Xo.

Description



Q'ty

1

16Y-03A-03000

Radiator assT y

1

2

16Y-03A-09000

guard



1

3

16Y-03A-07000

wind-break

R, H

1

4

16Y-03A-02000

wi nd-break

L, H

1

5

16Y-03A-13000

wind-break



1

6

16Y-03A-12000

wi nd-break



1

7

16Y-03A-11000

wind-break



1

8

01643-31032

washer



12

9

010J0-5W40

bolt



12

10

16Y-03A-05000

wind-break,

tipper

1

11

16Y-03A'06000

wind-break,

upper

1

12

01643-31032

washer



3

13

010J0-5W30

bolt



3

14

16Y-03A-15000

pi n



1

15

01643-31032

washer



1

16
