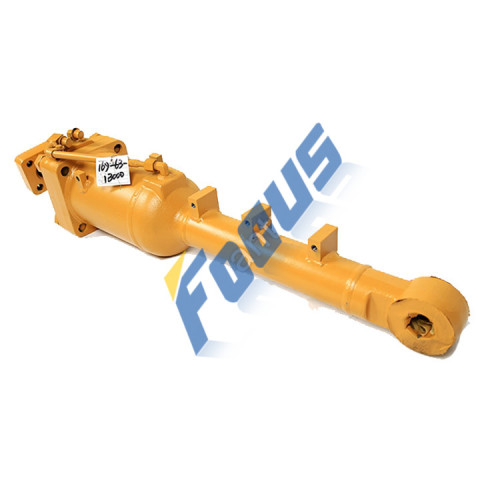

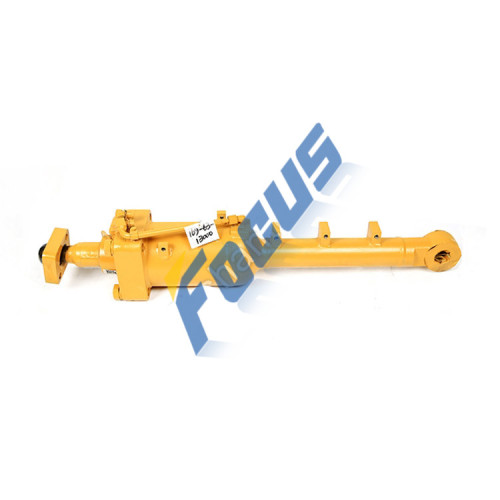

Shantui SD16 Parts Tilt cylinder 16Y-63-13000

Part Name:Tilt cylinder
Part Number: 16Y-63-13000
Machine Model:Shantui Dozer  SD16
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

Shantui Dozer Spare Parts SD16 Tilt cylinder 16Y-63-13000

Part Name:Tilt cylinder

Part Number: 16Y-63-13000

Machine Model:Shantui Dozer  SD16

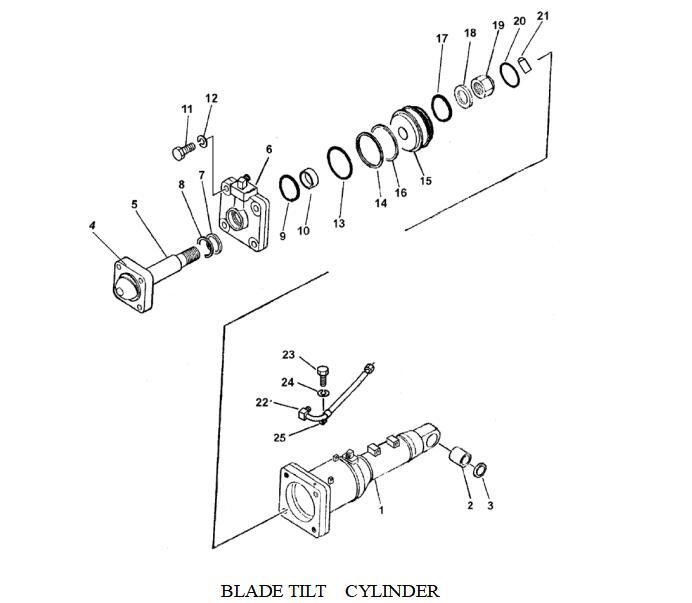

BLADE TILT CYLINDER

INDEX NO.



PART NO.



DESCRIPION

QTY

SD16

SD16E





1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

16Y-63-13000

16Y-63-13100

07143-10505

16Y-63-13600

16Y-63-13004

16Y-63-13300

16Y-63-13200

16Y-63-13006

16Y-63-13005

16Y-63-13400

16Y-63-13007

01010-32770

01602-22783

07000-05150

16Y-63-13008

16Y-63-13003

16Y-63-13500

07000-12055

16Y-63-13002

16Y-63-13001

04059-01025

01322-30820

16Y-63-13700

01010-30810

01642-00810

16Y-63-13009

tilt cylinder cylinder ass’y bushing

seal dust

seat

          rod , piston

         cover ass’y

   ring

seal dust

seal

ring

bolt

washer

O-ring

ring, support

piston

ring

O-ring

washer

nut

wire

screw

 oil piping ass’y

bolt

  washer

  clip

1

1

1

2

1

1

1

1

1

1

1

4

4

1

2

1

1

1

1

1

1

1

1

1

1

1
