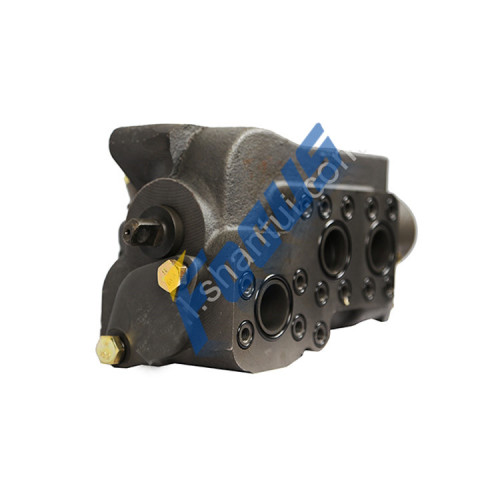

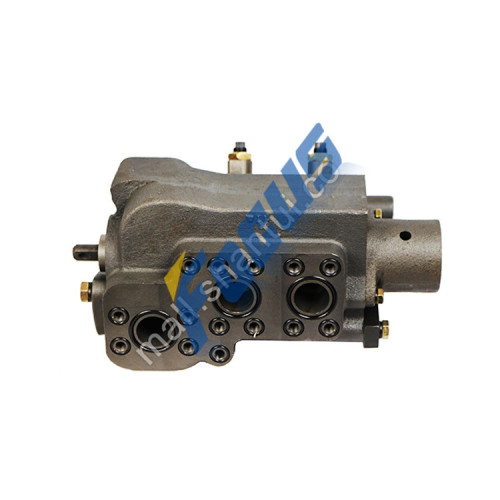

Shantui SD16 Parts Valve gp-blade 16Y-60-05000

Part Name:Valve gp-blade
Part Number: 16Y-60-05000
Machine Model:Shantui Bulldozer  SD16
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

Shantui Bulldozer Spare Parts SD16 Valve gp-blade 16Y-60-05000



Part Name:Valve gp-blade

Part Number: 16Y-60-05000

Machine Model:Shantui Bulldozer  SD16





HYDRAULIC CONTROL VALVE(FOR BLADE)

INDEX NO.

PART NO.

DESCRIPTION

Q'TY

1



1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

16Y-60-05000 (701-33-12006)

701-33-32005

701-33-32113

701-33-32221

701-33-31480

701-33-31470

701-33-32130

701-33-32140

701-33-32152

07000-13025

04020-00514

701-33-32160

01010-31240

01602-01236

701-33-31370

701-31-31130

701-33-31210

01010-31220

01602-01236

701-33-46340

701-33-31460

01010-31095

01602-01030

701-33-31120

701-33-31130

701-33-31150

07000-13035

701-33-31160

01010-31235

01602-01236

701-31-31121

hydraulic control valve ass’y

 valve body ass’y

body, control valve collar

spool

spool

element, valve

spring

seat

O-ring

pin, dowel plate

bolt

washer retainer spring

washer

bolt

washer

plate

collar

bolt

washer

valve, check spring

seat

O-ring

plate

bolt

washer

detent

1



1

1

1

1

1

1

1

1

1

1

1

2

2

2

1

1

1

1

1

2

2

2

1

1

1

1

1

1

2

1
