Shantui SD16 SD16L Ripper Oil Cylinder Assy 16Y-84-60000
Part Name: Valve Assembly
Part Number: 16Y-84-60000
Machine Model: SD16 SD16L
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
We are 13 years construction machine and parts supplier. We supply bulldozer parts factory price for sale, Shantui brand SD16 bulldozer parts good quality available in store for deliver.
|

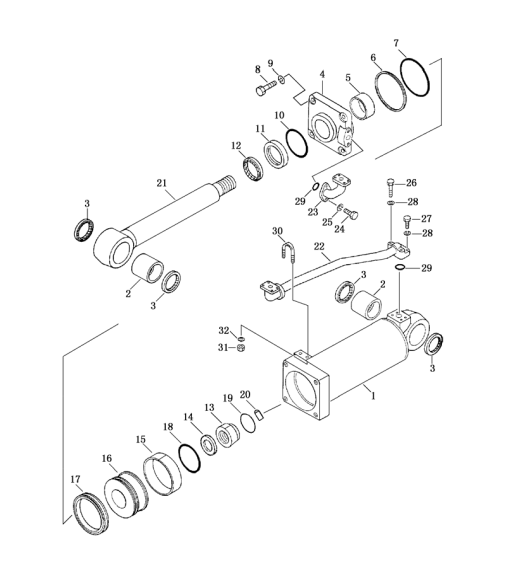

PART NO. |
DESCRIPION |
Q’TY |
| SD16 SD16E |
|
16Y-84-60000 |
cylinder ass’y |
1 |
| 1 |
16Y-84-62000 |
cylinder |
1 |
| 1 |
16Y-84-62100 |
cylinder |
1 |
| 2 |
07143-10707 |
bushing |
2 |
| 3 |
07145-00075 |
seal dust |
4 |
| 4 |
16Y-84-62004 |
bushing |
1 |
| 5 |
16Y-84-62005 |
ring, support |
1 |
| 6 |
07146-05152 |
ring, guard |
1 |
| 7 |
07000-05150 |
O-ring |
1 |
| 8 |
01010-52770 |
bolt |
4 |
| 9 |
01643-32780 |
washer |
4 |
| 10 |
16Y-84-62400 |
seal |
1 |
| 11 |
16Y-84-62006 |
packing |
1 |
| 12 |
16Y-84-62007 |
seal, dust |
1 |
| 13 |
16Y-84-62001 |
nut |
1 |
| 14 |
16Y-84-62003 |
washer |
1 |
| 15 |
16Y-63-13008 |
bushing |
2 |
| 16 |
16Y-84-62002 |
piston |
1 |
| 17 |
16Y-63-13500 |
ring |
1 |
| 18 |
07000-12055 |
O-ring |
1 |
| 19 |
04059-01025 |
wire |
1 |
| 20 |
01322-30820 |
screw |
1 |
| 21 |
16Y-84-62200 |
rod, piston |
1 |
| 22 |
16Y-84-61000 |
pipe |
1 |
| 23 |
16Y-84-63000 |
flange |
1 |
| 24 |
01010-51435 |
bolt |
2 |
| 25 |
01602-21442 |
washer |
2 |
| 26 |
01010-50850 |
bolt |
2 |
| 27 |
01010-50840 |
bolt |
2 |
| 28 |
01601-20825 |
washer |
4 |
| 29 |
07000-13030 |
O-ring |
2 |
| 30 |
07283-22738 |
clip |
1 |
| 31 |
01598-11011 |
nut, lock |
2 |
| 32 |
01640-21016 |
washer |
2 |
