Shantui SD16 SD16L Sprocket Hub 16Y-18-00045
Part Name:Sprocket Hub
Part Number: 16Y-18-00045
Machine Model: SD16 SD16L
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
We are 13 years construction machine and parts supplier. We supply bulldozer parts factory price for sale, Shantui brand SD16 bulldozer parts good quality available in store for deliver.

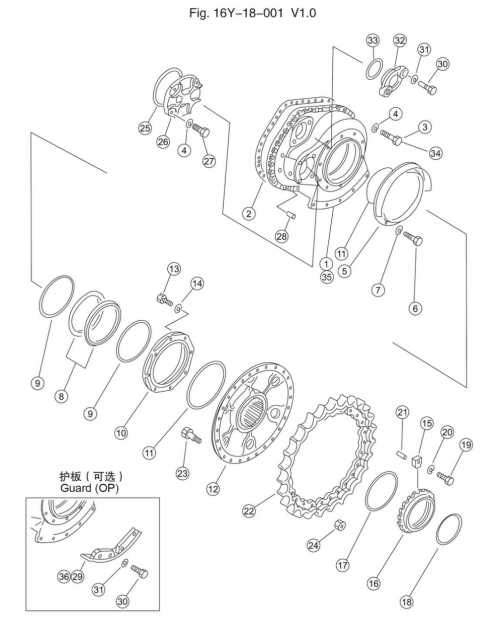

| FINAL DRIVE BOX AND SPROCKET WHEEL |
|
|
|
| ITEM |
PART NO. |
PART NAME |
|
| Q'TY |
| 1 |
16Y-18-00019 |
HOUSING(L.H.) |
1 |
| 2 |
16Y-18-00037 |
GASKET |
2 |
| 3 |
01010-51435 |
BOLT |
44 |
| 4 |
01602-21442 |
WASHER |
74 |
| 5 |
16Y-18-00041 |
COVER,DUST |
2 |
| 6 |
01010-51025 |
BOLT |
20 |
| 7 |
01602-21030 |
WASHER |
20 |
| 8 |
16Y-18-00034 |
OIL SEAL,FLOAT |
4 |
| 9 |
16Y-18-00035 |
O-RING |
4 |
| 10 |
16Y-18-00042 |
COVER,DUST |
2 |
| 11 |
07000-15345 |
O-RING |
4 |
| 12 |
16Y-18-00045 |
SPROCKET HUB |
2 |
| 13 |
01010-50825 |
BOLT |
16 |
| 14 |
01602-20825 |
WASHER |
16 |
| 15 |
16Y-18-00012 |
LOCK BLOCK |
2 |
| 16 |
16Y-18-00011 |
LOCK NUT |
2 |
| 17 |
07000-15270 |
O-RING |
2 |
| 18 |
07000-15230 |
O-RING |
2 |
| 19 |
01252-71635 |
BOLT |
2 |
| 20 |
01602-21648 |
WASHER |
2 |
