Shantui SD16 SD16L Sprocket Segment Bolt and Nut 16Y-18-00013 01803-02228
Part Name: Sprocket Segment Bolt and Nut
Part Number: 16Y-18-00013 01803-02228
Machine Model: SD16 SD16L
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
We are 13 years construction machine and parts supplier. We supply bulldozer parts factory price for sale, Shantui brand SD16 bulldozer parts good quality available in store for deliver.

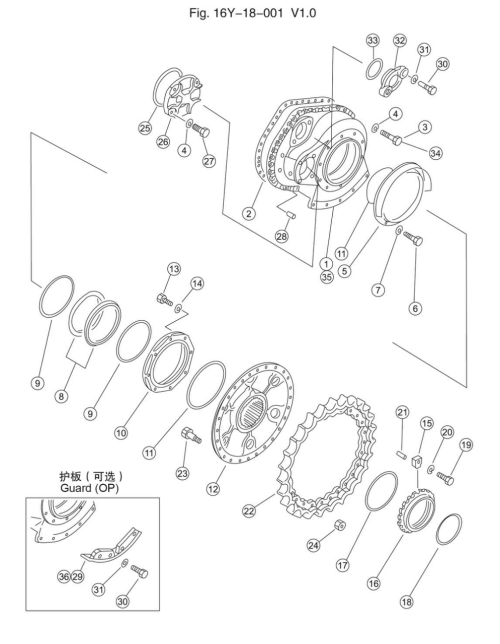

| ITEM |
PART NO. |
PART NAME |
|
| Q'TY |
| 1 |
16Y-18-00019 |
HOUSING(L.H.) |
1 |
| 2 |
16Y-18-00037 |
GASKET |
2 |
| 3 |
01010-51435 |
BOLT |
44 |
| 4 |
01602-21442 |
WASHER |
74 |
| 5 |
16Y-18-00041 |
COVER,DUST |
2 |
| 6 |
01010-51025 |
BOLT |
20 |
| 7 |
01602-21030 |
WASHER |
20 |
| 8 |
16Y-18-00034 |
OIL SEAL,FLOAT |
4 |
| 9 |
16Y-18-00035 |
O-RING |
4 |
| 10 |
16Y-18-00042 |
COVER,DUST |
2 |
| 11 |
07000-15345 |
O-RING |
4 |
| 12 |
16Y-18-00045 |
SPROCKET HUB |
2 |
| 13 |
01010-50825 |
BOLT |
16 |
| 14 |
01602-20825 |
WASHER |
16 |
| 15 |
16Y-18-00012 |
LOCK BLOCK |
2 |
| 16 |
16Y-18-00011 |
LOCK NUT |
2 |
| 17 |
07000-15270 |
O-RING |
2 |
| 18 |
07000-15230 |
O-RING |
2 |
| 19 |
01252-71635 |
BOLT |
2 |
| 20 |
01602-21648 |
WASHER |
2 |
| 21 |
04020-01228 |
PIN |
2 |
| 22 |
16Y-18-00049 |
TOOTH BLOCK |
18 |
| 23 |
16Y-18-00013 |
BOLT |
54 |
| 24 |
01803-02228 |
NUT |
54 |
| 25 |
07000-15160 |
O-RING |
2 |
| 26 |
16Y-18-00048 |
COVER |
2 |
| 27 |
01010-51430 |
BOLT |
8 |
| 28 |
16Y-18-00046 |
PIN,DOWEL |
4 |
| 29 |
16Y-18-04000A |
GUARD PLATE(L.H.) |
1 |
| 30 |
01010-52050 |
BOLT |
12 |
| 31 |
01602-22060 |
WASHER |
12 |
| 32 |
16Y-18-00047 |
COVER |
2 |
| 33 |
07000-15110 |
O-RING |
2 |
| 34 |
01010-51440 |
BOLT |
22 |
| 35 |
16Y-18-00020 |
HOUSING(R.H.) |
1 |
| 36 |
16Y-18-05000A |
GUARD PLATE(R.H.) |
1 |
|
|
|
|
