Shantui SD16 SD16L Transmission Body 16Y-15-00001
Part Name: Transmission Body
Part Number: 16Y-15-00001
Machine Model: SD16 SD16L
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
We are 13 years construction machine and parts supplier. We supply bulldozer parts factory price for sale, Shantui brand SD16 bulldozer parts good quality available in store for deliver.

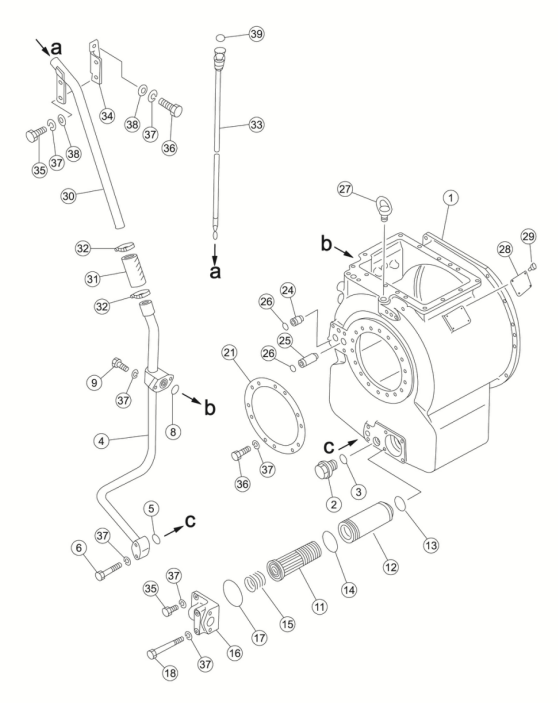

| ITEM |
PART NO. |
PART NAME |
Q'TY |
| 0 |
16Y-15-00000 |
TRANSMISSION CASE |
1 |
| 1 |
16Y-15-00001 |
BOX BODY |
1 |
| 2 |
07044-13620 |
PLUG |
1 |
| 3 |
07002-13634 |
O-RING |
1 |
| 4 |
16Y-15-02100 |
OIL TUBE |
1 |
| 5 |
07000-13028 |
O-RING |
1 |
| 6 |
01010-81060 |
BOLT |
2 |
| 8 |
07000-13035 |
O-RING |
1 |
| 9 |
01010-81030 |
BOLT |
2 |
| 11 |
16Y-15-07000 |
FILTER ELEMENT |
1 |
| 12 |
16Y-15-08000 |
FILTER CLEANER CASING |
1 |
| 13 |
07000-13045 |
O-RING |
1 |
| 14 |
07000-12075 |
O-RING |
1 |
| 15 |
16Y-15-00087 |
SPRING |
1 |
| 16 |
16Y-15-00086 |
COVER |
1 |
| 17 |
07000-12090 |
O-RING |
1 |
| 18 |
01010-81090 |
BOLT |
2 |
| 21 |
16Y-15-00005 |
PLATE |
1 |
| 24 |
16Y-15-00021 |
SLEEVE |
1 |
| 25 |
16Y-15-00020 |
SLEEVE |
1 |
