Shantui SD16 SD16L Turbin Shaft 16Y-11-00018
Part Name: Turbin Shaft
Part Number: 16Y-11-00018
Machine Model: SD16 SD16L
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
We are 13 years construction machine and parts supplier. We supply bulldozer parts factory price for sale, Shantui brand SD16 bulldozer parts good quality available in store for deliver.

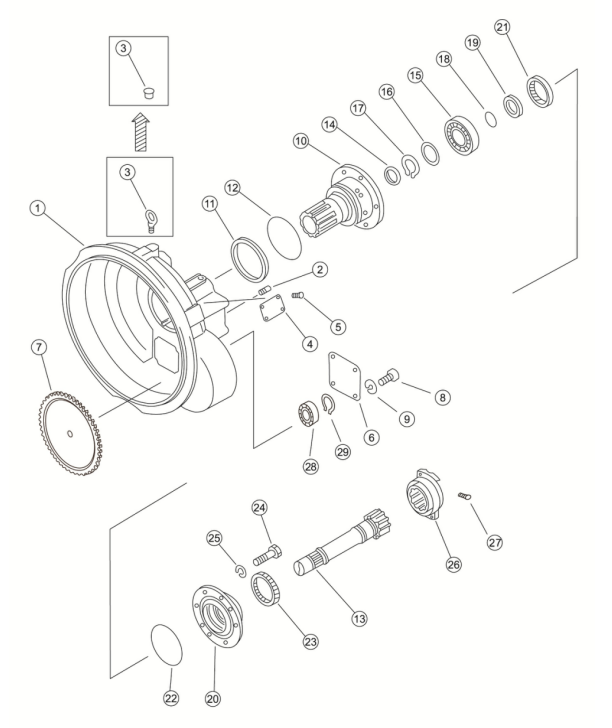

| ITEM |
|
PART NAME |
|
| PART NO. |
Q'TY |
| 0 |
16Y-11-00000 |
TORQUE CONVERTER ASS＇Y |
1 |
| 1 |
16Y-11-00009 |
HOUSING BODY |
1 |
| 2 |
07042-20108 |
PLUG |
1 |
| 3 |
04530-11628 |
BOLT,HOISTING EYE |
1 |
| 4 |
YJ380-BP01 |
LABEL PLATE |
1 |
| 5 |
04418-03060 |
RIVET |
4 |
| 6 |
175-13-23220A |
COVER |
1 |
| 7 |
16Y-11-00008 |
GEAR |
1 |
| 8 |
01010-81235 |
BOLT |
4 |
| 10 |
16Y-11-00011 |
SEAT,GUIDE |
1 |
| 11 |
154-13-42710 |
SEAL RING |
1 |
| 12 |
07000-75140 |
O-RING |
1 |
| 13 |
16Y-11-00018 |
TURBINE SHAFT |
1 |
| 14 |
16Y-11-00003 |
SEAL RING |
1 |
| 15 |
GB276-6311C4 |
BEARING |
1 |
| 16 |
16Y-11-00004 |
WASHER |
1 |
| 17 |
04064-05520 |
RETAINER |
1 |
| 18 |
16Y-11-00006 |
O-RING |
1 |
| 19 |
16Y-11-00007 |
RING SEAT |
1 |
| 20 |
16Y-11-00005 |
COVER |
1 |
| 21 |
07012-70080 |
OIL SEAL |
1 |
| 22 |
07000-72135 |
O-RING |
1 |
| 23 |
175-13-22730 |
SEAL RING |
1 |
| 24 |
01010-81245 |
BOLT |
6 |
| 25 |
01602-21236 |
WASHER |
10 |
| 26 |
16Y-11-10000 |
COUPLING |
1 |
| 27 |
07020-00613 |
OIL CUP |
1 |
| 28 |
GB296-3206C3 |
BEARING |
1 |
| 29 |
04064-03015 |
RETAINER |
1 |
