Shantui SD16 SD16L Valve Assembly 155-60-12500
Part Name: Valve Assembly
Part Number: 155-60-12500
Machine Model: SD16 SD16L
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
We are 13 years construction machine and parts supplier. We supply bulldozer parts factory price for sale, Shantui brand SD16 bulldozer parts good quality available in store for deliver.

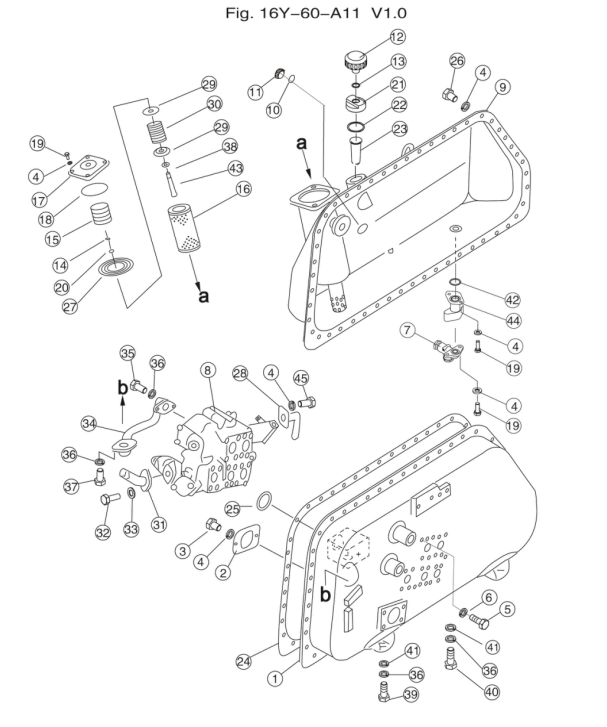

| ITEM |
PART NO. |
PART NAME |
|
| Q'TY |
| 1 |
16Y-60-20000 |
OIL TANK HOUSING |
1 |
| 2 |
16Y-60-14000 |
NET |
1 |
| 3 |
01010-51016 |
BOLT |
2 |
| 4 |
01602-21030 |
WASHER |
61 |
| 5 |
01010-51225 |
BOLT |
3 |
| 6 |
01602-21236 |
WASHER |
3 |
| 7 |
155-60-12500 |
VALVE ASS＇Y |
1 |
| 8 |
16Y-60-05000 |
CONTROL VALVE ASS＇Y |
1 |
| 9 |
16Y-60-03000 |
OIL TANK COVER |
1 |
| 10 |
07008-22450 |
O-RING |
1 |
| 11 |
07715-11000 |
TEMPERED GLASS |
1 |
| 12 |
16Y-60-17002 |
BREATHER |
1 |
| 13 |
07000-13022 |
O-RING |
|
| 14 |
04050-02020 |
PIN,COTTER |
1 |
| 15 |
16Y-60-00005 |
SPRING |
1 |
| 16 |
16Y-60-13000 |
FILTER ELEMENT |
1 |
| 17 |
16Y-60-01000 |
COVER |
1 |
| 18 |
07000-12125 |
O-RING |
1 |
| 19 |
01010-51030 |
BOLT |
6 |
| 20 |
01590-30809 |
NUT |
1 |
| 21 |
114C-60-00001 |
NUT |
1 |
| 22 |
16Y-60-17003 |
PAD |
1 |
| 23 |
16Y-60-00013 |
FILTER SCREEN |
1 |
| 24 |
16Y-60-00003 |
PAD |
1 |
| 25 |
16Y-60-00002 |
O-RING |
1 |
| 26 |
01010-51025 |
BOLT |
49 |
| 27 |
16Y-60-00004 |
SEAT |
1 |
| 28 |
16Y-60-06000 |
SCAVENGE PIPE |
1 |
| 29 |
16Y-60-00010 |
SEAT |
2 |
| 30 |
16Y-60-00009 |
SPRING |
1 |
| 31 |
16Y-60-15000 |
RELIEF TUBE |
1 |
| 32 |
01010-50825 |
BOLT |
2 |
| 33 |
01602-20825 |
WASHER |
2 |
| 34 |
16Y-60-04000 |
TUBE |
1 |
| 35 |
01010-51445 |
BOLT |
2 |
| 36 |
01602-21442 |
WASHER |
9 |
| 37 |
01010-51440 |
BOLT |
2 |
| 38 |
01640-21223 |
WASHER |
1 |
| 39 |
01010-51460 |
BOLT |
4 |
| 40 |
01010-51450 |
BOLT |
1 |
| 41 |
01643-31445 |
WASHER |
5 |
| 42 |
07000-13035 |
O-RING |
1 |
| 43 |
16Y-60-00008 |
BOLT |
1 |
| 44 |
16Y-60-18000 |
SEAT |
1 |
| 45 |
01010-51035 |
BOLT |
2 |
