Shantui Bulldozer Spare Parts SD16 SD16E SD16L
Single Flange Track Roller Ass’y 16Y-40-09000,16Y-40-09100
Part Name: Single Flange Track Roller Ass’y
Part Number:16Y-40-09000,16Y-40-09100
Machine Model:Shantui SD16,SD16E,SD16L

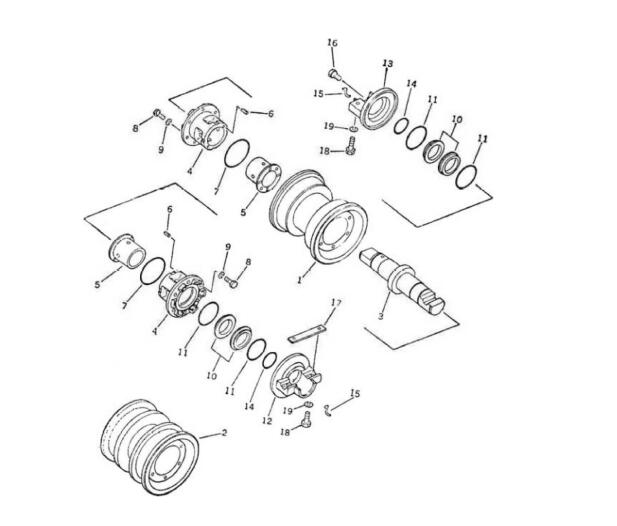

Shantui Machine SD16 Dozer Single Flange Track Roller Assembly 16Y-40-09000,16Y-40-09100.
| ITEM | PART NO. | PART NAME | Q'TY |
| 0 | 16Y-40-09000 | TRACK ROLLER | 10 |
| 1 | 16Y-40-09100 | TRACK ROLLER BODY | 10 |
| 2 | 16Y-40-09002 | TRACK ROLLER SHAFT | 10 |
| 3 | 16Y-40-03201 | SLEEVE | 20 |
| 4 | 16Y-40-03210A | BUSHING | 20 |
| 5 | 04025-00512 | PIN | 20 |
| 6 | 07000-15105 | O-RING | 20 |
| 7 | 01010-51030 | BOLT | 120 |
| 8 | 01602-21030 | WASHER | 120 |
| 9 | 16Y-40-03005 | RING,FLOAT SEAL | 10 |
| 10 | 16Y-40-03006 | O-RING | 10 |
| 11 | 16Y-40-09003 | COVER | 10 |
| 12 | 16Y-40-09001 | CAP | 10 |
| 13 | 07000-13055 | O-RING | 20 |
| 14 | 16Y-40-09005 | RETAINER | 20 |
| 15 | 07052-31624 | PLUG | 10 |
| 16 | 16Y-40-09004 | KEY | 10 |
| 17 | 01010-51865 | BOLT | 10 |
| 18 | 01602-21854 | WASHER | 40 |
