Shantui Bulldozer Spare Parts SD16 SD16E
Straight Blade Assembly 16Y-80-00000 16Y-80-70000
Part Name:Straight Blade Assembly
Part Number: 16Y-80-00000(blade ass’y), 16Y-80-70000(blade)
Machine Model: Shantui SD16 SD16E
Shantui Brand SD16 Bulldozer Blade for Sale 16Y-80-00000 16Y-80-70000 Bulldozer Blade Factory Price.
We are 13 years construction machine and parts supplier. We supply bulldozer blade factory price for sale, Shantui brand SD16,SD16E,SD16L bulldozer blade 16Y-80-00000 16Y-80-70000 good quality available in store for deliver.

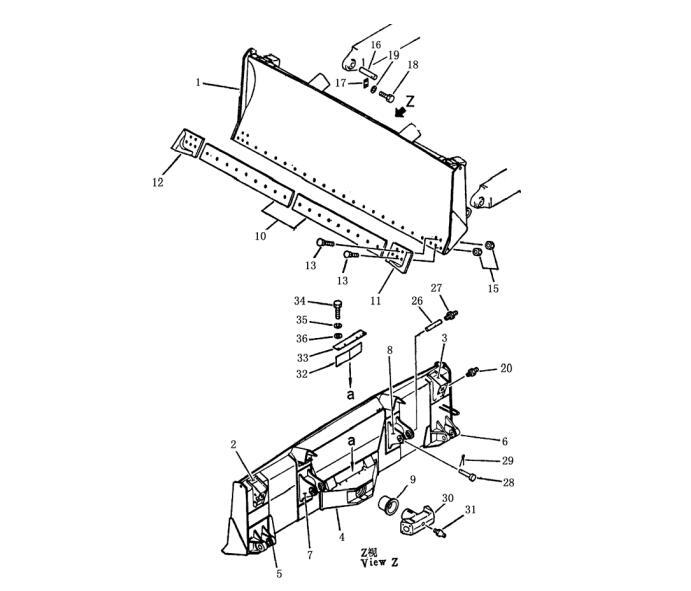

| INDEX NO. | PART NO. | DESCRIPTION | Q'TY |
| SD16 SD16E | |||
| 1 | 16Y-80-70000 | blade ass’y | 1 |
| 2 | 16Y-80-70008 | bracket,L.H | 1 |
| 3 | 16Y-80-70030 | bracket,R.H | 1 |
| 4 | 16Y-80-70014 | bracket, center | 1 |
| 5 | 16Y-80-70006 | bracket, L.H | 1 |
| 6 | 16Y-80-70029 | bracket, R.H | 1 |
| 7 | 16Y-80-71000 | bracket, L.H | 1 |
| 8 | 16Y-80-72000 | bracket, R.H | 1 |
| 9 | 16Y-80-00013 | bushing | 1 |
| 10 | 16Y-80-00019 | edge, cutting | 2 |
| 11 | 16Y-81-00002 | bit end, L.H | 1 |
| 12 | 16Y-81-00003 | bit end, R.H | 1 |
| 13 | 154-71-41270 | bolt | 28 |
| 15 | 154-70-22270 | nut | 28 |
| 16 | 16Y-80-00004 | pin | 2 |
| 17 | 16Y-80-00003 | plate, lock | 2 |
| 18 | 01010-51635 | bolt | 4 |
| 19 | 01643-31645 | washer | 4 |
| 20 | 07020-01018 | fitting, grease | 2 |
| 26 | 16Y-80-00002 | shaft | 2 |
| 27 | 07020-01018 | fitting, grease | 2 |
| 28 | 16Y-80-00001 | shaft | 2 |
| 29 | 04050-13016 | pin, cotter | 2 |
| 30 | 16Y-80-00014 | shaft | 1 |
| 31 | 07020-01018 | fitting, grease | 1 |
| 32 | 16Y-80-00011 | spring | 1 |
| 33 | 16Y-80-00012 | cover | 1 |
| 34 | 01010-51020 | bolt | 4 |
| 35 | 01602-21030 | washer | 4 |
| 36 | 01643-31032 | washer | 4 |
