Shantui Bulldozer SD16F

Engine Power: 120kw or 131kW/1850rpm
Engine Model: Weichai WD10G178E25 or WP10
Blade Capacity: Straight Titling Blade-3.2M3 or 3.5M3
Track Shoes Width: 560mm
Overall Weight: 17,500kg (Standard)
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

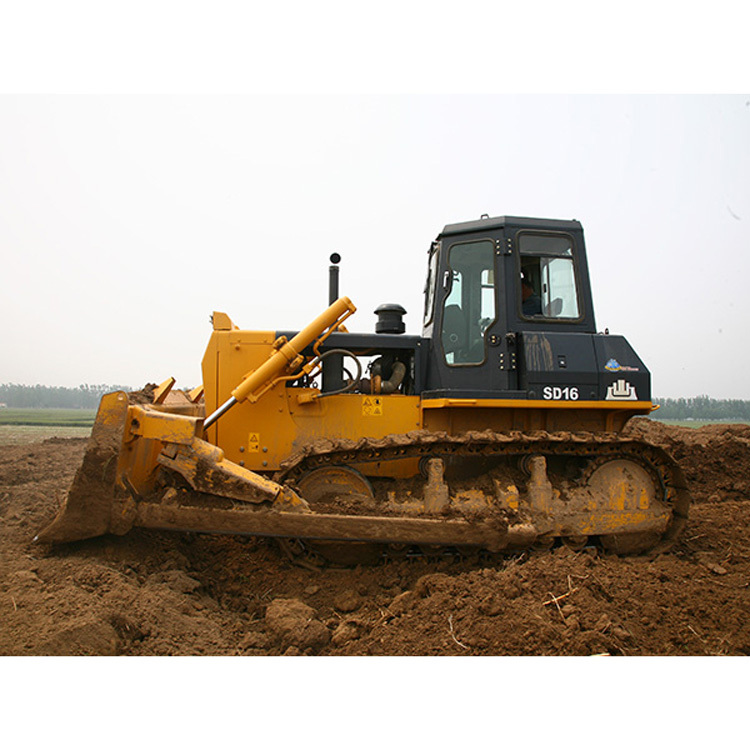

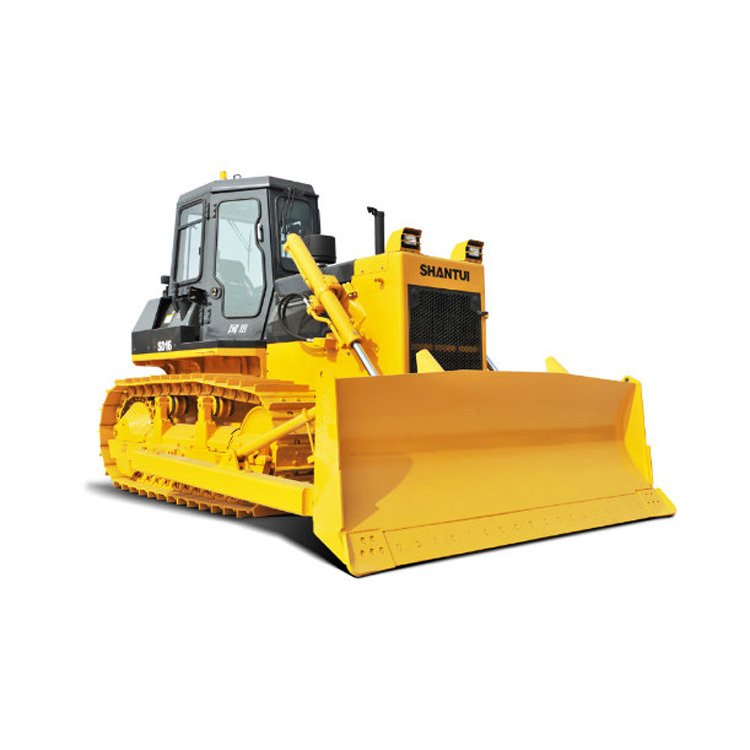

SHANTUI BULLDOZER SD16F

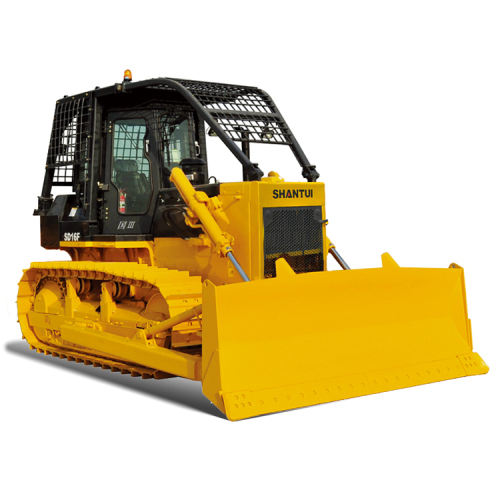

160hp Forest Logging Bulldozer



Engine Power: 120kw or 131kW/1850rpm

Engine Model: Weichai WD10G178E25 or WP10

Blade Capacity: Straight Titling Blade-3.2M3 or 3.5M3

Track Shoes Width: 560mm

Overall Weight: 17,500kg (Standard)

SHANTUI SD16F forest logging type bulldozer are developed according to the forest environment to have the hydraulic drive system with the hydraulic control technologies and the ROPS/ FOPS, featuring the reasonable structure, the steady performance and flexible operations. The winch at the rear end of bulldozer could perform the forest logging, transportation and other tractions by making use of winch. In addition, some winches are around the hazard section for the bulldozer self-saving.

Shantui SD16F Forestry Dozer with Winch for Sale Best Logging Dozer.



Power System

●The installed WP10 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

●The rated power reaches 131kW, featuring high torque reserve coefficient.

●The radially sealed intake system is applied to effectively prolong the engine life.



Driving/Riding Environment

 New hexahedral cab has the large internal space and the widened vision, with the excellent seal structure keeping the noises and the dust out. Furthermore, the two-purpose A/C with high power could enhance the safety and comfort.

● The instruments on the console are reliable and thus give the and accurate readings, as well as an alarm. The driver’s seat and handle could be easily adjusted, steered and changed in speed. In addition, the handle throttle is at left side, giving the comfortable experience to the operator.

● The bright HID Xenon bulbs could guarantee the night construction and the safety by emitting the wide illumination range.



PARAMETER

Parameter name

SD16F

Performance parameters



Operating weight (Kg)

17346

Ground pressure (kPa)

55

Engine



Engine model

WD10(China-II)/WP10(China-III)

Rated power/rated speed (kW/rpm)

131/1850

Overall dimensions



Overall dimensions of machine (mm)

5345*3388*3032

Driving performance



Forward speed (km/h)

F1:0-3.29,F2:0-5.82,F3:0-9.63

Reversing speed (km/h)

R1:0-4.28,R2:0-7.59,R3:0-12.53

Chassis System



Center distance of track (mm)

1880

Width of track shoes (mm)

560/510/610

Ground lengthmm

2635

Tank capacity



Fuel tank (L)

315

Working device



Blade type

Angle Blade, Straight tilting blade and U-shaped Blade

Digging depth (mm)

540

Ripper type

Three-tooth ripper

Ripping depth (mm)

570
