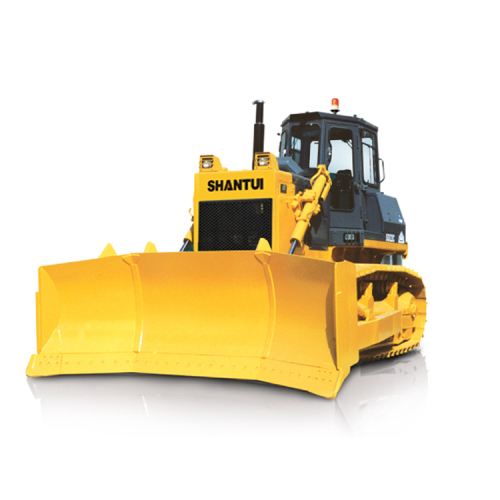

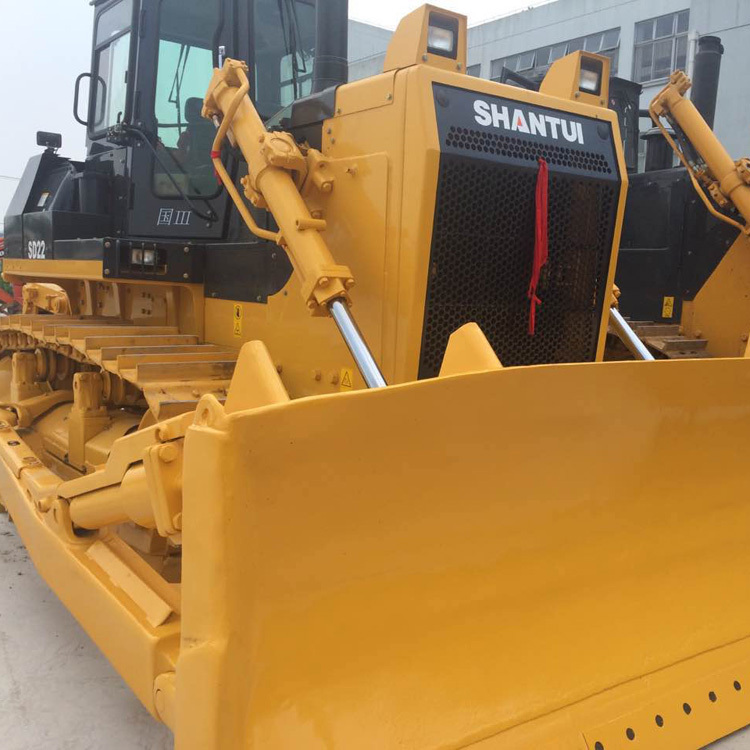

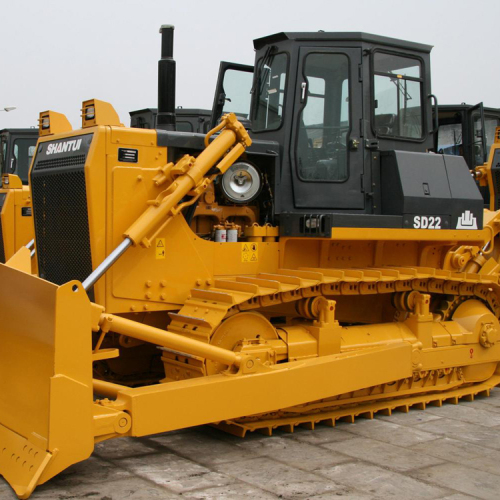

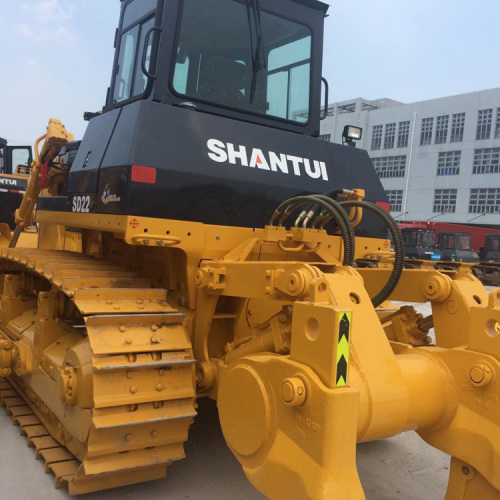

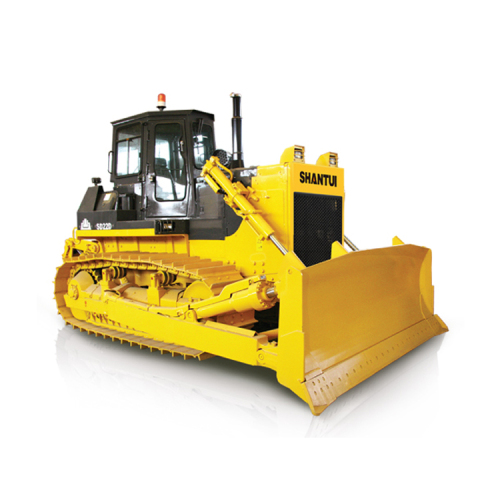

Shantui Bulldozer SD22
220hp Bulldozer Series
Engine Power: 162kw or 175kW/1800rpm
Engine Model: * Cummins NT855-C280S10, QSNT-C235
* Weichai WD12G240E206 or WP12

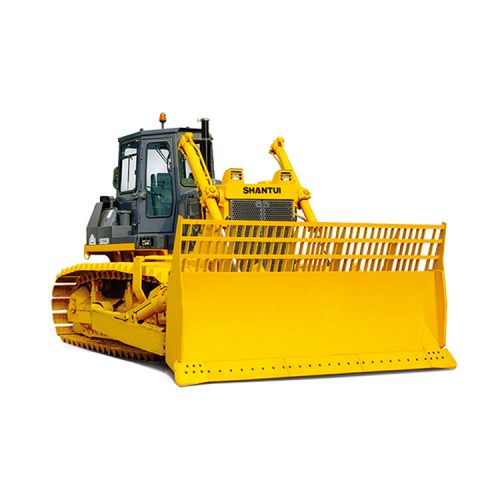

Blade Capacity: * Straight Titling Blade-6.4M3 ,Angle Blade-4.7M3 ,U Blade-7.5M3 ,Semi-U Blade-7.0M3
* R-Blade-10.2M3 Coal Blade-9.0M3
Track Shoes Width: 560/ 610/ 660mm
Overall Weight: 23,450kg (Standard)
Models for Different Condition: SD22, SD22C, SD22D, SD22E, SD22F, SD22S
SHANTUI SD22 hydraulic bulldozer is a hydraulic drive bulldozer developed by Shantui. Its technology has reached the leading level in China. Shantui SD22 series bulldozer adopts Shantui’s patented technologies, including central lubrication, central pressure measurement, and automatic track tensioning technologies, and won the sole national golden quality award in China’s bulldozer industry. With multiple working devices and cabs, this product can meet the operation demands for diversified working conditions and is an ideal high-efficiency machine for earth moving operations and bulk material handling.This product inherits shantui more than 30 years bulldozer production experience, good quality, stable and reliable performance. It is mainly used for pushing, excavating, backfilling earthwork and other bulk materials on the ground of roads, railways and airports. It is indispensable machinery and equipment for national defense projects, urban and rural roads and other construction and water conservancy construction.
Bulldozer Shantui SD22 China Hot Sale Dozer Equipment. Shantui sd22 dozer specs websites.
● The installed Cummins NT855-C280,QSNT-C235 or Weichai WP12 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
● The rated power reaches 162kw and 175kW, featuring high torque reserve coefficient.
● The radially sealed intake system is applied to effectively prolong the engine life.
The reliable power-shift transmission, the steady hydraulic torque converter and the stage-II spur-tooth final drive could perform the effective power output and produce the high efficiency.
● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency.
● Shantui’s self-made drive system features stable performance and reliable quality and has been long proved by the market.
● Planetary gear type transmission with power shift features the compact structure, steady engagement and high drive efficiency.
● YJ409B hydraulic torque converter has the circular cycle diameter of 409mm, 0.87 of high efficiency, simple structure such as monopole, single phase and threeelement, and wide RPM range in high efficiency area.
● Hexahedral cab, large internal space and open vision, FOPS/ROPS can be configured according to requirements, safe and reliable;
● Electronic control and foot throttle, more accurate operation and more comfortable;
● Configuration intelligent display control terminal, heating and cooling air conditioning, etc., to provide more humane driving experience, let you know the system status at any time, intelligent and convenient.
This system could guarantee the engine run normally and reliably under any load or hot condition, preventing against the engine overheating.
|(Standard version)||(Coal version)||(Forestry version)||(Desert version)||(Extended version)||(Wetland version)|
|Operating weight (Kg)||23450||24000||24700||24600||24600||25700|
|Ground pressure (kPa)||66||57.5||64||56||66||35.2|
|Rated power/rated speed (kW/rpm)||175/1800||175/1800||175/1800||175/1800||175/1800||175/1800|
|Overall dimensions of machine (mm)||5495*3725*3402||5820*4200*3402||5495*3725*3402||5495*3725*3402||5495*3725*3402||6290*4365*3402|
|Forward speed (km/h)||F1：0-3.6 F2:0-6.5 F3:0-11.2||F1：0-3.6 F2:0-6.5 F3:0-11.2||F1：0-3.6 F2:0-6.5 F3:0-11.2||F1：0-3.6 F2:0-6.5 F3:0-11.2||F1：0-3.6 F2:0-6.5 F3:0-11.2||F1：0-3.6 F2:0-6.5 F3:0-11.2|
|Reversing speed (km/h)||R1:0-4.3 R2:0-7.7 R3:0-13.2||R1:0-4.3 R2:0-7.7 R3:0-13.2||R1:0-4.3 R2:0-7.7 R3:0-13.2||R1:0-4.3 R2:0-7.7 R3:0-13.2||R1:0-4.3 R2:0-7.7 R3:0-13.2||R1:0-4.3 R2:0-7.7 R3:0-13.2|
|Center distance of track (mm)||2000||2000||2000||2000||2000||2250|
|Width of track shoes (mm)||560/610/660||660||610/660||660||560/610/660||910|
|Fuel tank (L)||450||450||450||450||450||450|
|Blade type||Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade||Coal blade||Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade||Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade||Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade||Straight tilting blade|
|Digging depth (mm)||540||538||540||540||540||550|
|Ripper type||Single-shank three-shank||Single-shank three-shank||Single-shank three-shank||Single-shank three-shank||Single-shank three-shank||——|
|Ripping depth (mm)||695 (Single-shank) and 666 (Three-shank)||695 (Single-shank) and 666 (Three-shank)||695 (Single-shank) and 666 (Three-shank)||695 (Single-shank) and 666 (Three-shank)||695 (Single-shank) and 666 (Three-shank)||——|
