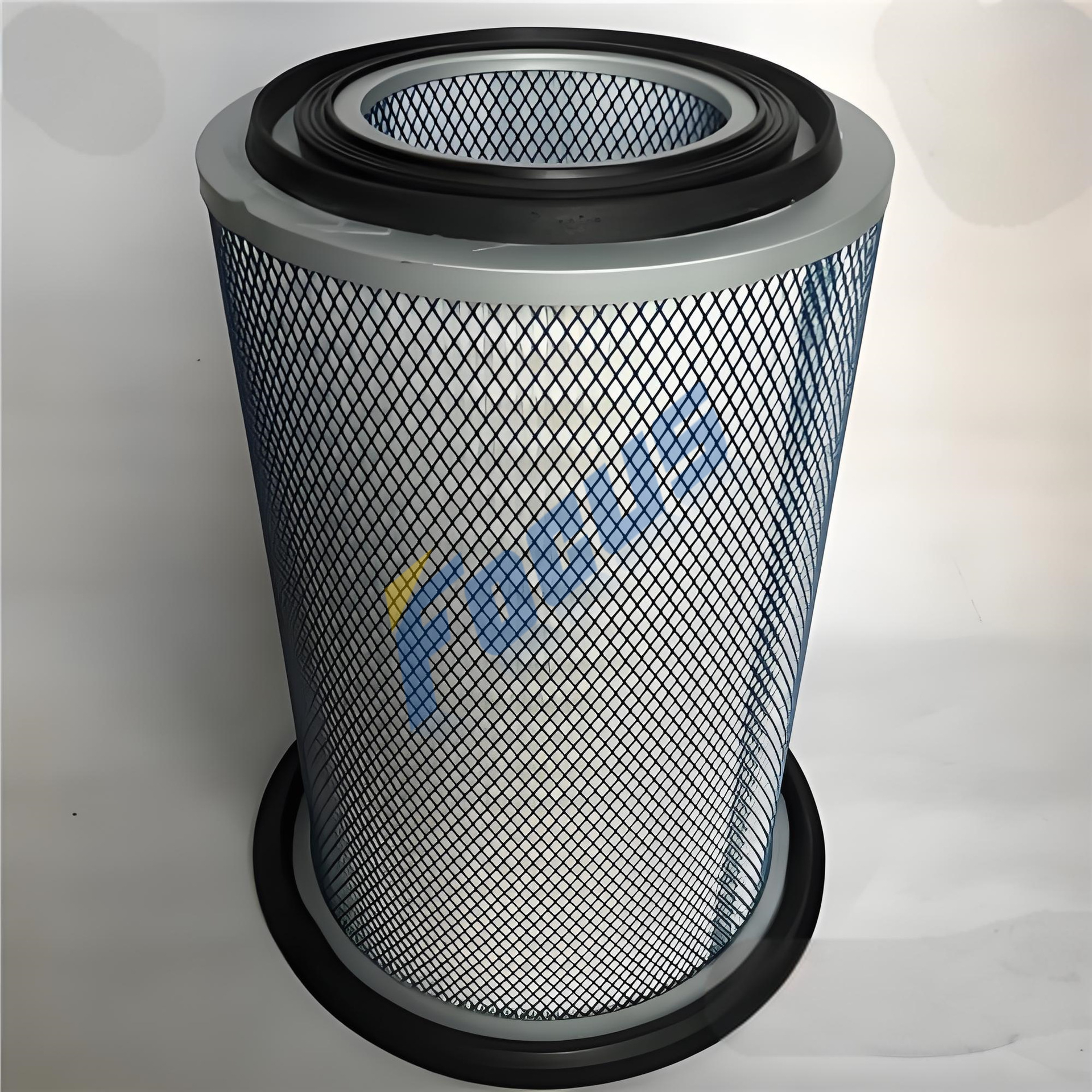

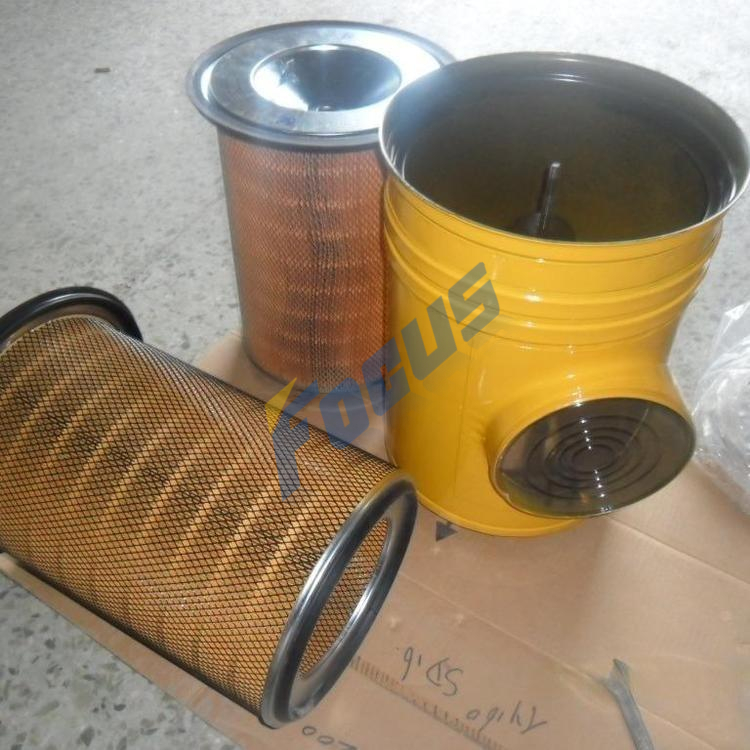

Part Name:Air Filter Assembly
Part Number: 6127-82-7106 6127-82-7115
Machine Model: Shantui SD22
Shantui SD22 Air Filter Assembly 6127-82-7106 6127-82-7115 Factory Price.
We are 13 years construction machine and parts supplier. We supply bulldozer parts factory price for sale, Shantui brand SD22,SD22E,SD22D bulldozer parts good quality available in store for deliver.
|
PART NO. | DESCRIPTION | Q’TY | |
| SD22 SD22E SD22S SD22R | SD22D SD22C | |||
| (6127-82-7106) | air cleaner ass’y | 1 | 1 | |
| 116-1 | 6127-82-7115 | body, cleaner | 1 | 1 |
| 2 | 6127-81-7412 | element, inner | 1 | 1 |
| 3 | 600-181-7511 | nut | 1 | 1 |
| 4 | 6128-81-7320 | element, outer | 1 | 1 |
| 5 | 600-181-4440 | washer, seal | 1 | 1 |
| 6 | 600-181-4370 | nut | 1 | 1 |
| 8 | 600-181-4420 | bolt, butterfly | 1 | 1 |
| 9 | 600-181-4430 | clip | 1 | 1 |
| 10 | 6127-11-4360 | hoop-band | 1 | 1 |
| 11 | 6643-11-4641 | bolt | 1 | 1 |
| 12 | 09637-00160 | data plate | 1 | 1 |
| 13 | 6127-81-4821 | gasket | 1 | 1 |
| 14 | 01640-21016 | washer | 8 | 8 |
| 15 | 01602-01030 | washer spring | 8 | 8 |
| 16 | 01580-01008 | nut | 8 | 8 |
| 17 | 6090-01-4250 | pre-cleaner ass’y | 1 | 1 |
| 18 | 01016-31045 | bolt | 1 | 1 |
| 19 | 01580-01008 | nut | 1 | 1 |
| 20 | 6711-81-7920 | connector | 1 | |
| 22M-06-00001 | hose | 1 | ||
| 21 | 600-181-1510 | cap | 1 | |
| 22M-06-10000 | cap | 1 | ||
| 22 | 6711-11-4770 | pipe, ejector | 1 | 1 |
| 22A | 6128-11-5302 | valve ass’y | 1 | 1 |
| 22B | 01010-31025 | bolt | 2 | 2 |
| 22C | 01602-01030 | washer spring | 2 | 2 |
| 23 | 6127-11-4780 | hose | 1 | 1 |
| 24 | 07281-00498 | clamp | 2 | 2 |
| 25 | 6128-11-5610 | gasket | 2 | 2 |
| 26 | 01010-31035 | bolt | 2 | 2 |
| 27 | 01580-01008 | nut | 2 | 2 |
| 28 | 01602-01030 | washer spring | 2 | 2 |
