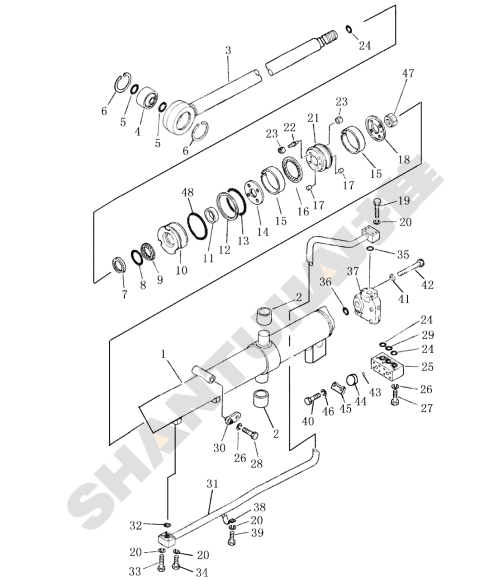

Shantui SD22 Blade Cylinder Assy L.H.and R.H. 158-62-01000 158-62-02000
Part Name: Blade Cylinder Assy L.H.and R.H.
Part Number: 158-62-01000 158-62-02000
Machine Model: SD22
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
| Index No |
PART NO. |
DESCRIPION |
Q’ty |
| SD22 |
SD22S |
SD22E |
| SD22R |
SD22D |
|
23Y-62B-01000 |
cylinder ass’y L.H |
1 |
|
|
|
23Y-62B-02000 |
cylinder ass’y R.H |
1 |
|
|
|
158-62-01000 |
cylinder ass’y L.H |
|
1 |
|
|
158-62-02000 |
cylinder ass’y R.H |
|
1 |
|
|
23Y-65E-A0000 |
cylinder ass’y L.H |
|
|
1 |
|
23Y-65E-A0000 |
cylinder ass’y R.H |
|
|
1 |
| 609-1 |
23Y-62B-01200 |
body, cylinder |
2 |
|
|
|
158-62-01100 |
body, cylinder, L.H |
|
1 |
|
|
158-62-02100 |
body, cylinde, R.H |
|
1 |
|
|
23Y-65E-03000 |
body, cylinder |
|
|
2 |
| 2 |
154-63-12340 |
bushing |
4 |
4 |
4 |
| 3 |
23Y-62B-01300 |
rod, piston |
2 |
|
2 |
|
158-62-01200 |
rod, piston |
|
2 |
|
| 4 |
07137-04507 |
bushing |
2 |
2 |
2 |
| 5 |
07000-03045 |
O-ring |
4 |
4 |
4 |
| 6 |
04065-01030 |
ring, stopper |
4 |
4 |
4 |
| 7 |
23Y-62B-01001 |
seal, dust |
2 |
2 |
2 |
| 8 |
23Y-62B-01002 |
KY-ring |
2 |
2 |
2 |
| 9 |
23Y-62B-01100 |
seal |
2 |
2 |
2 |
| 10 |
23Y-62B-01006 |
head, cylinder |
2 |
2 |
2 |
| 11 |
23Y-62B-01003 |
ring, guide |
2 |
2 |
2 |
| 12 |
07146-02116 |
ring, support |
2 |
2 |
2 |
| 13 |
07000-12115 |
O-ring |
2 |
2 |
2 |
| 14 |
23Y-62B-01004 |
plate, stopper |
2 |
2 |
2 |
| 15 |
23Y-62B-01005 |
ring, support |
4 |
4 |
4 |
| 16 |
23Y-62B-01500 |
ring |
2 |
2 |
2 |
| 17 |
130-63-12761 |
pin |
4 |
4 |
4 |
| 18 |
707-40-12030 |
plate, stopper |
2 |
2 |
2 |
| 19 |
01010-51065 |
bolt |
8 |
8 |
8 |
| 20 |
01643-31032 |
washer |
20 |
20 |
20 |
| 21 |
23Y-62B-01401 |
piston |
2 |
2 |
2 |
| 22 |
154-63-12471 |
valve, piston |
8 |
8 |
8 |
| 23 |
154-63-12860 |
pedestal, valve |
16 |
16 |
16 |
| 24 |
07000-13038 |
O-ring |
6 |
6 |
6 |
| 25 |
154-63-12550 |
elbow |
2 |
|
2 |
|
158-62-01500 |
tube |
|
2 |
|
