Shantui SD22 Flywheel housing 154-01A-30000 154-01A-30003
Part Name:Flywheel housing
Part Number: 154-01A-30000 154-01A-30003
Machine Model:SD22

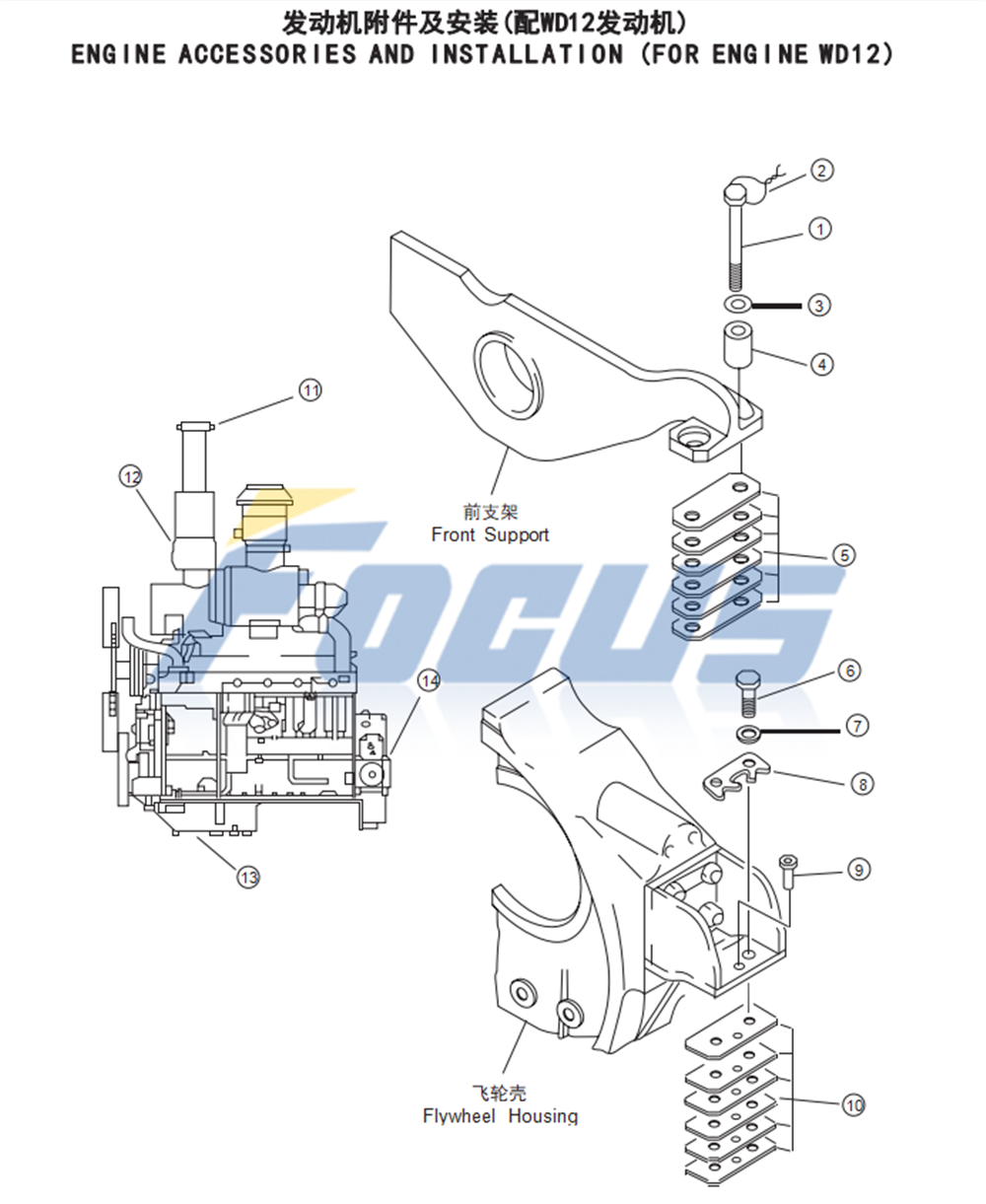

| NO. | PART NO. | PART NAME | Q'TY |
| 1 | 01015-52200 | Bolt | 4 |
| 2 | GB3206-82 | Iron wire | 2 |
| 3 | 01643-32260 | Washer | 4 |
| 4 | 195-01-11190 | Gasket | 4 |
| 5 | 154-01-11570 | Washer | 2 |
| 5 | 154-01-11580 | Washer | 10 |
| 6 | 01010-52255 | Bolt | 4 |
| 7 | 154-01-11550 | Washer | 4 |
| 8 | 154-01-11560 | Plate | 2 |
| 9 | 6681-21-4750 | Positioning pin | 2 |
| 10 | 154-01-11590 | Washer | 2 |
| 10 | 154-01-11610 | Washer | 10 |
| 11 | 6711-11-5781 | Cap | 1 |
| 12 | 17Y-01-40300 | Exhaust pipe | 1 |
| 13 | WD12 | Engine | 1 |
| 14 | 154-01A-30000 | Power take off | 1 |
| NO. | PART NO. | PART NAME | Q'TY |
| 3 | 6623-31-1371 | Drive pump gear | 1 |
| 4 | 6623-31-1390 | Positioning pin | 1 |
| 5 | 01010-31255 | Bolt | 4 |
| 6 | 6623-31-1380 | Stop washer | 2 |
| 9 | 154-01A-30003 | Flywheel housing | 1 |
| 10 | 07046-15520 | Dish-shaped plug | 1 |
| 11 | 07046-12016 | Dish-shaped plug | 4 |
| 12 | 04020-01434 | Cylindrical pin | 4 |
| 13 | 07042-00415 | Tapered plug | 1 |
| 15 | 6710-23-4130 | Bolt | 5 |
| 16 | 6710-23-4140 | Bolt | 2 |
| 16 | 6710-23-4120 | Bolt | 2 |
| 17 | 6600-01-2740 | Washer, spring | 9 |
| 18 | 6691-23-4710 | Rear bracket | 2 |
| 19 | 01010-51845 | Bolt | 8 |
| 20 | 6643-21-4731 | Plate | 4 |
| 21 | 6711-21-C010-1 | Cylindrical pin (A) | 1 |
| 21 | 6711-21-C010-2 | Cylindrical pin (B) | 1 |
