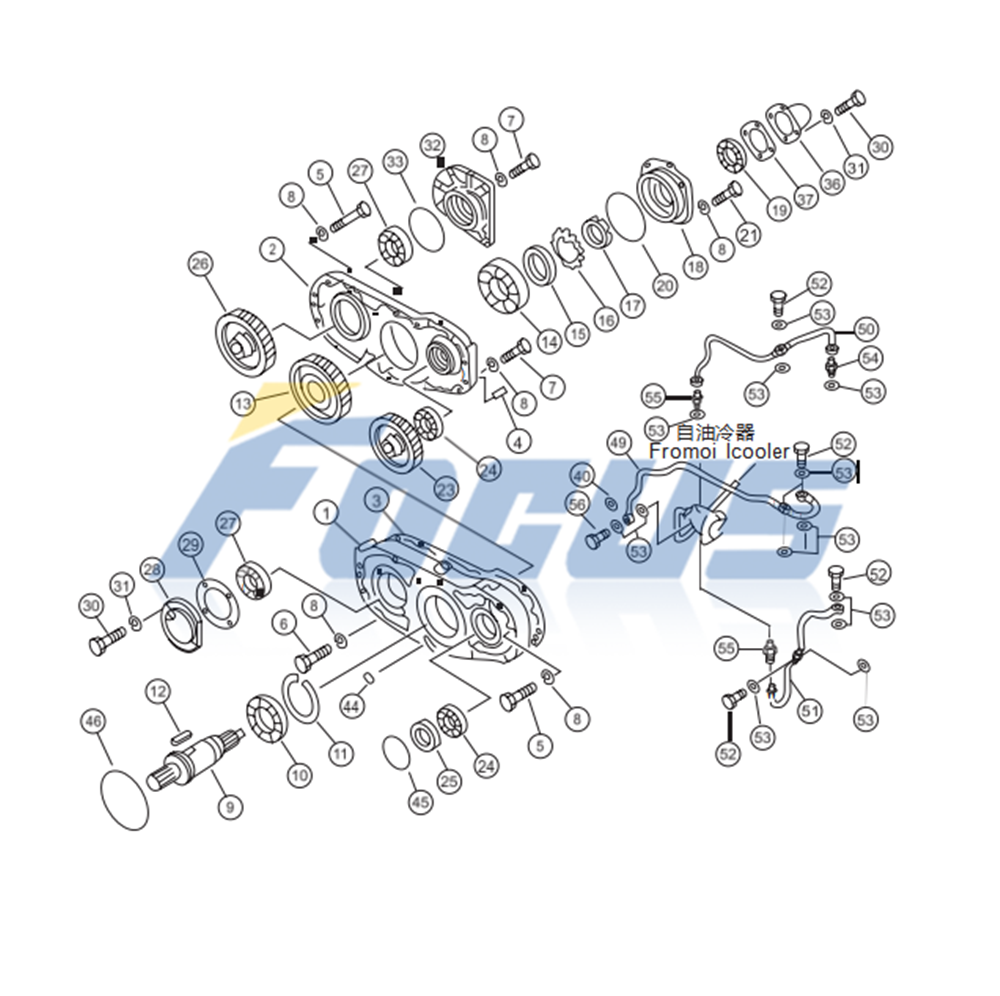

Shantui SD22 Gear case 154-38-25110 154-01-12121
Part Name:Gear case
Part Number: 154-38-25110 154-01-12121
Machine Model:SD22
| NO. | PART NO. | PART NAME | Q'TY | MODEL |
| 1 | 154-38-25110 | Gear case | 1 | |
| 2 | 154-01-12121 | Gear case | 1 | |
| 3 | 154-01-12130 | Gasket | 1 | |
| 4 | 04020-01024 | Cylindrical pin | 2 | |
| 5 | 01011-51205 | Bolt | 13 | |
| 6 | 01010-81275 | Bolt | 2 | |
| 7 | 01010-51250 | Bolt | 4 | |
| 8 | 01602-21236 | Washer | 24 | |
| 9 | 154-01-12220 | Shaft | 1 | |
| 10 | 154-01-12280 | Roller bearing | 1 | |
| 11 | 150-21-22180 | Retaining ring | 1 | |
| 12 | 04000-02050 | Flat key | 2 | |
| 13 | 154-01-12230 | Gear | 1 | |
| 14 | GB276-6314C4 | Bearing | 1 | |
| 15 | 154-01-12240 | Thimble | 1 | |
| 16 | 01658-26823 | Washer | 1 | |
| 17 | 01530-06814 | Nut | 1 | |
| 18 | 154-01-12250 | Cover | 1 | |
| 19 | 07012-00060 | Skeleton oil seal | 1 | |
| 20 | 07000-15150 | O-ring | 1 | |
| 21 | 01010-51230 | Bolt | 4 | |
| 23 | 154-38-25150 | Gear | 1 | |
| 24 | GB276-6209C4 | Bearing | 2 | |
| 25 | 154-01-12320 | Ring | 1 | |
| 26 | 154-01-12410 | Gear | 1 | |
| 27 | GB276-6212C4 | Bearing | 2 | |
| 28 | 154-01-12420 | Cover | 1 | |
| 29 | 154-01-12430 | Gasket | 1 | |
| 30 | 01010-51025 | Bolt | 8 | |
| 31 | 01602-21030 | Washer | 8 | |
| 32 | 154-01-12440 | Shell bearing | 1 | |
| 33 | 07000-15130 | O-ring | 1 | |
| 36 | 154-01-12260 | Cover | 1 | |
| 37 | 154-01-12270 | Gasket | 1 | |
| 40 | 08036-10614 | Wire clip | 1 | |
| 44 | 07000-13030 | O-ring | 1 | |
| 45 | 07000-12105 | O-ring | 1 | |
| 46 | 07000-15195 | O-ring | 1 | |
| 49 | 154-01-12530 | Hose | 1 | |
| 50 | 154-01-12541 | Hose nippler | 1 | |
| 51 | 154-01-12552 | Hose | 1 |
