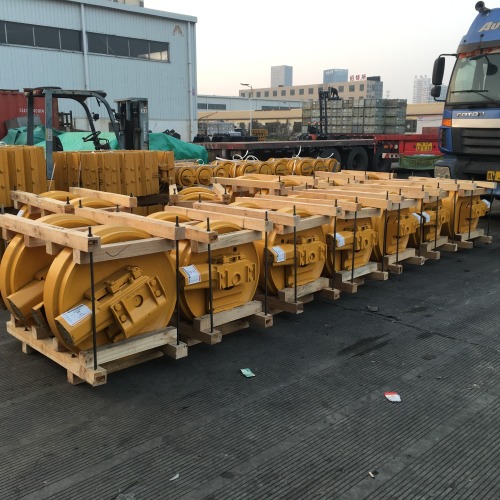

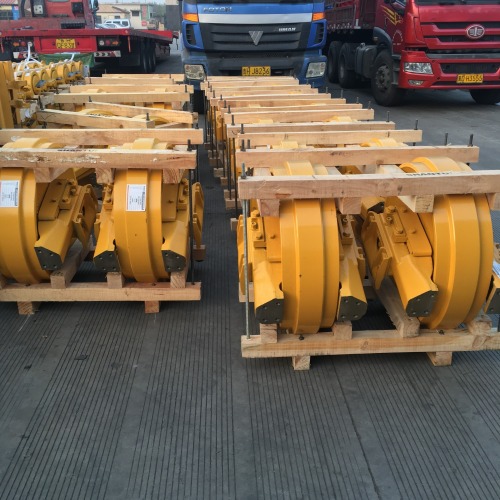

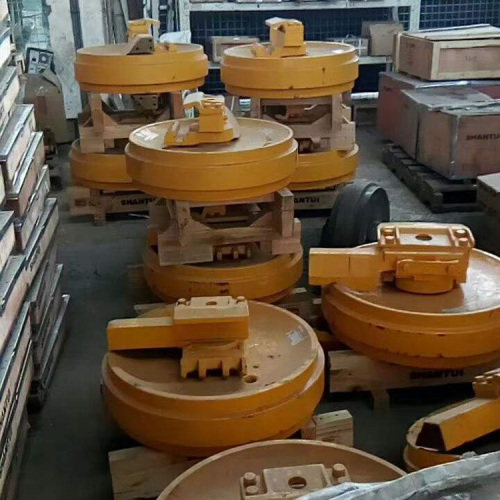

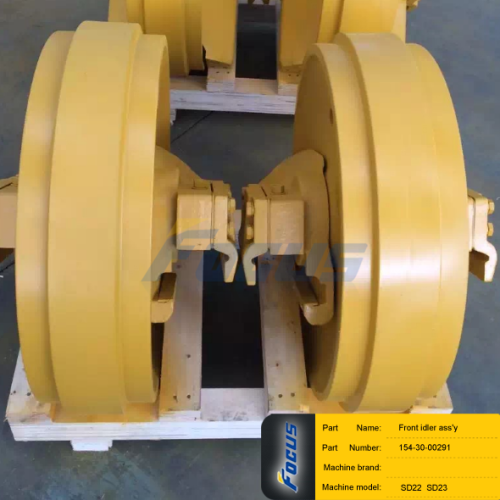

Shantui Bulldozer SD22 SD22S Spare Parts Front Ldler Assy 154-30-00291
Part Name:Front Ldler Assy
Part Number: 154-30-00291
Machine Model:Shantui Bulldozer SD22 SD22S

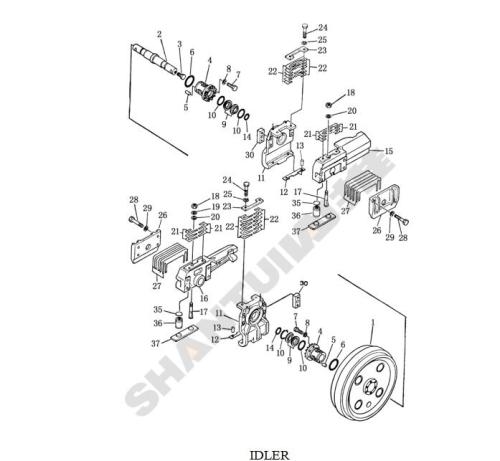

| Index No. | Part No. | Description | Q’ty |
| (154-30-00291) | idler ass’y | 2 | |
| 405-1 | 150-30-22118 | idler, front | 2 |
| 2 | 154-30-23122 | shaft | 2 |
| 3 | 07052-21624 | plug | 2 |
| 4 | 155-30-16201 | bushing, ass’y | 4 |
| 5 | 170-30-91130 | pin, dowel | 8 |
| 6 | 07000-02110 | O-ring | 4 |
| 7 | 01010-51235 | bolt | 24 |
| 8 | 01602-21236 | washer, spring | 24 |
| 9 | 154-30-12271 | seal ring | 8 |
| 10 | 150-30-12220 | O-ring | 8 |
| 11 | 154-30-12641 | guide | 4 |
| 12 | 154-30-11963 | plate | 4 |
| 13 | 04022-12025 | pin, dowel | 8 |
| 14 | 07000-02060 | O-ring | 4 |
| 15 | 154-30-12611 | support, L.H | 2 |
| 16 | 154-30-12621 | support, R.H | 2 |
| 17 | 154-30-12650 | pin, dowel | 4 |
| 18 | 175-30-23180 | nut | 4 |
| 20 | 01643-31645 | washer | 4 |
| 21 | 154-30-05040 | shim ass’y | 4 |
| 22 | 154-30-05050 | shim ass’y | 4 |
| 23 | 154-30-12670 | plate | 4 |
| 24 | 154-30-12660 | screw | 8 |
| 25 | 01602-21648 | washer, spring | 8 |
| 26 | 154-30-11683 | plate | 4 |
| 27 | 154-30-05060 | shim ass’y | 4 |
| 28 | 01011-52055 | bolt | 16 |
| 29 | 01602-22060 | washer, spring | 16 |
| 30 | 154-30-12730 | seat | 8 |
| 35 | 195-30-17960 | plate | 8 |
| 36 | 155-30-13230 | spring | 8 |
| 37 | 175-30-24131 | guide plate | 4 |
