Shantui Dozer SD22 SD22S Spare Parts Single Flange Track Roller Assy 155-30-00124 Track Roller Double Flange 155-30-00124

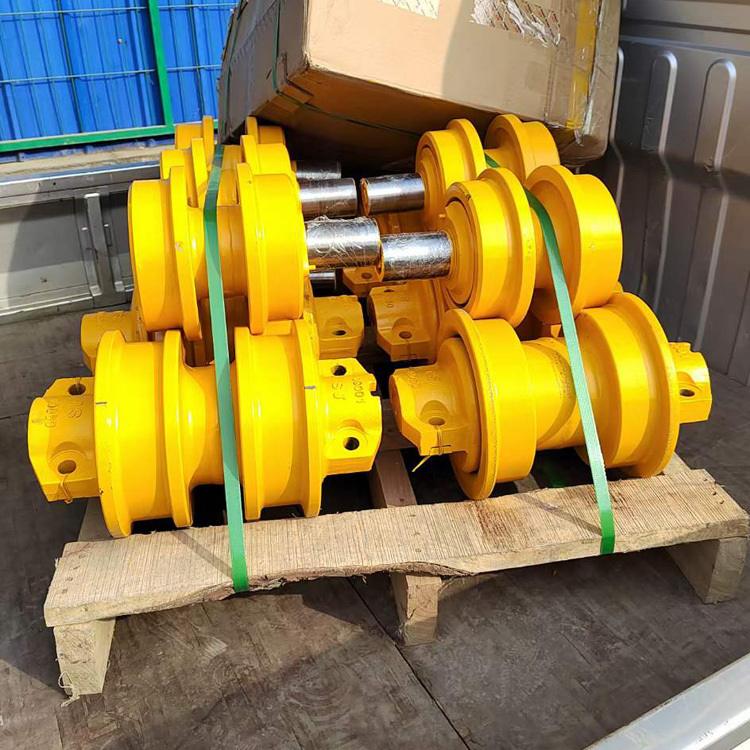

Part Name:Single Flange Track Roller Assy
Part Number: 155-30-00124 155-30-00124
Machine Model:Shantui Dozer SD22 SD22S

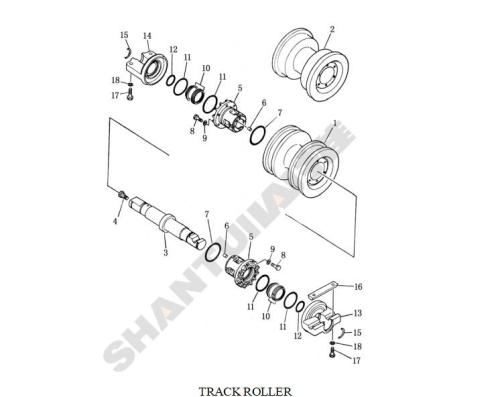

| No. | Part No. | Description | Q’ty | ||
| SD22 | SD22E | SD22S | |||
| 155-30-00114 | track roller ass’y,double flange | 4 | 6 | 6 | |
| 155-30-00124 | track roller ass’y,single flange | 8 | 8 | 10 | |
| 406-1 | 150-30-25125 | track roller,double flange | 4 | 6 | 6 |
| 2 | 150-30-25115 | track roller, single flange | 8 | 8 | 10 |
| 3 | 154-30-26131 | shaft | 12 | 14 | 16 |
| 4 | 07052-21624 | plug | 12 | 14 | 16 |
| 5 | 155-30-16201 | bushing, ass’y | 24 | 28 | 32 |
| 6 | 170-30-91130 | pin | 48 | 56 | 64 |
| 7 | 07000-02110 | O-ring | 24 | 28 | 32 |
| 8 | 01010-51235 | bolt | 144 | 168 | 192 |
| 9 | 01602-21236 | washer, spring | 144 | 168 | 192 |
| 10 | 154-30-12271 | seal ring | 48 | 56 | 64 |
| 11 | 150-30-12220 | O-ring | 48 | 56 | 64 |
| 12 | 07000-02060 | O-ring | 24 | 28 | 32 |
| 13 | 154-30-26182 | collar, inner | 12 | 14 | 16 |
| 14 | 154-30-26192 | collar, outer | 12 | 14 | 16 |
| 15 | 154-30-26140 | pin | 24 | 28 | 32 |
| 16 | 155-30-16210 | key | 12 | 14 | 16 |
| 17 | 01010-62275 | bolt | 48 | 56 | 64 |
| 18 | 01643-32260 | washer, spring | 48 | 56 | 64 |
