Shantui Dozer SD22 SD22S Spare Parts Sprocket 154-27-12273
Part Name:Sprocket
Part Number: 154-27-12273
Machine Model:Shantui Dozer SD22 SD22S

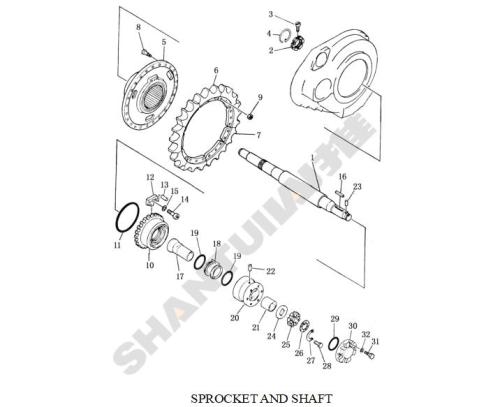

| No. | PART NO. | DESCRIPTION | Q’ty | |
| SD22,SD22E,SD22D | SD22S,SD22R | |||
| 309-1 | 154-27-12313 | shaft | 2 | |
| 158-18-00001 | shaft | 2 | ||
| 2 | 170-27-12472 | nut | 2 | 2 |
| 3 | 09243-01230 | pin | 2 | 2 |
| 4 | 170-27-12480 | ring | 2 | 2 |
| 5 | 154-27-12131 | boss, sprocket | 2 | 2 |

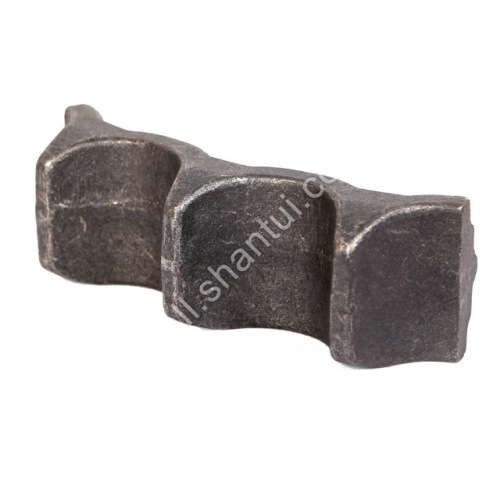

| 6 | 154-27-12273 | teeth, sprocket,3 teeth | 14 | 14 |
| 7 | 154-27-12283 | teeth, sprocket,2 teeth | 4 | 4 |
| 8 | 155-27-12181 | bolt | 50 | 50 |
| 9 | 01803-02228 | nut | 50 | 50 |
| 10 | 170-27-12232 | nut, hub | 2 | 2 |
| 11 | 07000-05315 | o-ring | 2 | 2 |
| 12 | 175-27-31480 | stopper | 2 | 2 |
| 13 | 170-27-12250 | pin, dowel | 4 | 4 |
| 14 | 01252-41635 | bolt | 2 | 2 |
| 15 | 01602-21648 | washer, spring | 2 | 2 |
| 16 | 04000-01280 | key | 2 | 2 |
| 17 | 154-27-12352 | spacer | 2 | 2 |
| 198-30-00070 | floating seal ass’y | 2 | 2 | |
| 18 | 198-30-16612 | seal ring | 1 | 1 |
| ass’y(consists of 2 seal rings) | ||||
| 19 | 170-27-12340 | O-ring | 1 | 1 |
| ass’y (consists of 2 o-rings) | ||||
| 20 | 154-27-12334 | 2 | 2 | |
| sprocket support ass’y | ||||
| 21 | 154-27-12341 | bushing | 2 | 2 |
| 22 | 04020-01638 | pin, dowel | 2 | 2 |
| 23 | 175-27-32510 | pin, dowel | 2 | 2 |
| 24 | 154-27-12424 | spacer | 2 | 2 |
| 25 | 154-27-12412 | nut | 2 | 2 |
| 26 | 154-27-15240 | plate | 2 | 2 |
| 27 | 154-27-15250 | plate, lock | 2 | 2 |
| 28 | 01010-51020 | bolt | 4 | 4 |
| 29 | 02892-03148 | o-ring | 2 | 2 |
| 30 | 154-27-12362 | cover | 2 | 2 |
| 31 | 01010-51640 | bolt | 12 | 12 |
| 32 | 01602-21648 | washer, spring | 12 | 12 |
