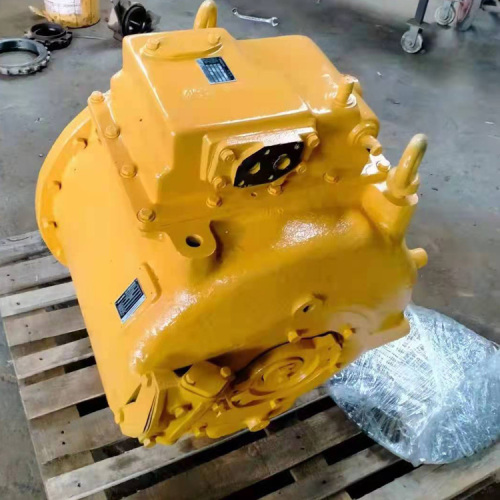

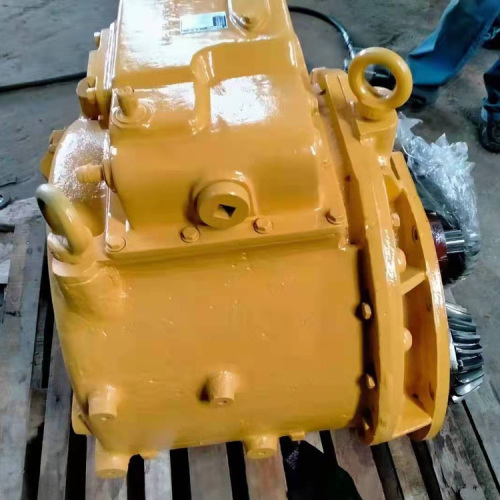

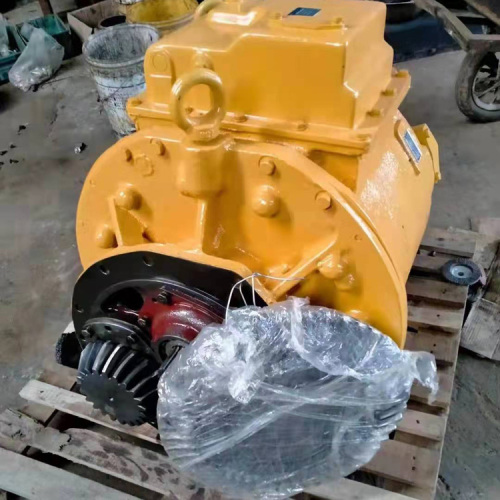

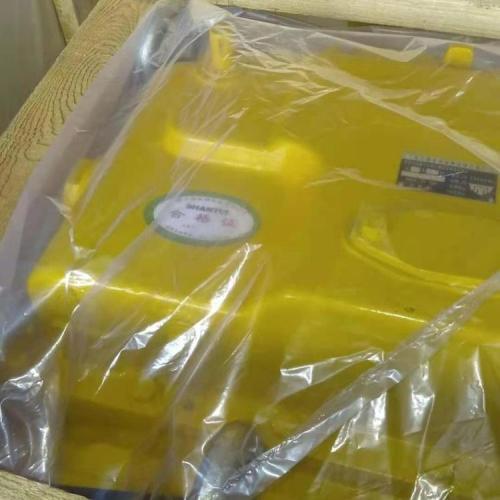

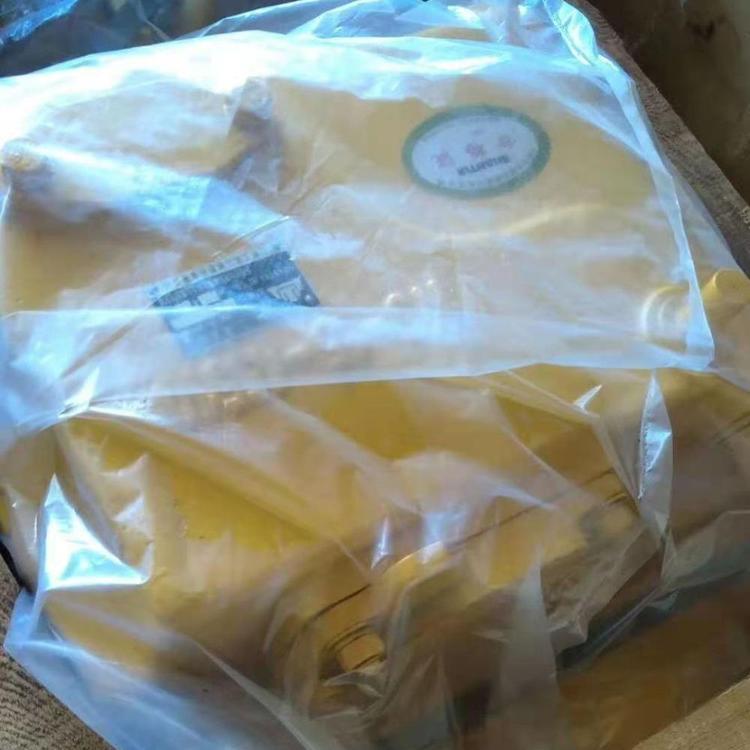

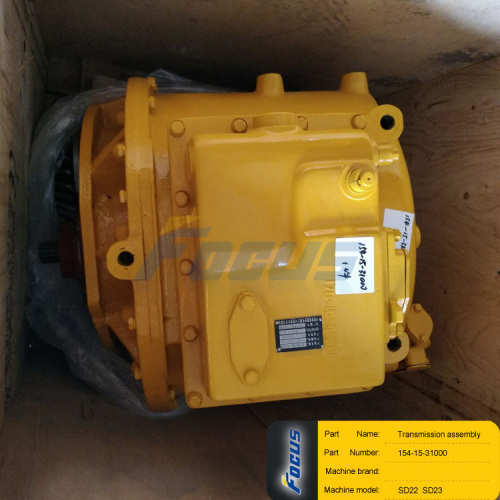

Shantui SD22 Transmission Assembly 154-15-31000

Part Name:Transmission Assembly
Part Number: 154-15-31000
Machine Model:Shantui Dozer SD22 SD22S
Sale: 0
$0.00
/ Pieces
|
1 Pieces(Min. Order)
Quantity
-
+
(0 In Stock)
Description
Description

Shantui Dozer Spare Parts SD22 SD22S Transmission Assembly154-15-31000

Part Name:Transmission Assembly

Part Number: 154-15-31000

Machine Model:Shantui Dozer SD22 SD22S

We are 13 Years Spare Parts Supplier, Good Price for Shantui SD22 Transmission Assembly 154-15-31000,Torque Converter ass'y 23Y-11B-00000,Transmission Pump 705-21-32051,Transmission Control Valve 154-15-35000,Transmission Filter 195-13-13420,etc.

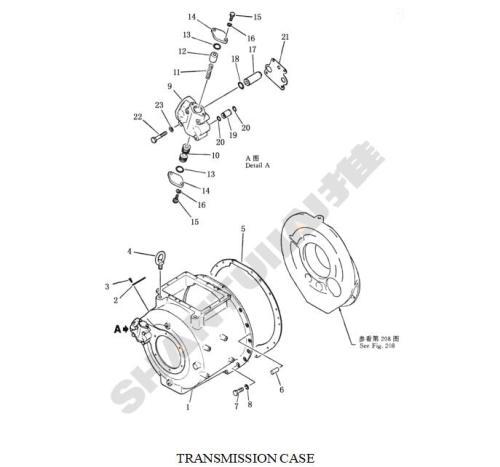

INDEXNO PART NO. DESCRIPTION Q’TY
(154-13-31000) torqueflow transmission ass’y 1
204-1 154-15-21111  case 1
2 09608-05080  plate, name 1
3 04418-03060  rivet 4
4 04530-02438  bolt, eye 2
5 154-15-21121  gasket 1
6 04020-01228  pin, dowel 1
7 01010-51240  bolt 15
8 01602-21236  washer 15
(154-15-34000)  lubrication valve ass’y 1
9 154-15-24110  body 1
10 175-15-14130  valve 1
11 175-15-14120  spring 1
12 175-15-14141  guide 1
13 07000-63032  o-ring 2
14 175-15-14150  cover 2
15 01010-50825  bolt 4
16 01602-20825  washer 4
17 154-15-34170  sleeve 1
18 07000-62018  o-ring 1
19 175-15-44180  sleeve 1
20 07000-62018  o-ring 2
21 175-15-14161  gasket 1
22 01010-51065  bolt 4
23 01602-21030  washer 4
