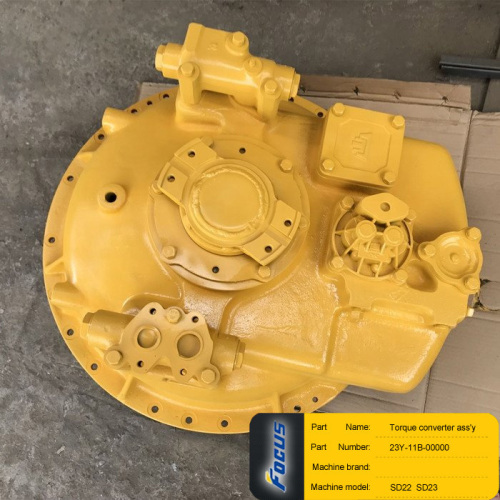

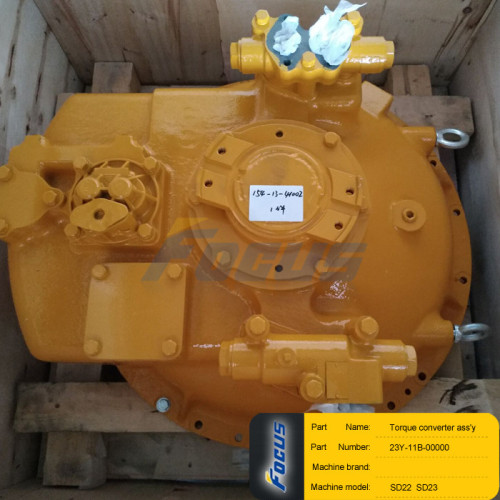

Shantui Dozer Spare Parts SD22 SD22S Torque Converter 23Y-11B-00000
Part Name:Torque Converter
Part Number: 23Y-11B-00000
Machine Model:Shantui Dozer SD22 SD22S

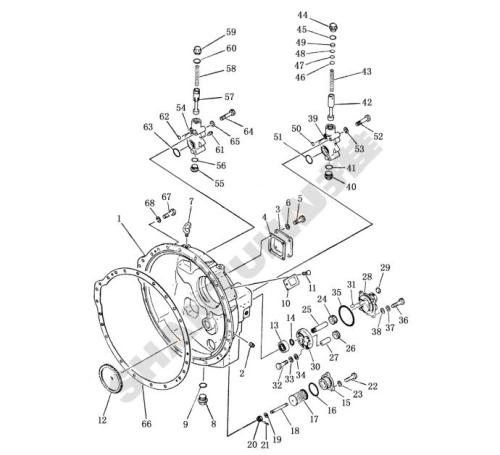

TORQUE CONVERTER HOUSING
| INDEXNO | PART NO. | DESCRIPTION | Q`TY |
| 23Y-11B-00000 | torque converter ass’y | 1 | |
| 1 | 154-13-53110 | housing | 1 |
| 2 | 07042-20415 | plug, taper | 3 |
| 3 | 175-13-23220 | cover | 1 |
| 4 | 175-13-23231 | gasket | 1 |
| 5 | 01010-81225 | bolt | 4 |
| 6 | 01602-21236 | washer, spring | 4 |
| 7 | 04530-11628 | bolt, eye | 2 |
| 8 | 07044-13620 | plug, magnetic | 1 |
| 9 | 07002-43634 | o-ring | 1 |
| 10 | 14Y-11-00038 | plate, name | 1 |
| 11 | 04418-03060 | screw, taping | 4 |
| 12 | 195-13-14111 | gear | 1 |
| 13 | 06030-05206 | bearing | 1 |
| 14 | 04064-03015 | ring, snap | 1 |
| (134-13-13400) | filter ass’y | 1 | |
| 15 | 134-13-13410 | cover | 1 |
| 16 | 07000-62070 | o-ring | 1 |
| 17 | 195-13-13420 | filter | 1 |
| 18 | 134-13-13430 | stud | 1 |
| 19 | 01641-20608 | washer | 1 |
| 20 | 01590-10607 | nut | 1 |
| 21 | 04050-11212 | pin, cotter | 1 |
| 22 | 01010-81230 | bolt | 3 |
| 23 | 01602-21236 | washer, spring | 3 |
| (175-13-23500) | scavenging pump ass’y | 1 | |
| 24、25 | 175-13-23510 | drive gear ass’y | 1 |
| 26、27 | 175-13-23520 | driven gear ass’y | 1 |
| 28 | 175-13-23530 | case ass’y | 1 |
| 29 | 01190-01011 | helisert | 2 |
| 30 | 175-13-23540 | cover | 1 |
| 31 | 04020-00820 | pin, dowel | 2 |
| 32 | 01010-80835 | bolt | 4 |
