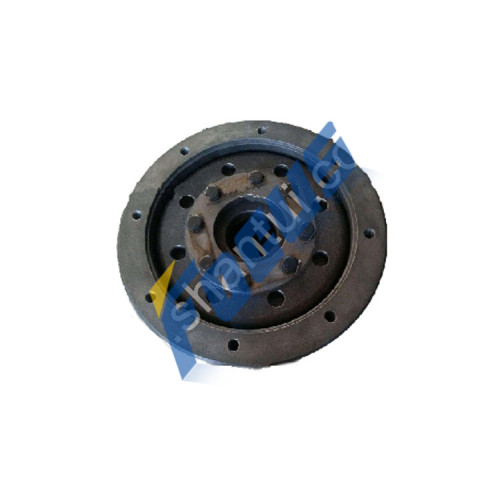

Shantui Bulldozer Spare Parts SD22 SD22S Turbine assembly 154-13-41510
Part Name:Turbine assembly
Part Number: 154-13-41510
Machine Model:Shantui Bulldozer SD22 SD22S

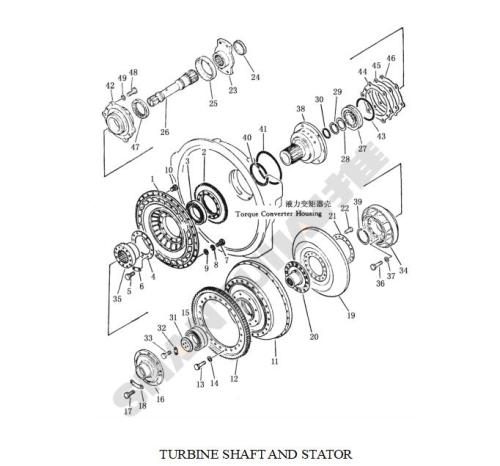

TURBINE SHAFT AND STATOR
|
INDEX NO. |
PART NO. |
DESCRIPTION |
Q`TY |
|
203-1 |
154-13-41123 |
pump |
1 |
|
2 |
154-13-41141 |
gear |
1 |
|
3 |
154-13-41160 |
bearing |
1 |
|
4 |
154-13-41180 |
plate |
1 |
|
5 |
01010-81035 |
bolt |
12 |
|
6 |
154-13-41150 |
plate, lock |
6 |
|
7 |
01010-81035 |
bolt |
30 |
|
8 |
01602-21030 |
washer, spring |
30 |
|
9 |
01643-31032 |
washer |
30 |
|
10 |
07040-11007 |
plug |
2 |
|
|
(154-13-00011) |
case ass’y |
1 |
|
11 |
234-13-11211 |
case |
1 |
|
12 |
175-13-21220 |
gear |
1 |
|
13 |
01010-81230 |
plug |
24 |
|
14 |
01643-31232 |
washer |
24 |
|
15 |
154-13-11240 |
bearing |
1 |
|
16 |
234-13-11250 |
pilot |
1 |
|
17 |
01010-81230 |
plug |
8 |
|
18 |
195-13-11261 |
plate, lock |
4 |
|
19,20,21,22 |
(154-13-41510) |
turbo ass’y |
1 |
|
23,24,25 |
(154-13-41660) |
coupling joint ass’y |
1 |
|
26 |
154-13-41651
|
