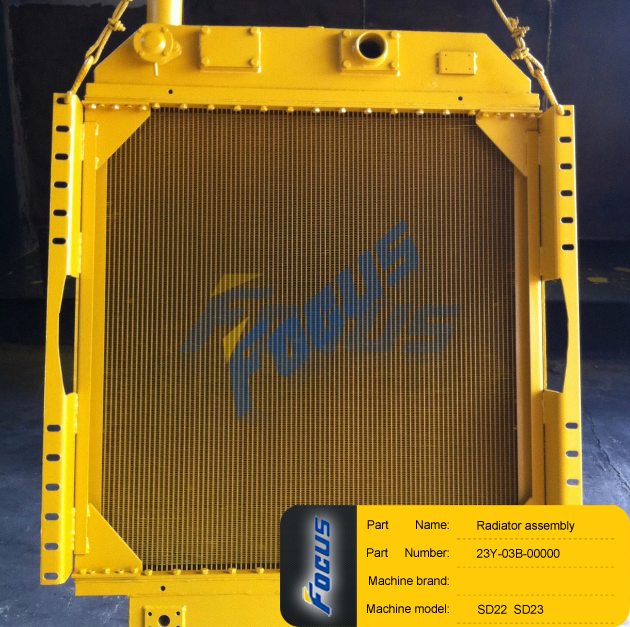

Shantui SD22 SD22E Radiator Assembly 23Y-03B-00000 154-03A-00000
Part Name: Radiator Assembly
Part Number: 23Y-03B-00000 154-03A-00000
Machine Model: SD22 SD22E
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
|

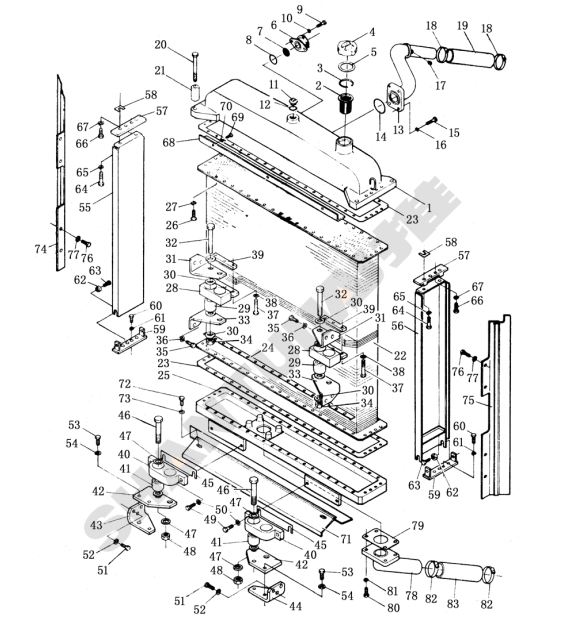

PART NO. |
DESCRIPTION |
Q’ty |
| No. |
SD22 SD22E |
SD22D |
SD22S SD22R |
|
154-03-C1001 |
radiator ass’y |
1 |
|
|
|
22M-03-00000 |
radiator ass’y |
|
1 |
|
|
158-03-A0000 |
radiator ass’y |
|
|
1 |
| 106-1 |
154-03-11117 |
tank, upper |
1 |
|
1 |
|
22M-03-80700 |
tank, upper |
|
1 |
|
| 2 |
07056-00048 |
strainer |
1 |
1 |
1 |
| 3 |
07057-03271 |
ring |
1 |
1 |
1 |
| 4 |
07053-10000 |
cap |
1 |
1 |
1 |
| 5 |
07053-00002 |
gasket |
1 |
1 |
1 |
| 6 |
154-03-11682 |
valve, pressure |
1 |
|
1 |
|
22M-03-81000 |
valve, pressure |
|
1 |
|
| 7 |
175-03-32570 |
screen |
1 |
|
1 |
|
22M-03-80800 |
screen |
|
1 |
|
| 8 |
07000-43045 |
o-ring |
1 |
1 |
1 |
| 9 |
01010-51025 |
bolt |
2 |
2 |
2 |
| 10 |
01602-21030 |
washer |
2 |
2 |
2 |
| 11 |
07040-13618 |
plug |
1 |
1 |
1 |
| 12 |
07002-43634 |
o-ring |
1 |
1 |
1 |
| 13 |
154-03-11565 |
tube ass’y |
1 |
1 |
1 |
| 14 |
07000-42070. |
o-ring |
1 |
1 |
1 |
| 15 |
01010-51240 |
bolt |
4 |
4 |
4 |
| 16 |
01602-21236 |
washer |
4 |
4 |
4 |
| 17 |
07042-30108 |
plug |
1 |
1 |
1 |
| 18 |
07281-00809 |
clamp |
2 |
2 |
2 |
| 19 |
154-03-11574 |
hose |
1 |
1 |
1 |
| 20 |
01011-51640 |
bolt |
4 |
4 |
4 |
| 21 |
154-03-13240 |
spacer |
4 |
4 |
4 |
| 22 |
154-03-21132 |
core |
1 |
|
1 |
|
22M-03-80500 |
core |
|
1 |
|
| 23 |
154-03-11143 |
gasket |
2 |
|
2 |
|
22M-03-80004 |
gasket |
|
2 |
|
| 24 |
154-03-11151 |
plate |
4 |
|
4 |
|
22M-03-80005 |
plate |
|
4 |
|
